Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA735GGU-Z9-BIT TO 13-BIT, DIGITAL, CONTAC |
2,770 |
1+：$3.92000 5+：$3.50400 10+：$3.35100 25+：$3.16760 50+：$3.04260 100+：$2.92800 500+：$2.69748 1000+：$2.61164 |
|
Datasheet | 14-UFQFN | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM, SPI | Clockwise Increase, Counterclockwise Increase, Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | - | - | 14-UTQFN (2x2) |
|
MA702GQ-ZSENSOR ANGLE SMD |
0 |
1+：$4.13000 5+：$3.69200 10+：$3.53200 25+：$3.34040 50+：$3.20940 100+：$3.08940 500+：$2.84784 1000+：$2.75790 |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA730GQ-ZSENSOR ANGLE SMD |
4,958 |
1+：$4.46000 5+：$3.99400 10+：$3.82100 25+：$3.61400 50+：$3.47260 100+：$3.34300 500+：$3.08230 1000+：$2.98520 |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA702GQ-PSENSOR ANGLE SMD |
0 |
1+：$4.44000 5+：$3.97400 10+：$3.80300 25+：$3.59800 50+：$3.45840 100+：$3.33020 |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA732GQ-Z14-BIT, DIGITAL, CONTACTLESS ANG |
0 |
1+：$4.54000 5+：$4.06800 10+：$3.89300 25+：$3.68360 50+：$3.54100 100+：$3.41010 500+：$3.14688 1000+：$3.04882 |
|
Datasheet | 16-VFQFN Exposed Pad | MagAlpha | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|

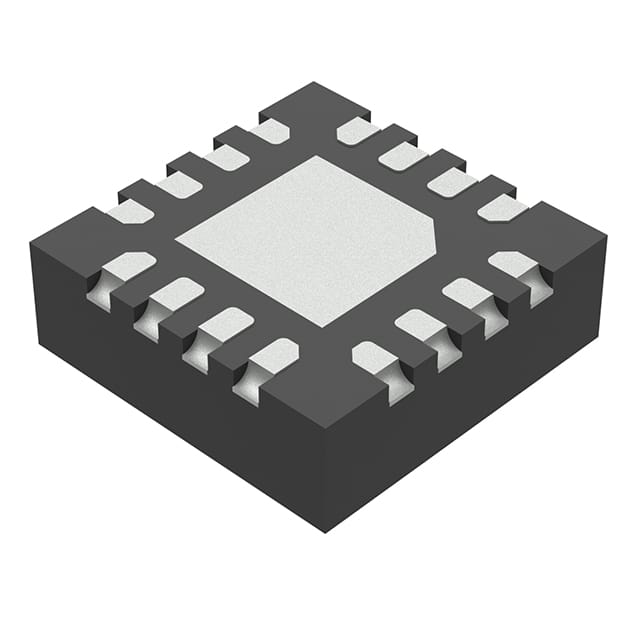

MAQ470GQE-AEC1-Z12-BIT, AUTOMOTIVE ANGLE SENSORW |
3,566 | - |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM, SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount, Wettable Flank | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA330GQ-Z14-BIT, DIGITAL, CONTACTLESS ANG |
4,086 | - |
|
Datasheet | 16-VFQFN Exposed Pad | MagAlpha | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA780GQ-ZLOW-POWER ANGLE SENSOR WITH INTE |
1,975 | - |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA302GQ-ZANGULAR SENSOR |
10,613 | - |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | 16-QFN (3x3) |
|
|
MA734GQ-Z8-BIT TO 12.5-BIT, 3S LOW-LATENC |
2,897 | - |
|
Datasheet | 16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
