Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

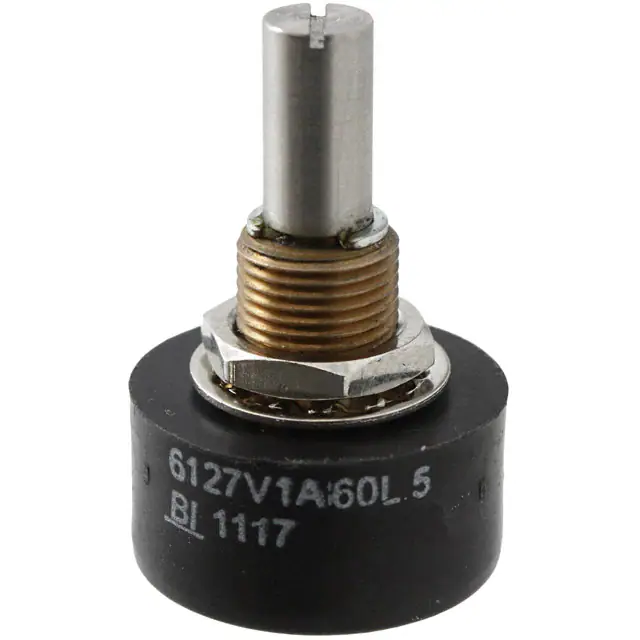

6127V1A60L.5SENSOR ROTARY 60DEG SLDR TURRET |
4,573 | - |
|
Datasheet | Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 60°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

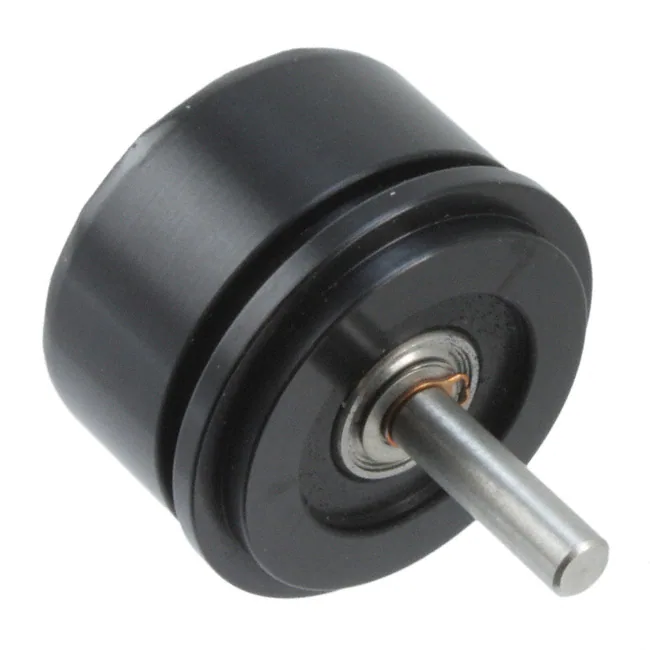

6153V1A90L.5SENSOR ROTARY 360DEG SLDR TURRET |
3,214 | - |
|
Datasheet | Module, Round Shaft | 6150 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
PHS07-V1B10KE1806SENSOR ROTARY 180DEG PC PIN |
2,512 | - |
|
Datasheet | 3-SIP Module | PHS07 | Tray | Obsolete | - | Rotary Position | Resistive | 0° ~ 180°, Continuous | - | Resistive | - | Hole for Shaft | ±2% | - | ±20% | 5V ~ 50V | Through Hole | PC Pin | -10°C ~ 70°C | - | - | - |
|
|
PHS11-1DBR10KE120SENSOR ROTARY 120DEG SLDR TURRET |
3,137 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 120°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE145SENSOR ROTARY 145DEG SLDR TURRET |
4,359 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 145°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE180SENSOR ROTARY 180DEG SLDR TURRET |
3,382 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 180°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE250SENSOR ROTARY 250DEG SLDR TURRET |
2,834 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 250°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE300SENSOR ROTARY 300DEG SLDR TURRET |
3,026 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 300°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE320SENSOR ROTARY 320DEG SLDR TURRET |
1,630 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 320°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE333SENSOR ROTARY 333DEG SLDR TURRET |
2,070 | - |
|
Datasheet | 4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 333°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
