Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS78RBA102SFERNICE TRANSDUCERS |
4,882 | - |
|
Datasheet | Module, Round Shaft | - | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±1% | 1 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
ECS78RBA502SFERNICE TRANSDUCERS |
3,628 | - |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 5 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
981HE0B4WA1F16SENSOR ROTARY 360DEG WIRE LEADS |
3,754 | - |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
34THES2BTA0P22SENSOR ROTARY 3600DEG SLD TURRET |
4,752 | - |
|
Datasheet | Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|

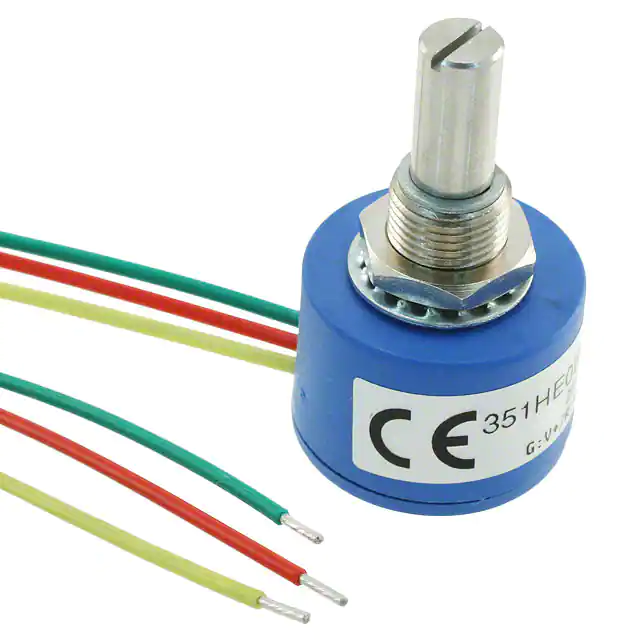

351HE0B4WA1S22SENSOR ROTARY 360DEG WIRE LEADS |
1,621 | - |
|
Datasheet | Module, Slotted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|

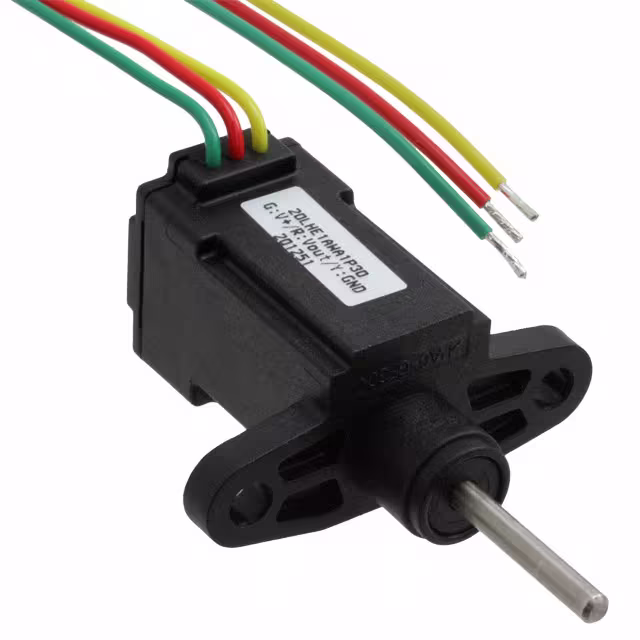

20LHE1AWA1P30SENSOR LINEAR 10.16MM WIRE LEADS |
4,885 | - |
|
Datasheet | Module, Wire Leads | - | Box | Active | - | Linear Position | Hall Effect | - | 0 ~ 10.16mm (0 ~ 0.40") | Analog Voltage | - | Round Shaft | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
UIPMA250I472XCBSENSOR LINEAR 250MM WIRE LEAD |
4,286 | - |
|
Datasheet | Sensor Strip | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 250.00mm (0 ~ 9.84") | Resistive | - | Flexible Membrane - Linear | ±2% | 4.7 kOhms | ±30% | - | Chassis Mount | Wire Leads | -10°C ~ 50°C | - | - | - |
|
UIPMA050I472XCBSENSOR LINEAR 50MM WIRE LEADS |
2,898 | - |
|
Datasheet | Sensor Strip | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 50.00mm (0 ~ 1.97") | Resistive | - | Flexible Membrane - Linear | ±2% | 4.7 kOhms | ±30% | - | Chassis Mount | Wire Leads | -10°C ~ 50°C | - | - | - |
|
|
ECS78RBA103SFERNICE TRANSDUCERS |
1,226 | - |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 10 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
981HE2B1WA1F16SENSOR ROTARY 90DEG WIRE LEADS |
2,856 | - |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
