Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3048L-5-103SENSOR LINEAR 12.7MM WIRE LEADS |
3,505 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
3046L-3-502SENSOR LINEAR 8.89MM WIRE LEADS |
2,311 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 8.89mm (0 ~ 0.35") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
3046L-1-103SENSOR LINEAR 3.81MM WIRE LEADS |
4,613 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 3.81mm (0 ~ 0.15") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|

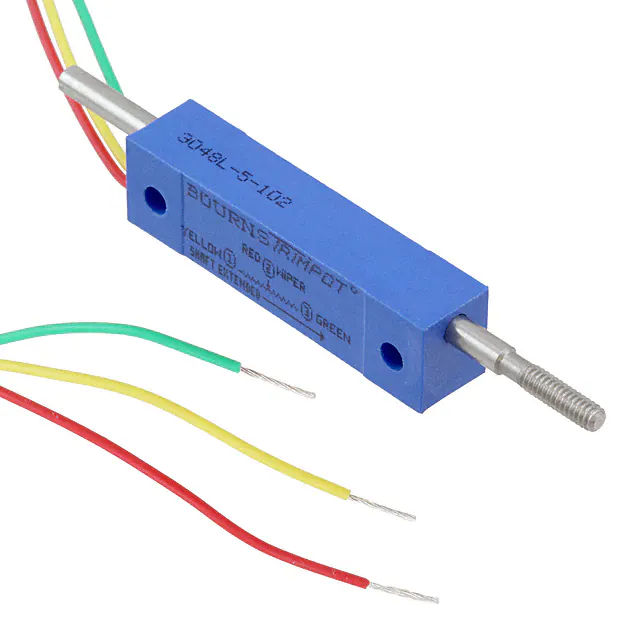

3048L-5-102SENSOR LINEAR 12.7MM WIRE LEADS |
2,872 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±5% | 1 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-2-103SENSOR LINEAR 6.35MM WIRE LEADS |
4,452 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 6.35mm (0 ~ 0.25") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3048L-5-502SENSOR LINEAR 12.7MM WIRE LEADS |
2,644 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-3-203SENSOR LINEAR 8.89MM WIRE LEADS |
4,989 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 8.89mm (0 ~ 0.35") | Resistive | - | Round Shaft | ±5% | 20 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-3-103SENSOR LINEAR 8.89MM WIRE LEADS |
1,018 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 8.89mm (0 ~ 0.35") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3046L-2-503SENSOR LINEAR 6.35MM WIRE LEADS |
2,422 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 6.35mm (0 ~ 0.25") | Resistive | - | Round Shaft | ±5% | 50 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
3048L-2-103SENSOR LINEAR 5.08MM WIRE LEADS |
3,529 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 5.08mm (0 ~ 0.20") | Resistive | - | Round Shaft | ±5% | 10 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
