Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRCH12D78BNP-4R7NCINDUCT ARRAY 2 COIL 4.7UH SMD |
2,499 | - |
|
Datasheet | CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 5.4 A | 2.8 A | 13.2 A | 6.6 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-680MCINDUCT ARRAY 2 COIL 68UH SMD |
1,547 | - |
|
Datasheet | CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2 A | 940 mA | 3.9 A | 1.95 A | 133mOhm Max | 532mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
CDRCH12D78BNP-6R8NCINDUCT ARRAY 2 COIL 6.8UH SMD |
3,236 | - |
|
Datasheet | CDRCH12D78B | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 5 A | 2.6 A | 12 A | 6 A | 23mOhm Max | 92mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|

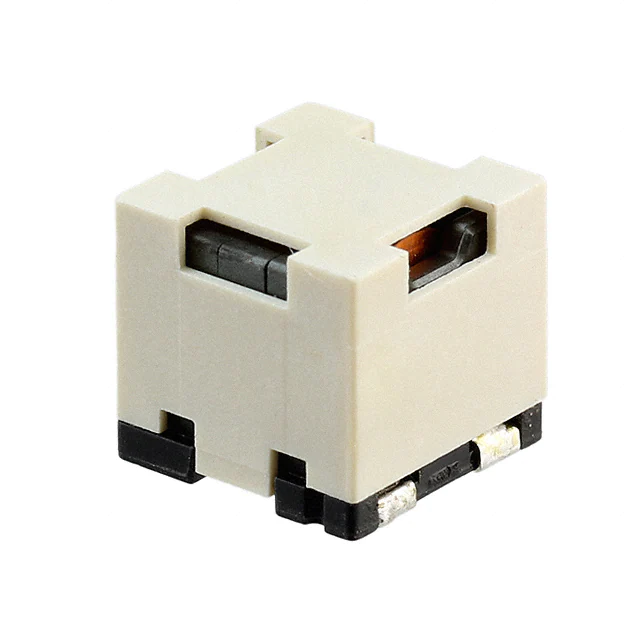

CDEPI106NP-220-SINDUCT ARRAY 2 COIL 11UH SMD |
4,468 | - |
|
Datasheet | CDEPI106 | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | - | 16 A | 2 A | 4.4 A | 2.2 A | 11.5mOhm | 46mOhm | Shielded | - | -40°C ~ 105°C | Surface Mount | 0.433" L x 0.433" W (11.00mm x 11.00mm) | 0.413" (10.50mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
