Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448841100INDUCT ARRAY 2 COIL 10UH SMD |
7,768 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.2 A | - | 1.5 A | - | 300mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841470INDUCT ARRAY 2 COIL 47UH SMD |
1,584 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 600 mA | - | 700 mA | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
744870680INDUCT ARRAY 2 COIL 68UH SMD |
1,782 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 136 µH | ±20% | 1.35 A | 675 mA | 3 A | 1.5 A | 215mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
7448709220INDUCT ARRAY 2 COIL 22UH SMD |
423 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.5 A | 1.25 A | 5 A | 2.5 A | 80mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|

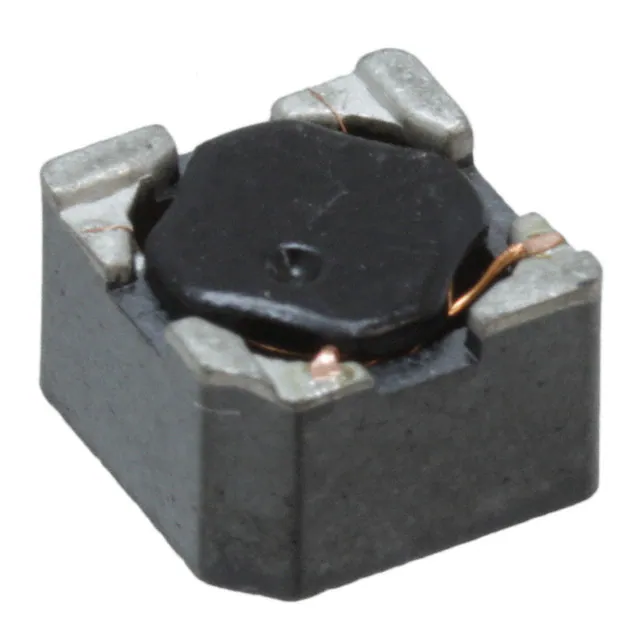

74488540250INDUCT ARRAY 2 COIL 25UH SMD |
1,558 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540070INDUCT ARRAY 2 COIL 7.5UH SMD |
364 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | 1.9 A | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540120INDUCT ARRAY 2 COIL 13UH SMD |
287 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
74485540101INDUCT ARRAY 2 COIL 10UH SMD |
782 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 13 A | - | 13.5 A | - | 13.9mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
74485540220INDUCT ARRAY 2 COIL 2.2UH SMD |
3,499 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 18 A | 9 A | 35 A | 17.5 A | 6.72mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540170INDUCT ARRAY 2 COIL 1.7UH SMD |
303 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 1.7 µH | 6.8 µH | ±20% | 21 A | 10.5 A | 39 A | 19.5 A | 5.28mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
