Arrays, Signal Transformers
Browse available Arrays, Signal Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0552.822NLINDUCT ARRAY 2 COIL 8.1UH SMD |
4,712 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 8.1 µH | 32 µH | ±20% | 6.5 A | 3.3 A | 7.8 A | 3.9 A | 18mOhm Max | 66mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
P0183NLINDUCT ARRAY 2 COIL 91UH SMD |
1,953 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 91 µH | 364 µH | ±10% | 1.2 A | 640 mA | - | - | 324mOhm Max | 1.272Ohm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
DJ-503INDUCT ARRAY 2 COIL 25UH T/H |
2,694 | - |
|
Datasheet | DJ | Radial | Tray | Active | 2 | 25 µH | 100 µH | ±15% | 6 A | 3 A | - | - | 13mOhm Max | 52mOhm Max | Unshielded | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.531" W (26.50mm x 13.50mm) | 1.161" (29.50mm) |
|
|
HM78D-1210100MLFTRINDUCT ARRAY 2 COIL 10UH SMD |
1,803 | - |
|
Datasheet | HM78D | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 10 µH | 41.12 µH | ±20% | 3.2 A | 1.6 A | 11.75 A | 5.85 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0177NLINDUCT ARRAY 2 COIL 10.4UH SMD |
4,714 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 10.4 µH | 41.7 µH | ±10% | 3.8 A | 1.89 A | - | - | 29.8mOhm Max | 120mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTCTXF33-2P32.67 UH 20% SMD TOROID CMC |
3,652 | - |
|
Datasheet | CTCTXF-2P | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 32.67 µH | 130.7 µH | ±20% | 1.3 A | 650 mA | - | - | 126mOhm Max | 503mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.272" (6.90mm) |
|

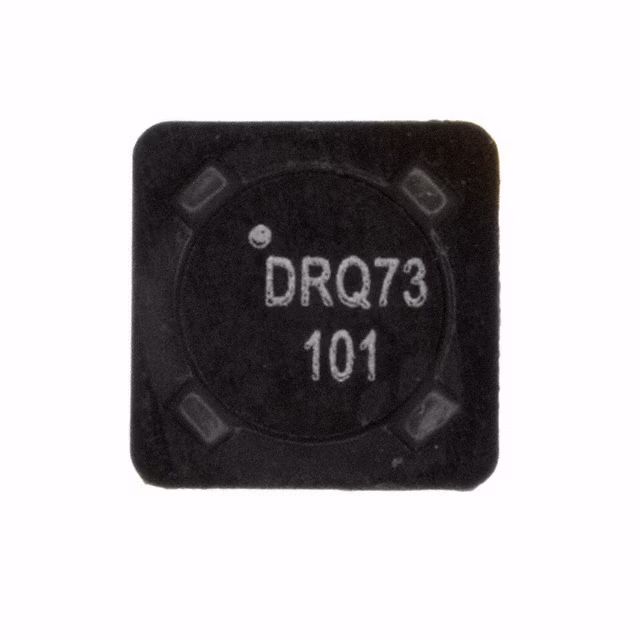

DRQ73-101-RINDUCT ARRAY 2 COIL 101.4UH SMD |
4,681 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 527mOhm | 2.11Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1280-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
4,265 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
7448709100INDUCT ARRAY 2 COIL 10UH SMD |
2,149 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
PF0553.223NLINDUCT ARRAY 2 COIL 23UH SMD |
3,120 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 23 µH | 92 µH | ±20% | 3.9 A | 2 A | 7.6 A | 3.8 A | 39mOhm Max | 160mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
SRF1260-330MINDUCT ARRAY 2 COIL 33UH SMD |
2,280 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 61.8mOhm Max | 256mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
PM3604-10-RCINDUCT ARRAY 2 COIL 10UH SMD |
1,608 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
SRF1280A-1R5YINDUCT ARRAY 2 COIL 1.5UH SMD |
4,198 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | 6 µH | ±30% | 13.5 A | 6.77 A | 31.1 A | 15.6 A | 7.6mOhm Max | 30.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHCL4040DZER4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
3,167 | - |
|
Datasheet | IHCL | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
SDQ12-6R2-RINDUCT ARRAY 2 COIL 6.25UH SMD |
2,242 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.25 µH | 25 µH | ±20% | 1.02 A | 512 mA | 1.22 A | 608 mA | 238.7mOhm | 954.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
SDQ25-101-RINDUCT ARRAY 2 COIL 98.57UH SMD |
4,711 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 98.57 µH | 394.3 µH | ±20% | 499 mA | 249 mA | 405 mA | 203 mA | 1Ohm | 4.02Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX50-4A-RINDUCT ARRAY 2 COIL 50.11UH SMD |
3,826 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.11 µH | 200.4 µH | ±25% | 2.05 A | 1.03 A | 1.88 A | 940 mA | 104mOhm Max | 418mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

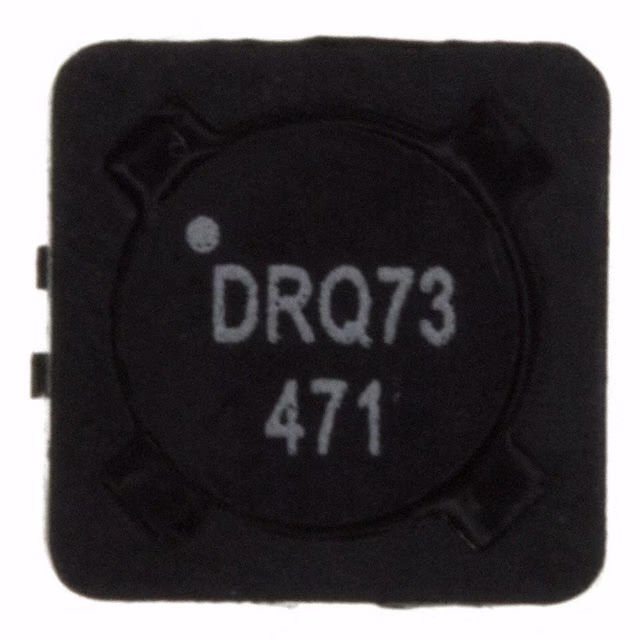

DRQ73-471-RINDUCT ARRAY 2 COIL 465.8UH SMD |
4,001 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 465.8 µH | 1.863 mH | ±20% | 350 mA | 173 mA | 370 mA | 180 mA | 2.36Ohm | 9.44Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703A-8R2MINDUCT ARRAY 2 COIL 8.2UH SMD |
2,965 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 34.1 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 77.2mOhm Max | 306mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-680MINDUCT ARRAY 2 COIL 68UH SMD |
3,526 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 289.3 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 507mOhm Max | 1.92Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
Arrays, Signal Transformers FAQ
Common questions about selecting, comparing and sourcing Arrays, Signal Transformers components through Winsun (HK) Electronics.
What should I check when selecting Arrays, Signal Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Arrays, Signal Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Arrays, Signal Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
