Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF1260-100MINDUCT ARRAY 2 COIL 10UH SMD |
2,454 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 5.35 A | 2.67 A | 7.17 A | 3.59 A | 24.6mOhm Max | 93.4mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1260A-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
1,667 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 10.9 A | 5.46 A | 15 A | 7.5 A | 8.5mOhm Max | 33.3mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1280-220MINDUCT ARRAY 2 COIL 22UH SMD |
5,402 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 4 A | 2 A | 7.57 A | 3.78 A | 50.3mOhm Max | 192mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-470MINDUCT ARRAY 2 COIL 47UH SMD |
3,671 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.95 A | 1.47 A | 5.28 A | 2.64 A | 89.8mOhm Max | 353mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-680MINDUCT ARRAY 2 COIL 68UH SMD |
1,105 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.44 A | 1.22 A | 4.44 A | 2.22 A | 123mOhm Max | 469mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-4R7YINDUCT ARRAY 2 COIL 4.7UH SMD |
4,064 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 8.25 A | 4.13 A | 16.5 A | 8.24 A | 13.5mOhm Max | 50mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

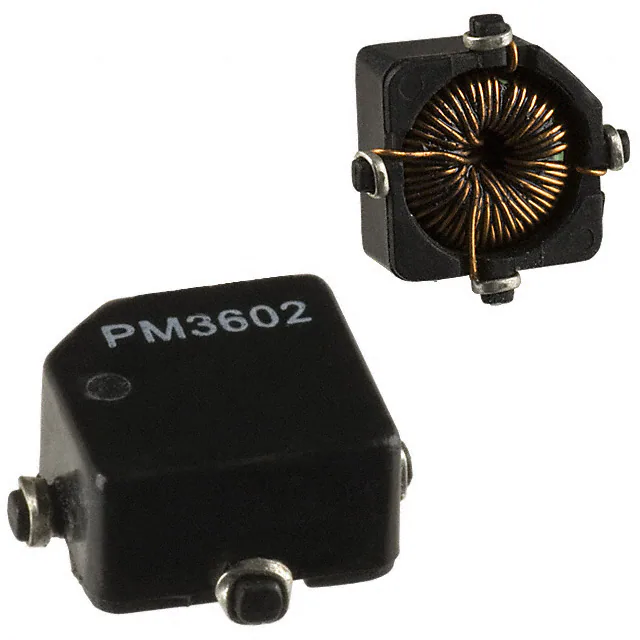

PM3602-300-RCINDUCT ARRAY 2 COIL 300UH SMD |
4,799 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±20% | 320 mA | 160 mA | - | - | 1.31Ohm Max | 5.24Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
PM3604-20-RCINDUCT ARRAY 2 COIL 20UH SMD |
681 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 20 µH | 80 µH | ±20% | 2.02 A | 1.01 A | - | - | 49mOhm Max | 200mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
SRF1280A-100MINDUCT ARRAY 2 COIL 10UH SMD |
1,209 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 6.04 A | 3.02 A | 11.2 A | 5.6 A | 24.1mOhm Max | 92.1mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-471MINDUCT ARRAY 2 COIL 470UH SMD |
1,167 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 µH | 1.88 mH | ±20% | 850 mA | 427 mA | 1.68 A | 838 mA | 865mOhm Max | 3.3Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
