Arrays, Signal Transformers
Browse available Arrays, Signal Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ125-8R2-RINDUCT ARRAY 2 COIL 8.048UH SMD |
1,591 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.048 µH | 32.19 µH | ±20% | 5.54 A | 2.77 A | 7.86 A | 3.93 A | 17.6mOhm | 70.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-4R7-RINDUCT ARRAY 2 COIL 5.274UH SMD |
729 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.274 µH | 21.1 µH | ±20% | 7.18 A | 3.59 A | 9.71 A | 4.86 A | 10.5mOhm | 42mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-150-RINDUCT ARRAY 2 COIL 15.35UH SMD |
502 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.35 µH | 61.4 µH | ±20% | 4.27 A | 2.13 A | 5.69 A | 2.85 A | 29.8mOhm | 120mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-101-RINDUCT ARRAY 2 COIL 102.7UH SMD |
256 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 102.7 µH | 410.8 µH | ±20% | 1.78 A | 892 mA | 2.2 A | 1.1 A | 170mOhm | 682mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0552.683NLINDUCT ARRAY 2 COIL 68UH SMD |
1,010 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 68 µH | 270 µH | ±20% | 2.8 A | 1.4 A | 2.7 A | 1.4 A | 100mOhm Max | 400mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

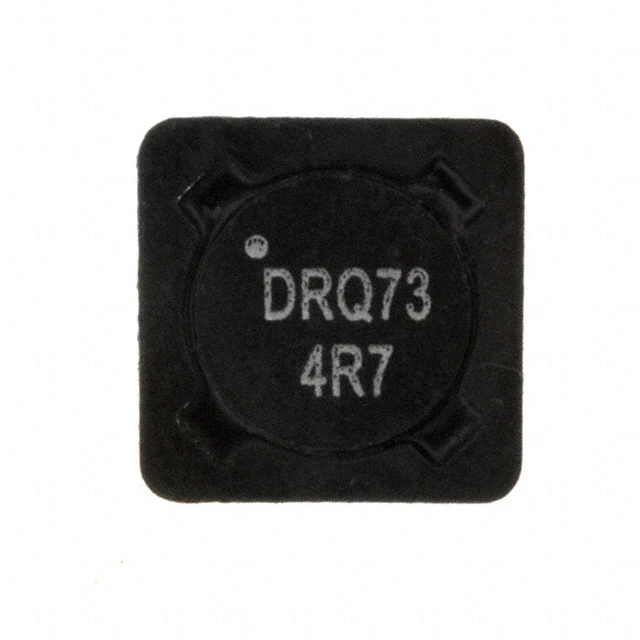

DRQ73-4R7-RINDUCT ARRAY 2 COIL 4.422UH SMD |
18,393 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.422 µH | 17.69 µH | ±20% | 3.09 A | 1.55 A | 3.78 A | 1.89 A | 29.7mOhm | 118.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1260-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
7,910 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 10.9 A | 5.46 A | 15 A | 7.5 A | 8.5mOhm Max | 33.3mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-471MINDUCT ARRAY 2 COIL 470UH SMD |
1,210 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 µH | 1.88 mH | ±20% | 870 mA | 434 mA | 1.02 A | 510 mA | 830mOhm Max | 3.197Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-102MINDUCT ARRAY 2 COIL 1MH SMD |
1,191 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 mH | 4 mH | ±20% | 570 mA | 283 mA | 700 mA | 350 mA | 1.854Ohm Max | 6.782Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-331MINDUCT ARRAY 2 COIL 330UH SMD |
1,065 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 1.06 A | 530 mA | 1.22 A | 610 mA | 574mOhm Max | 2.29Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-681MINDUCT ARRAY 2 COIL 680UH SMD |
992 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 µH | 2.72 mH | ±20% | 700 mA | 350 mA | 850 mA | 425 mA | 1.212Ohm Max | 4.635Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-820MINDUCT ARRAY 2 COIL 82UH SMD |
783 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 2.05 A | 1.03 A | 2.39 A | 1.2 A | 150mOhm Max | 568mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-221MINDUCT ARRAY 2 COIL 220UH SMD |
746 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 220 µH | 880 µH | ±20% | 1.19 A | 594 mA | 1.51 A | 755 mA | 354mOhm Max | 1.416Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-151MINDUCT ARRAY 2 COIL 150UH SMD |
515 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 1.48 A | 739 mA | 1.81 A | 905 mA | 254mOhm Max | 972mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ125-221-RINDUCT ARRAY 2 COIL 216.8UH SMD |
265 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 216.8 µH | 867.2 µH | ±20% | 1.19 A | 594 mA | 1.51 A | 755 mA | 384mOhm | 1.54Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRF1260-680MINDUCT ARRAY 2 COIL 68UH SMD |
141 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 117mOhm Max | 444mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-1R0YINDUCT ARRAY 2 COIL 1UH SMD |
334 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | 4 µH | ±30% | 15 A | 7.51 A | 23.6 A | 11.8 A | 6.2mOhm Max | 26mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ125-6R8-RINDUCT ARRAY 2 COIL 6.588UH SMD |
2,601 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.588 µH | 26.35 µH | ±20% | 6.64 A | 3.32 A | 8.68 A | 4.34 A | 12.3mOhm | 49.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRAQ127-150-RINDUCT ARRAY 2 COIL 14.9UH SMD |
649 | - |
|
Datasheet | DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.9 µH | 59.6 µH | ±25% | 4.83 A | 2.41 A | 7.23 A | 3.61 A | 32mOhm Max | 128mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
DRAQ127-100-RINDUCT ARRAY 2 COIL 9.63UH SMD |
2,118 | - |
|
Datasheet | DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.63 µH | 38.5 µH | ±25% | 6.02 A | 3.01 A | 8.96 A | 4.48 A | 22mOhm Max | 89mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
Arrays, Signal Transformers FAQ
Common questions about selecting, comparing and sourcing Arrays, Signal Transformers components through Winsun (HK) Electronics.
What should I check when selecting Arrays, Signal Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Arrays, Signal Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Arrays, Signal Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
