Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAQ75-330-RIND DRAQ75 33UH SMT SHLD |
4,064 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.8 µH | 131.39 µH | ±25% | 1.88 A | 940 mA | - | - | 177mOhm Max | 708mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-220-RIND DRAQ75 22UH SMT SHLD |
3,073 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22.1 µH | 88.52 µH | ±25% | 2.33 A | 1.16 A | - | - | 116mOhm Max | 462mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-6R4-RIND DRAQ75 6.4UH SMT SHLD |
2,175 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.41 µH | 24.95 µH | ±25% | 4.14 A | 2.07 A | - | - | 37mOhm Max | 146mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-170-RIND DRAQ75 17UH SMT SHLD |
4,658 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 18.7 µH | 68.55 µH | ±25% | 2.48 A | 1.24 A | - | - | 102mOhm Max | 408mOhm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRAQ75-101-RIND DRAQ75 100UH SMT SHLD |
3,763 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 98.3 µH | 393.23 µH | ±25% | 1.14 A | 570 mA | - | - | 478mOhm Max | 1.91Ohm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
DRQ73-1R5-RINDUCT ARRAY 2 COIL 1.482UH SMD |
2,192 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.482 µH | 5.928 µH | ±20% | 4.64 A | 2.32 A | 6.52 A | 3.26 A | 13.2mOhm | 52.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

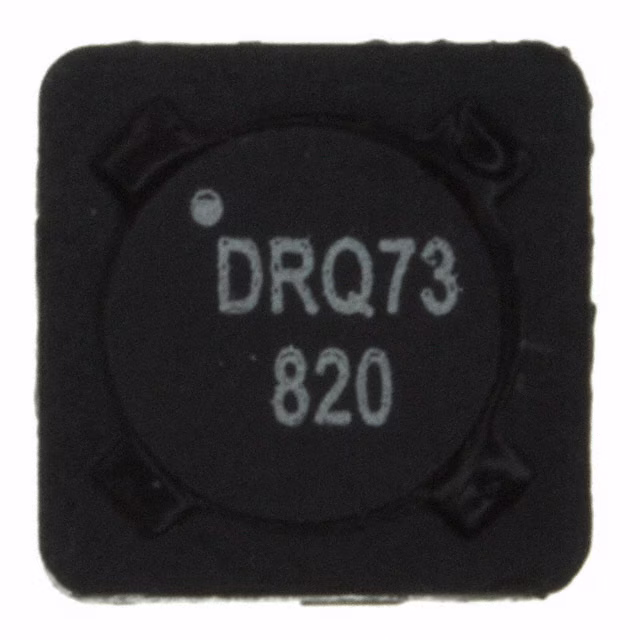

DRQ73-820-RINDUCT ARRAY 2 COIL 80.37UH SMD |
1,265 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 80.37 µH | 321.5 µH | ±20% | 860 mA | 430 mA | 890 mA | 440 mA | 384mOhm | 1.54Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-821-RINDUCT ARRAY 2 COIL 821.7UH SMD |
2,749 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 821.7 µH | 3.287 mH | ±20% | 270 mA | 134 mA | 280 mA | 140 mA | 3.93Ohm | 15.72Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-8R2-RINDUCT ARRAY 2 COIL 8.93UH SMD |
4,951 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.93 µH | 35.72 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 59.2mOhm | 236.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ74-1R5-RINDUCT ARRAY 2 COIL 1.422UH SMD |
3,667 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.422 µH | 5.688 µH | ±20% | 4.96 A | 2.48 A | 8.35 A | 4.17 A | 11.5mOhm | 46.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
