Balun
Browse available Balun part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0900BL15C0050001EBALUN 800MHZ-1GHZ 50/50 0805 |
152,551 | - |
|
Datasheet | 0900 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 50Ohm | 180° ±10° | 1.2dB | 9.5dB | Surface Mount |
|
BD3150N50100AHFBALUN 3.1GHZ-5GHZ 50/100 0404 |
23,059 | - |
|
Datasheet | Xinger® | 0404 (1010 Metric) | Tape & Reel (TR) | Active | 3.1GHz ~ 5GHz | 50 / 100Ohm | 3° | 0.9dB | 13dB | Surface Mount |
|
|
BD4859N50100AHFBALUN 4.8GHZ-5.9GHZ 50/100 0404 |
5,022 | - |
|
Datasheet | Xinger® | 0404 (1010 Metric) | Tape & Reel (TR) | Active | 4.8GHz ~ 5.9GHz | 50 / 100Ohm | 3° | 0.6dB | 15dB | Surface Mount |
|
|
2450BM14A0002001TBALUN 2.4GHZ-2.5GHZ 0603 |
245,419 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 160° ±15° | 2.0dB | 9.5dB | Surface Mount |
|
|
2450BM15A0015001EBALUN 2.4GHZ-2.5GHZ 0805 |
205,652 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
.jpg "BD1222J50200AHF")
|
BD1222J50200AHFBALUN 1.2GHZ-2.2GHZ 50/200 0805 |
5,564 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.2GHz ~ 2.2GHz | 50 / 200Ohm | 2° | 0.4dB | 18dB | Surface Mount |
|
|
BD1631J50100AHFBALUN 1.6GHZ-3.1GHZ 50/100 0805 |
473 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.6GHz ~ 3.1GHz | 50 / 100Ohm | 2.3° | 1.0dB | 10dB | Surface Mount |
|
|
0896BM15A0001001EBALUN 863MHZ-928MHZ 0805 |
223,160 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 863MHz ~ 928MHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|
|
0896FB15A0100001EBALUN 863MHZ-928MHZ 50/100 0805 |
60,351 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 863MHz ~ 928MHz | 50 / 100Ohm | 180° ±15° | 1.5dB | 11.7dB | Surface Mount |
|
|
0900PC15J0013001EBALUN 868-928MHZ 0805 10 PC PAD |
75,122 | - |
|
Datasheet | - | 0805 (2012 Metric), 10 PC Pad | Tape & Reel (TR) | Active | 868MHz ~ 928MHz | - | 180° ±15° | 2.0dB | 9.5dB | Surface Mount |
|
|
2450FB15L0001001EBALUN 2.4GHZ-2.5GHZ 0805 |
2,431 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|

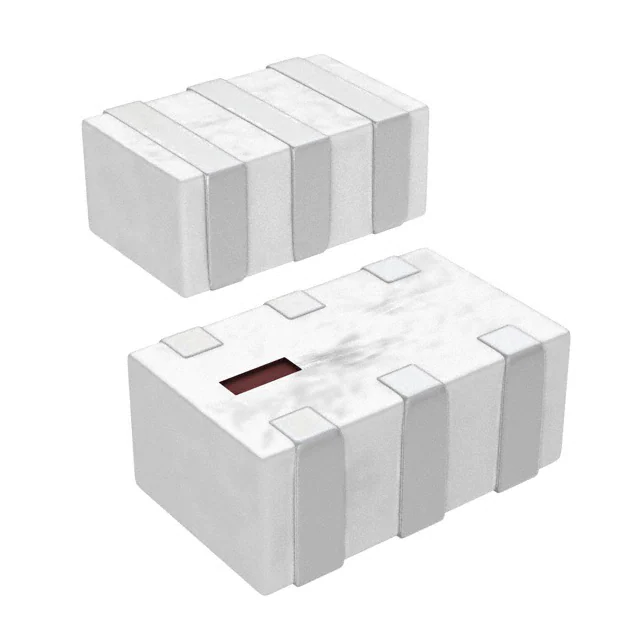

748421245BALUN 2.4GHZ-2.5GHZ 50/100 0805 |
1,490 | - |
|
Datasheet | WE-BAL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | - | Surface Mount |
|
|
BD0826J50200AHFBALUN 800MHZ-2.6GHZ 50/200 0805 |
13,646 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 2.6GHz | 50 / 200Ohm | 3° | 1.5dB | 8.5dB | Surface Mount |
|
|
B0310J50100AHFBALUN 300MHZ-1GHZ 50/100 0805 |
29,998 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 300MHz ~ 1GHz | 50 / 100Ohm | 38° | 1.0dB | 8.1dB | Surface Mount |
|
|
B0322J5050AHFBALUN 300MHZ-2.2GHZ 50/50 0805 |
28,081 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 300MHz ~ 2.2GHz | 50 / 50Ohm | 17° | 1.6dB | 12.2dB | Surface Mount |
|
|
B0430J50100AHFBALUN 400MHZ-3000MHZ 50/100 0805 |
11,633 | - |
|
Datasheet | Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 400MHz ~ 2.5GHz, 2.5Ghz ~ 3GHz | 50 / 100Ohm | 7° | 4.0dB | 7dB, 8.4dB | Surface Mount |
|
NCS2-33+1:2 LTCC TRANSFORMER, 1500 - 310 |
21,432 | - |
|
Datasheet | - | 6-SMD, No Lead | Tape & Reel (TR) | Active | 1.5GHz ~ 3.1GHz | 1:2 | 5° | 1.0dB | 14.72dB | Surface Mount |
|
NCS1.5-232+1:1.5 LTCC TRANSFORMER, 400 - 23 |
3,916 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 400MHz ~ 2.3GHz | 1:1.5 | 8° | 1.6dB | 11.76dB | Surface Mount |
|
|
NCS1-332+1:1 LTCC TRANSFORMER, 700 - 3300 |
3,447 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 700MHz ~ 3.3GHz | 50 / 50Ohm | 8° | 1.8dB | 12.45dB | Surface Mount |
|
|
NCS2-232+1:2 LTCC TRANSFORMER, 900 - 2300 |
3,256 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 900MHz ~ 2.3GHz | 1:2 | 8° | 1.6dB | 11.21dB | Surface Mount |
Balun FAQ
Common questions about selecting, comparing and sourcing Balun components through Winsun (HK) Electronics.
What should I check when selecting Balun components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Balun part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Balun parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Balun components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
