Balun
Use the filters and product table below to compare Balun components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BALF-WL-00D3SIGNAL CONDITIONING BALUN,FILTER |
4,930 | - |
|
Datasheet | - | 15-WFBGA, CSPBGA | Tape & Reel (TR) | Active | 862MHz ~ 928MHz | - | 4° | 1.15dB | 14dB | Surface Mount |
|
BAL-CW1250D3BALUN 2.4GHZ-2.5GHZ 5UFBGA FCBGA |
4,904 | - |
|
Datasheet | - | 5-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 10° | 0.97dB | 21dB | Surface Mount |
|
DLPF-GP-01D3BALUN 2.4-2.5GHZ 100/100 16SMD |
4,999 | - |
|
Datasheet | - | 16-SMD | Tape & Reel (TR) | Obsolete | 2.4GHz ~ 2.5GHz | 100 / 100Ohm | - | 1.8dB | -16dB | Surface Mount |
|
BAL-2690D3UBALUN 2.402GHZ-2.48GHZ 4WFBGA |
4,770 | - |
|
Datasheet | - | 4-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | 2.402GHz ~ 2.48GHz | 50 / -Ohm | 10° | 1.1dB | 14dB | Surface Mount |
|

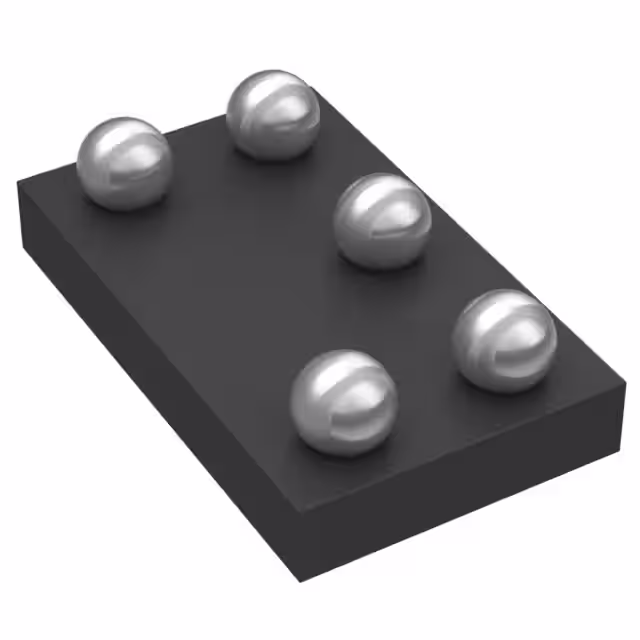

BALF-NRF01J5BALUN 2.4GHZ-2.54GHZ 5XFBGA |
4,922 | - |
|
Datasheet | - | 5-XFBGA, FCBGA | Tape & Reel (TR) | Obsolete | 2.4GHz ~ 2.54GHz | - | 7° | 2.4dB | 9dB | Surface Mount |
|
BAL-CC25-01D3BALUN 2.379GHZ-2.507GHZ 4UFBGA |
1,593 | - |
|
Datasheet | - | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | 2.379GHz ~ 2.507GHz | 50 / -Ohm | 14° | 0.66dB | 19dB | Surface Mount |
|
BALF-112X-01D3BALUN 868MHZ-928MHZ 50/50 8UFBGA |
5,717 | - |
|
Datasheet | - | 8-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | 868MHz ~ 928MHz | 50 / 50Ohm | - | 2.3dB | 8dB | Surface Mount |
|
BALF-NRG-02J550 OHM ULTRA THIN BALUN WITH |
3,789 | - |
|
Datasheet | - | 4-XFBGA, FCBGA | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 4.5° | 1.65dB | 26dB | Surface Mount |
|
BAL-WILC10-01D3BALUN 2.4GHZ-2.5GHZ 50/50 OHM |
1,612 | - |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | - | 0.65dB | -17dB | Surface Mount |
|
BALF-CC26-05D3BALUN 2.4GHZ-2.5GHZ 50/50 5UFBGA |
4,079 | - |
|
Datasheet | - | 5-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | - | 1.2dB | -23dB | Surface Mount |
Balun FAQ
Common questions about filtering, comparing and sourcing Balun components.
How can I narrow the Balun selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Balun part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
