Bipolar RF Transistors
Browse available Bipolar RF Transistors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1090MPRF TRANS NPN 65V 1.15GHZ 55FW-1 |
5,802 | - |
|
Datasheet | - | 55FW-1 | Bulk | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 8.08dB ~ 8.5dB | 250W | 15 @ 500mA, 5V | 6.5A | 200°C (TJ) | - | - | Chassis Mount | 55FW-1 |
|
|
MS2201RF TRANS NPN 45V 1.15GHZ M220 |
3,007 | - |
|
Datasheet | - | M220 | Bulk | Obsolete | NPN | 45V | 1.025GHz ~ 1.15GHz | - | 9dB | 10W | 0.95 @ 10mA, 5V | 250mA | 200°C (TJ) | - | - | Chassis Mount | M220 |
|

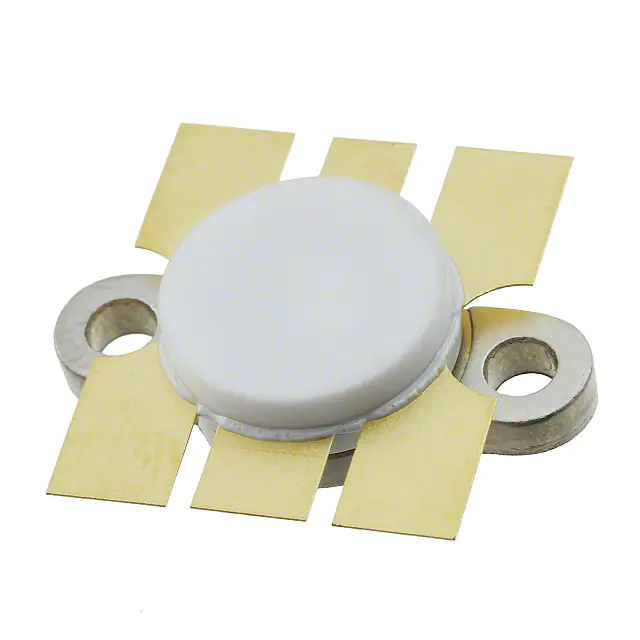

MRF317TRANS RF NPN 35V 12A 316-01 |
3,627 | - |
|
Datasheet | - | 316-01 | Tray | Active | NPN | 35V | - | - | 10dB | 100W | 10 @ 5A, 5V | 12A | - | - | - | Chassis Mount | 316-01, STYLE 1 |
|
MRF587TRANS RF NPN 17A 200MA 244A-01 |
7,117 | - |
|
Datasheet | - | 244A-01 | Tray | Active | NPN | 17V | 5.5GHz | 3dB @ 0.5GHz | 13dB | - | 50 @ 50mA, 5V | 200mA | 200°C (TJ) | - | - | Stud Mount | 244A-01, STYLE 1 |
|
MRF323TRANS RF NPN 33V 1.1A 244-04 |
6,702 | - |
|
Datasheet | - | 244-04 | Tray | Active | NPN | 33V | - | - | 11dB | 20W | 20 @ 1A, 5V | 2.2A | - | - | - | Chassis Mount | 244-04, STYLE 1 |
|
MRF392RF TRANS 2NPN EMITTR 30V 744A-01 |
2,160 | - |
|
Datasheet | - | 744A-01 | Tray | Active | 2 NPN (Dual) Common Emitter | 30V | - | - | 10dB | 125W | 40 @ 1A, 5V | 16A | 200°C (TJ) | - | - | Chassis Mount | 744A-01, Style 1 |
|
|
1035MPRF TRANS NPN 65V 1.15GHZ 55FW-1 |
4,693 | - |
|
Datasheet | - | 55FW-1 | Bulk | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 10dB ~ 10.5dB | 125W | 20 @ 100mA, 5V | 2.5A | 200°C (TJ) | - | - | Chassis Mount | 55FW-1 |
|
MRF421TRANS RF NPN 20V 20A 211-11 |
6,987 | - |
|
Datasheet | - | 211-11, Style 2 | Tray | Active | NPN | 20V | - | - | 12dB | 100W | 10 @ 5A, 5V | 20A | - | - | - | Chassis Mount | 211-11, Style 2 |
|
|
TPR175RF TRANS NPN 55V 1.09GHZ 55CX |
2,855 | - |
|
Datasheet | - | 55CX | Bulk | Obsolete | NPN | 55V | 1.03GHz ~ 1.09GHz | - | 8dB ~ 9dB | 290W | 10 @ 20mA, 5V | 9A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
SD1728RF TRANS NPN 55V M177 |
7,316 | - |
|
Datasheet | - | M177 | Box | Obsolete | NPN | 55V | - | - | 15dB ~ 17dB | 330W | 23 @ 10A, 6V | 40A | 200°C (TJ) | - | - | Surface Mount | M177 |
|
|
PH1617-2TRANSISTOR,BIPOLAR,WLESS,2W,1.6- |
2,017 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 65V | 1.7GHz | - | 10dB | 13.5W | - | 2A | 200°C | - | - | Chassis Mount | - |
|
|
2307RF TRANS NPN 42V 2.3GHZ 55BT |
2,134 | - |
|
Datasheet | - | 55BT | Bulk | Obsolete | NPN | 42V | 2.3GHz | - | 8dB | 20.5W | 10 @ 500mA, 5V | 1A | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
23A025RF TRANS NPN 22V 3.7GHZ 55BT |
2,621 | - |
|
Datasheet | - | 55BT | Bulk | Obsolete | NPN | 22V | 3.7GHz | - | 6dB ~ 6.3dB | 9W | 20 @ 420mA, 5V | 1.2A | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
0912-7RF TRANS NPN 60V 1.215GHZ 55CX |
4,705 | - |
|
Datasheet | - | 55CX | Bulk | Obsolete | NPN | 60V | 960MHz ~ 1.215GHz | - | 8.5dB | 50W | 10 @ 100mA, 5V | 1A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
|
2304RF TRANS NPN 45V 2.3GHZ 55BT |
5,661 | - |
|
Datasheet | - | 55BT | Bulk | Obsolete | NPN | 45V | 2.3GHz | - | 8dB | 10.2W | 10 @ 300mA, 5V | 600mA | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
0912-45RF TRANS NPN 60V 1.215GHZ 55CT |
4,191 | - |
|
Datasheet | - | 55CT | Bulk | Obsolete | NPN | 60V | 960MHz ~ 1.215GHz | - | 8dB ~ 9dB | 225W | 10 @ 300mA, 5V | 4.5A | 200°C (TJ) | - | - | Chassis Mount | 55CT |
|
MRF1004MBTRANS NPN 4W 960MHZ-1215MHZ |
9,973 | - |
|
Datasheet | - | 332A-03 | Tray | Active | NPN | 20V | - | - | 11dB | 4W | 10 @ 75mA, 5V | 250mA | - | - | - | Chassis Mount | 332A-03, Style 1 |
|
MRF10005TRANS 5W 960MHZ-1215MHZ |
3,290 | - |
|
Datasheet | - | 336E-02 | Tray | Active | NPN | 55V | - | - | 8.5dB ~ 10.3dB | 25W | 20 @ 500mA, 5V | 1.25mA | 200°C (TJ) | - | - | Chassis Mount | 336E-02, Style 1 |
|
|
MDS70RF TRANS NPN 65V 1.09GHZ 55CX |
8,534 | - |
|
Datasheet | - | 55CX | Bulk | Obsolete | NPN | 65V | 1.03GHz ~ 1.09GHz | - | 10.3dB ~ 11.65dB | 225W | 20 @ 500mA, 5V | 5A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
|
MRF455MPTRANSISTOR,<30MHZ,12.5V,60W,MATC |
6,798 | - |
|
Datasheet | - | 211-07, Style 1 | Bulk | Active | NPN | 18V | 30MHz | - | 13dB | 175W | 10 @ 5A, 5V | 15A | - | - | - | Chassis Mount | 211-07, Style 1 |
Bipolar RF Transistors FAQ
Common questions about selecting, comparing and sourcing Bipolar RF Transistors components through Winsun (HK) Electronics.
What should I check when selecting Bipolar RF Transistors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Bipolar RF Transistors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Bipolar RF Transistors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Bipolar RF Transistors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
