Bipolar RF Transistors
Browse available Bipolar RF Transistors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NE68833-T1-ARF TRANS NPN 6V 4.5GHZ SOT23 |
5,382 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 6V | 4.5GHz | 1.7dB ~ 2.5dB @ 2GHz | - | 200mW | 80 @ 3mA, 1V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NE696M01-ARF TRANS NPN 6V 14GHZ SOT363 |
3,656 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | NPN | 6V | 14GHz | 1.6dB @ 2GHz | - | 150mW | 80 @ 10mA, 3V | 30mA | 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
NE851M03-ARF TRANS NPN 5.5V 4.5GHZ SOT363 |
8,134 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | NPN | 5.5V | 4.5GHz | 1.9dB ~ 2.5dB @ 2GHz | - | 200mW | 100 @ 5mA, 1V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
NE85618-ARF TRANS NPN 12V 6.5GHZ SOT343 |
3,701 | - |
|
Datasheet | - | SC-82A, SOT-343 | Bulk | Obsolete | NPN | 12V | 6.5GHz | 1.1dB @ 1GHz | 13dB | 150mW | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-343 |
|
NE85619-ARF TRANS NPN 12V 4.5GHZ SOT523 |
8,105 | - |
|
Datasheet | - | SOT-523 | Bulk | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 100mW | 80 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
NE85630-ARF TRANS NPN 12V 4.5GHZ SOT323 |
3,422 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 150mW | 40 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
|
NE85630-R24-ARF TRANS NPN 12V 4.5GHZ SOT323 |
6,796 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 150mW | 70 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
|
NE85630-R25-ARF TRANS NPN 12V 4.5GHZ SOT323 |
5,715 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 150mW | 125 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|

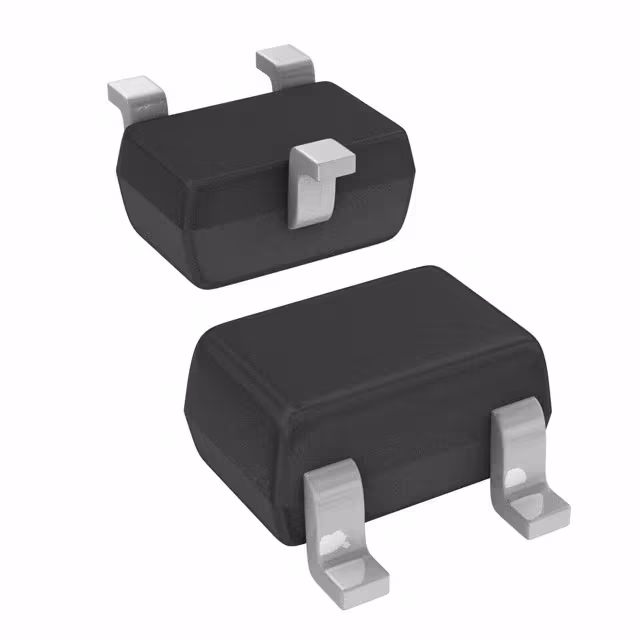

NE85630-T1-R24-ARF TRANS NPN 12V 4.5GHZ SOT323 |
6,188 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 150mW | 70 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
|
NE85630-T1-R25-ARF TRANS NPN 12V 4.5GHZ SOT323 |
3,795 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 12V | 4.5GHz | 1.2dB @ 1GHz | 9dB | 150mW | 125 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
|
NE85633L-ARF TRANS NPN 12V 7GHZ SOT23 |
6,410 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 12V | 7GHz | 1.4dB ~ 2dB @ 1GHz | 9dB | 200mW | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE85633-R24-ARF TRANS NPN 12V 7GHZ SOT23 |
2,667 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 12V | 7GHz | 1.1dB @ 1GHz | 11.5dB | 200mW | 80 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE85633-R25-ARF TRANS NPN 12V 7GHZ SOT23 |
8,106 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | NPN | 12V | 7GHz | 1.1dB @ 1GHz | 11.5dB | 200mW | 125 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NE85633-T1B-R24-ARF TRANS NPN 12V 7GHZ SOT23 |
6,529 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 12V | 7GHz | 1.1dB @ 1GHz | 11.5dB | 200mW | 80 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NE85634-ARF TRANS NPN 12V 6.5GHZ SOT89 |
6,327 | - |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | NPN | 12V | 6.5GHz | 1.1dB @ 1GHz | 9dB | 2W | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
NE85639-ARF TRANS NPN 12V 9GHZ SOT143 |
2,049 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Bulk | Obsolete | NPN | 12V | 9GHz | 1.1dB @ 1GHz | 13dB | 200mW | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
NE856M02-AZRF TRANS NPN 12V 6.5GHZ SOT89 |
5,264 | - |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | NPN | 12V | 6.5GHz | 1.1dB @ 1GHz | 12dB | 1.2W | 50 @ 20mA, 10V | 100mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
NE856M03-ARF TRANS NPN 12V 4.5GHZ 3MINMOLD |
2,175 | - |
|
Datasheet | - | SOT-623F | Bulk | Obsolete | NPN | 12V | 4.5GHz | 1.4dB ~ 2.5dB @ 1GHz | - | 125mW | 80 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | 3-SuperMiniMold (M03) |
|
|
NE97733-T1B-ARF TRANS PNP 12V 8.5GHZ SOT23 |
9,083 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 12V | 8.5GHz | 1.5dB @ 1GHz | 12dB | 200mW | 20 @ 20mA, 8V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NE97833-T1B-ARF TRANS PNP 12V 5.5GHZ SOT23 |
4,889 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PNP | 12V | 5.5GHz | 2dB @ 1GHz | 10dB | 200mW | 20 @ 15mA, 10V | 50mA | 150°C (TJ) | - | - | Surface Mount | SOT23-3 (TO-236) |
Bipolar RF Transistors FAQ
Common questions about selecting, comparing and sourcing Bipolar RF Transistors components through Winsun (HK) Electronics.
What should I check when selecting Bipolar RF Transistors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Bipolar RF Transistors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Bipolar RF Transistors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Bipolar RF Transistors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
