Bipolar Transistor Arrays
Use the filters and product table below to compare Bipolar Transistor Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STA302ATRANS 3PNP DARL 50V 4A 8-SIP |
3,673 | - |
|
Datasheet | - | 8-SIP | Tube | Active | 3 PNP Darlington (Emitter Coupled) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|

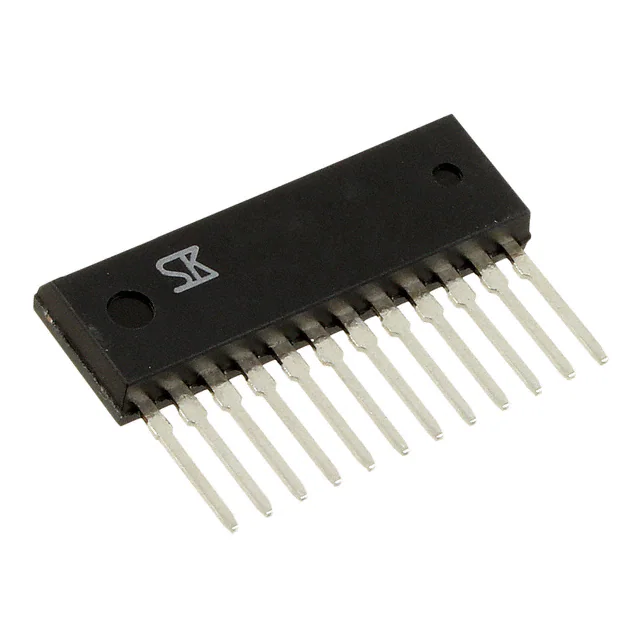

SMA4030TRANS 4NPN DARL 100V 3A 12-SIP |
2,742 | - |
|
Datasheet | - | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
STA408ATRANS 4PNP DARL 120V 4A 10-SIP |
2,399 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 4A | 120V | 1.5V @ 4mA, 2A | 100µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA404ATRANS 4NPN DARL 200V 3A 10-SIP |
791 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 200V | 2V @ 1.5mA, 1A | 100µA (ICBO) | 1000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SMA6010TRANS 3NPN/3PNP DARL 60V 12SIP |
229 | - |
|
Datasheet | - | 12-SIP | Tube | Active | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 100µA (ICBO) | 2000 @ 3A, 4V | 4W | 75MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA402ATRANS 4PNP DARL 50V 4A 10-SIP |
453 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 PNP Darlington (Quad) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6024TRANS 3NPN/3PNP DARL 60V 12SIP |
646 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 8A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SLA6023TRANS 3NPN/3PNP DARL 60V 12SIP |
78 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 6A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 80MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

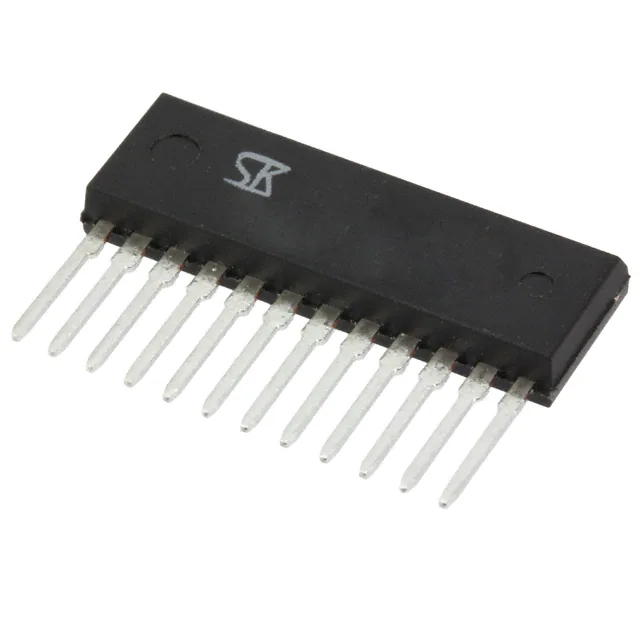

SMA4032TRANS 4NPN DARL 100V 3A 12-SIP |
1 | - |
|
Datasheet | - | 12-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA471ATRANS 4NPN DARL 60V 2A 10SIP |
9,837 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 2A | 60V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
Bipolar Transistor Arrays FAQ
Common questions about filtering, comparing and sourcing Bipolar Transistor Arrays components.
How can I narrow the Bipolar Transistor Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Bipolar Transistor Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
