Bipolar Transistor Arrays
Browse available Bipolar Transistor Arrays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBSS4032SP,115TRANS 2PNP DUAL 30V 4.8A 8-SO |
8,910 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 4.8A | 30V | 510mV @ 250mA, 5A | 100nA | 150 @ 2A, 2V | 2.3W | 115MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4032SPN,115TRANS NPN/PNP 30V 5.7A/4.8A 8-SO |
2,415 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 5.7A, 4.8A | 30V | 450mV @ 300mA, 6A / 510mV @ 250mA, 5A | 100nA | 250 @ 2A, 2V / 150 @ 2A, 2V | 2.3W | 140MHz, 115MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SN,115TRANS 2NPN DUAL 60V 6.7A 8-SO |
7,346 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 6.7A | 60V | 350mV @ 350mA, 7A | 100nA | 150 @ 4A, 2V | 2.3W | 130MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SP,115TRANS 2PNP DUAL 60V 5.9A 8-SO |
3,483 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 5.9A | 60V | 275mV @ 400mA, 4A | 100nA | 150 @ 2A, 2V | 2.3W | 110MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
PBSS4041SPN,115TRANS NPN/PNP 60V 6.7A/5.9A 8-SO |
9,380 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 6.7A, 5.9A | 60V | 350mV @ 350mA, 7A / 275mV @ 400mA, 4A | 100nA | 150 @ 4A, 2V / 150 @ 2A, 2V | 2.3W | 130MHz, 110MHz | 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
MAT12AHZTRANS 2NPN 40V 20MA TO-78-6 |
2,451 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 2 NPN (Dual) Matched Pair | 20mA | 40V | 200mV @ 100µA, 1mA | 500pA | - | - | 200MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-78-6 |
|
MCH6544-TL-ETRANS 2NPN 50V 500MA 6-MCPH |
6,115 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 500mA | 50V | 100mV @ 10mA, 100mA | 100nA (ICBO) | 300 @ 10mA, 2V | 550mW | 500MHz | 150°C (TJ) | - | - | Surface Mount | 6-MCPH |
|
CPH6531-TL-ETRANS 2PNP DUAL 50V 1A 6-CPH |
5,222 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 1A | 50V | 380mV @ 10mA, 500mA | 100nA (ICBO) | 200 @ 100mA, 2V | 1.1W | 420MHz | 150°C (TJ) | - | - | Surface Mount | 6-CPH |
|
MCH5541-TL-ETRANS NPN/PNP 30V 700MA 5-MCPH |
5,766 | - |
|
Datasheet | - | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | 1 NPN, 1 PNP (Emitter Coupled) | 700mA | 30V | 190mV @ 10mA, 200mA / 220mV @ 10mA, 200mA | 100nA (ICBO) | 300 @ 50mA, 2V | 500mW | 540MHZ, 520MHz | 150°C (TJ) | - | - | Surface Mount | 5-MCPH |
|
CPH6539-TL-HTRANS 2NPN DUAL 30V 1.5A 6-CPH |
3,166 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 1.5A | 30V | 250mV @ 15mA, 750mA | 100nA (ICBO) | 200 @ 100mA, 2V | 1.2W | 500MHz | 150°C (TJ) | - | - | Surface Mount | 6-CPH |
|
ECH8503-TL-HTRANS 2PNP DUAL 50V 5A 8-ECH |
4,531 | - |
|
Datasheet | - | 8-SMD, Flat Lead | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 5A | 50V | 190mV @ 125mA, 2.5A | 100nA (ICBO) | 200 @ 500mA, 2V | 1.6W | 280MHz | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
STA401ATRANS 4NPN DARL 60V 4A 10SIP |
3,156 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 4A | 60V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA475ATRANS 4NPN DARL 100V 2A 10-SIP |
8,188 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 2A | 100V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA481ATRANS 4NPN DARL 60V 1A 10SIP |
5,471 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 1A | 60V | 1.5V @ 1mA, 500mA | 10µA (ICBO) | 2000 @ 500mA, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
FMW2T148TRANS GP NPN 50V 5 PIN |
8,793 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

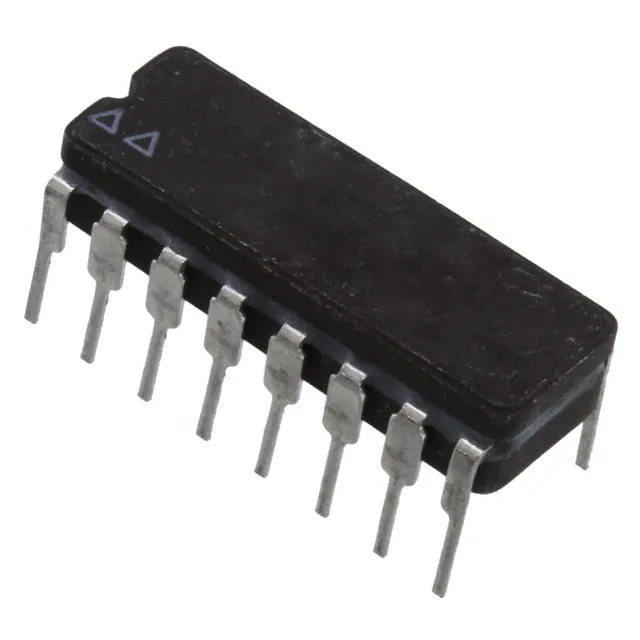

SG2003JTRANS 7NPN DARL 50V 500MA 16CDIP |
9,550 | - |
|
Datasheet | - | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2003J-883BTRANS 7NPN DARL 50V 500MA 16CDIP |
3,375 | - |
|
Datasheet | - | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2003J-JANTRANS 7NPN DARL 50V 500MA 16CDIP |
2,224 | - |
|
Datasheet | - | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|
|
SG2023J-DESCTRANS 7NPN DARL 95V 500MA 16CDIP |
6,996 | - |
|
Datasheet | - | 16-CDIP (0.300", 7.62mm) | Tube | Active | 7 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
|

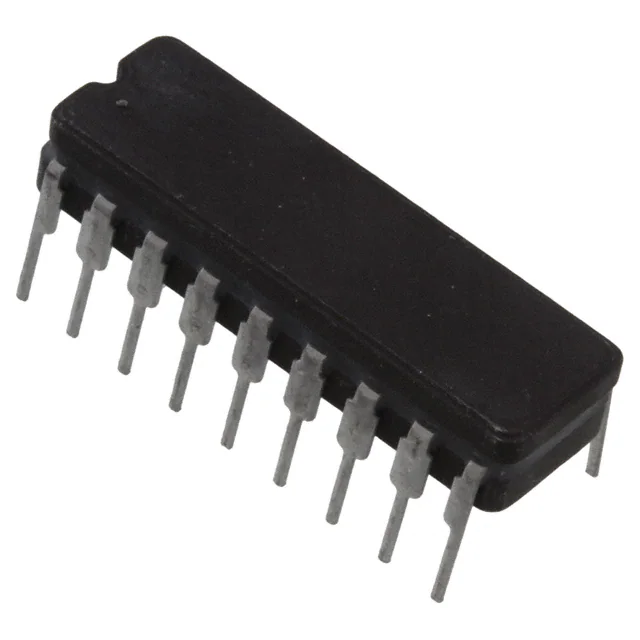

SG2803J-883BTRANS 8NPN DARL 50V 500MA 18CDIP |
2,307 | - |
|
Datasheet | - | - | Tube | Active | 8 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
Bipolar Transistor Arrays FAQ
Common questions about selecting, comparing and sourcing Bipolar Transistor Arrays components through Winsun (HK) Electronics.
What should I check when selecting Bipolar Transistor Arrays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Bipolar Transistor Arrays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Bipolar Transistor Arrays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Bipolar Transistor Arrays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
