Single Bipolar Transistors
Use the filters and product table below to compare Single Bipolar Transistors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SD12720PTRANS NPN 150V 2.5A TO-220F-A1 |
9,582 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN | 2.5 A | 150 V | 1V @ 20mA, 500mA | 100µA (ICBO) | 800 @ 200mA, 4V | 2 W | 25MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
2SD14850PTRANS NPN 100V 5A TOP-3F-A1 |
2,498 | - |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 5 A | 100 V | 2V @ 300mA, 3A | 50µA (ICBO) | 100 @ 1A, 5V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
|
2SD1535TRANS NPN DARL 400V 7A TO220F-A1 |
5,748 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 7 A | 400 V | 2V @ 70mA, 7A | 100µA | 500 @ 2A, 2V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
|
2SD16330PTRANS NPN DARL 100V 5A TO220F-A1 |
3,243 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 5 A | 100 V | 1.5V @ 3mA, 3A | 100µA | 5000 @ 3A, 3V | 2 W | 15MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|

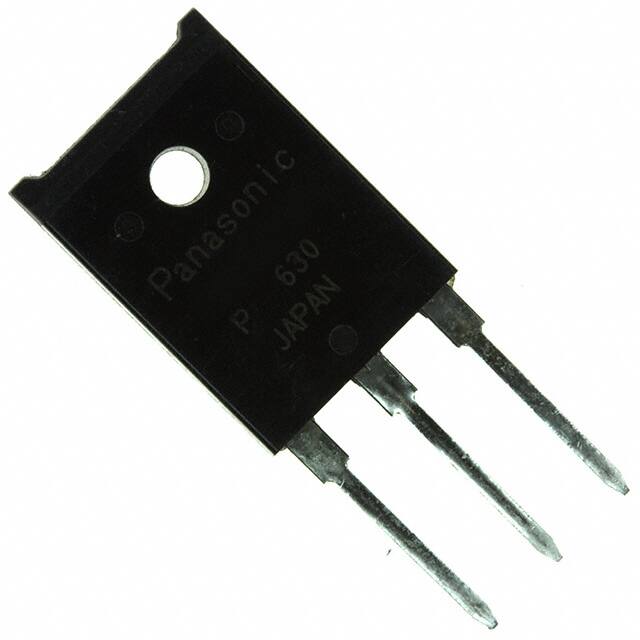

2SD17050PTRANS NPN 80V 10A TOP-3F-A1 |
4,973 | - |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 10 A | 80 V | 1.5V @ 1A, 10A | 10µA (ICBO) | 130 @ 3A, 2V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
2SD18230RLTRANS NPN 40V 0.05A SMINI3-G1 |
5,138 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 400 @ 2mA, 10V | 150 mW | 120MHz | 150°C (TJ) | - | - | Surface Mount | SMini3-G1 |
|
2SD20670RATRANS NPN DARL 100V 2A MT-2-A1 |
8,772 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 100 V | 1.5V @ 1mA, 1A | 100nA (ICBO) | 8000 @ 1A, 10V | 1 W | - | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD2138APATRANS NPN DARL 80V 2A MT-4-A1 |
2,445 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 80 V | 2.5V @ 8mA, 2A | 100µA | 4000 @ 2A, 4V | 15 W | 20MHz | 150°C (TJ) | - | - | Through Hole | MT-4-A1 |
|
|
2SD21840RATRANS NPN 150V 1A MT-2-A1 |
7,908 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 150 V | 300mV @ 25mA, 500mA | 100nA (ICBO) | 120 @ 100mA, 2V | 1 W | 90MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
|
2SD225900ATRANS NPN 20V 0.7A MT-2-A1 |
6,206 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 700 mA | 20 V | 400mV @ 50mA, 500mA | 10µA | 1000 @ 150mA, 10V | 1 W | 55MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
Single Bipolar Transistors FAQ
Common questions about filtering, comparing and sourcing Single Bipolar Transistors components.
How can I narrow the Single Bipolar Transistors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Bipolar Transistors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
