Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
49US9S1130BMDAEEGDE-BCRYSTAL 11.30625MHZ -40 ~ +85C 1 |
200 | - |
|
Datasheet | 49US | HC-49/US | Bulk | Active | MHz Crystal | 11.30625 MHz | ±50ppm | ±25ppm | 10pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.435" L x 0.185" W (11.05mm x 4.70mm) | 0.138" (3.50mm) |
|
6035S21356BMDAEFGFE-CTCRYSTAL 13.56MHZ -40 ~ +85C 10PF |
1,000 | - |
|
Datasheet | 6035SX | 2-SMD, No Lead | Strip | Active | MHz Crystal | 13.56 MHz | ±50ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
|
6035S20981BMDBBDGJE-CTCRYSTAL 9.81563MHZ -40 ~ +85C 9. |
580 | - |
|
Datasheet | 6035SX | 2-SMD, No Lead | Strip | Active | MHz Crystal | 9.81563 MHz | ±50ppm | ±20ppm | 9.5pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
|
6035S20800BMDALEGNE-CTCRYSTAL 8MHZ -40 ~ +85C 15PF |
237 | - |
|
Datasheet | 6035SX | 2-SMD, No Lead | Strip | Active | MHz Crystal | 8 MHz | ±50ppm | ±25ppm | 15pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
5032S20800BMDAJEGNE-CTCRYSTAL 8MHZ -40 ~ +85C 18PF |
3,093 | - |
|
Datasheet | 5032SX | 2-SMD, No Lead | Strip | Active | MHz Crystal | 8 MHz | ±50ppm | ±25ppm | 18pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|

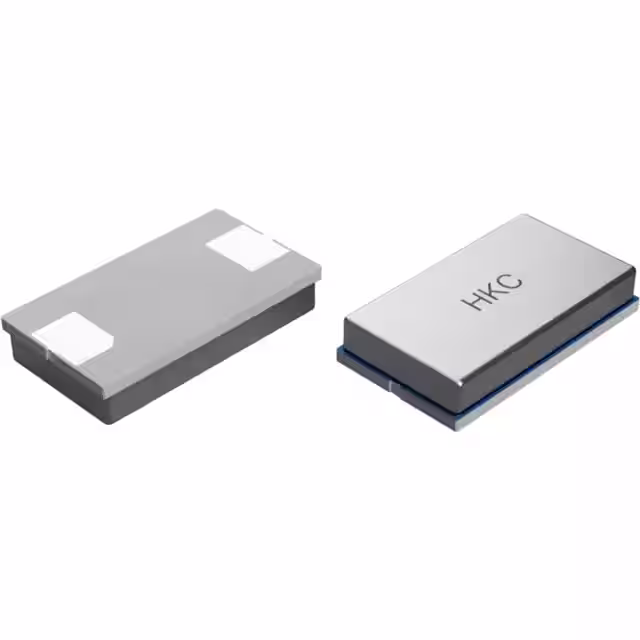

8045H21600BMDAEHECA-CTCRYSTAL HX 16MHZ 50PPM 10PF |
800 | - |
|
Datasheet | 8045HX | 2-SMD, No Lead | Strip | Active | MHz Crystal | 16 MHz | ±30ppm | ±50ppm | 10pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
7050S47987BMDAEEHHM-CTCRYSTAL 79.875MHZ -10 ~ +50C 10P |
650 | - |
|
Datasheet | 7050SX | 4-SMD, No Lead | Strip | Active | MHz Crystal | 79.875 MHz | ±25ppm | ±25ppm | 10pF | 80 Ohms | 3rd Overtone | -10°C ~ 50°C | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.047" (1.20mm) |
|
3225S42600BMDACEGEF-CTCRYSTAL 26MHZ -40 ~ +125C 8PF |
980 | - |
|
Datasheet | 3225SX | 4-SMD, No Lead | Strip | Active | MHz Crystal | 26 MHz | ±50ppm | ±25ppm | 8pF | 50 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
49SMES1600BMDAYEGCF-TRCRYSTAL 16MHZ, 25PPM, 50PPM, 3 |
1,000 | - |
|
Datasheet | 49SM | HC-49S 4-SMD | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±25ppm | 30pF | 30 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.516" L x 0.197" W (13.10mm x 5.00mm) | 0.217" (5.50mm) |
|
|
49US9S2000BMDACFECE-BCRYSTAL 20MHZ -40 ~ +85C 8PF |
1,000 | - |
|
Datasheet | 49US | HC-49/US | Bulk | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 8pF | 30 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.435" L x 0.185" W (11.05mm x 4.70mm) | 0.138" (3.50mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
