Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST3215SB32768E0HPWZZCRYSTAL 32.7680KHZ 9PF SMD |
9,824 | - |
|
Datasheet | ST3215SB, Kyocera | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
ST3215SB32768E0HPWAACRYSTAL 32.7680KHZ 9PF SMD |
2,400 | - |
|
Datasheet | ST3215SB, Kyocera | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
CX-96F-040.000-E0107CRYSTAL 40.0000MHZ 15PF SMD |
7,425 | - |
|
Datasheet | CX5032SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 40 MHz | ±18ppm | - | 15pF | 25 Ohms | Fundamental | 0°C ~ 85°C | - | Surface Mount | - | 0.193" L x 0.122" W (4.90mm x 3.10mm) | 0.031" (0.80mm) |
|
ST4115SB32768H5HPWZZCRYSTAL 32.7680KHZ 12.5PF SMD |
9,868 | - |
|
Datasheet | ST4115SB, Kyocera | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.161" L x 0.059" W (4.10mm x 1.50mm) | 0.030" (0.75mm) |
|
|
ST4115SB32768E0HPWZZCRYSTAL 32.7680KHZ 9PF SMD |
9,223 | - |
|
Datasheet | ST4115SB, Kyocera | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.161" L x 0.059" W (4.10mm x 1.50mm) | 0.030" (0.75mm) |
|
CX49GFNB04000H0PESZZCRYSTAL 4.0000MHZ 12PF SMD |
7,800 | - |
|
Datasheet | CX49GFNB, Kyocera | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 4 MHz | ±50ppm | ±50ppm | 12pF | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.177" (4.50mm) |
|

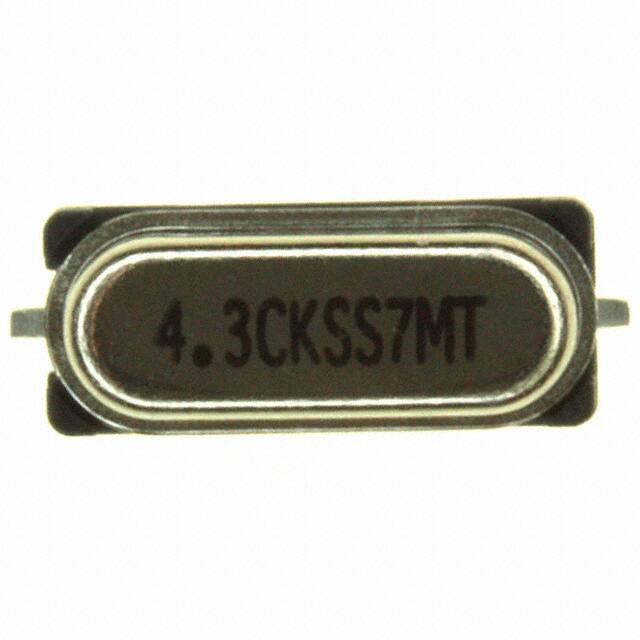

CX49GFNB04332H0PESZZCRYSTAL 4.3320MHZ 12PF SMD |
2,190 | - |
|
Datasheet | CX49GFNB, Kyocera | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 4.332 MHz | ±50ppm | ±50ppm | 12pF | 120 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.177" (4.50mm) |
|
|
CX49GFNB04915H0PESZZCRYSTAL 4.9152MHZ 12PF SMD |
9,553 | - |
|
Datasheet | CX49GFNB, Kyocera | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 4.9152 MHz | ±50ppm | ±50ppm | 12pF | 100 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.177" (4.50mm) |
|
|
CX49GFNB06000H0PESZZCRYSTAL 6.0000MHZ 12PF SMD |
7,194 | - |
|
Datasheet | CX49GFNB, Kyocera | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 6 MHz | ±50ppm | ±50ppm | 12pF | 90 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.177" (4.50mm) |
|
|
CX49GFNB07200H0PESZZCRYSTAL 7.2000MHZ 12PF SMD |
5,314 | - |
|
Datasheet | CX49GFNB, Kyocera | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 7.2 MHz | ±50ppm | ±50ppm | 12pF | 90 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.177" (4.50mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
