Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABM11-132-24.000MHZ-T3ABM11-132-24.000MHZ-T3 |
6,000 | - |
|
Datasheet | ABM11 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 24 MHz | - | - | - | 100 Ohms | Fundamental | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.023" (0.59mm) |
|
|
ABM12-112-48.000MHZ-ABM12-112-48.000MHZ- |
33,000 | - |
|
Datasheet | ABM12 | 4-SMD, No Lead | Bulk | Active | MHz Crystal | 48 MHz | - | - | 10pF | 100 Ohms | Fundamental | - | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.018" (0.45mm) |
|
|
ABS05W-32.768KHZ-J-2ABS05W-32.768KHZ-J-2 |
5,000 | - |
|
Datasheet | ABS05W | 2-SMD, No Lead | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 4pF | - | - | -40°C ~ 105°C | - | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.020" (0.50mm) |
|
ABM3B-25.000MHZ-10-1-U-TCRYSTAL 25.0000MHZ 10PF SMD |
1,947 | - |
|
Datasheet | ABM3B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.043" (1.10mm) |
|
|
ABM3B-14.7456MHZ-10-1-U-TCRYSTAL 14.7456MHZ 10PF SMD |
2,878 | - |
|
Datasheet | ABM3B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.7456 MHz | ±10ppm | ±10ppm | 10pF | 70 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.043" (1.10mm) |
|
AB26T-32.768KHZ-6CRYSTAL 32.7680KHZ 6PF TH |
1,987 | - |
|
Datasheet | AB26T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 35 kOhms | Fundamental | -10°C ~ 60°C | - | Through Hole | - | 0.083" Dia (2.10mm) | 0.244" (6.20mm) |
|

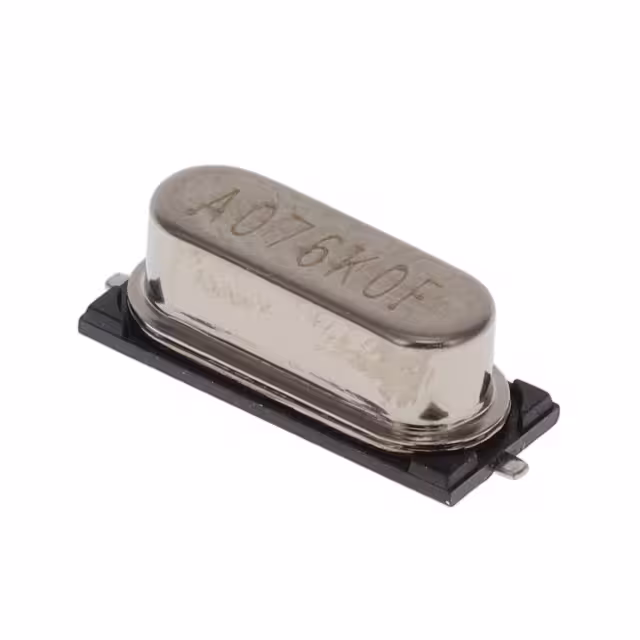

ABLS-7.680MHZ-D-4-Y-TCRYSTAL 7.6800MHZ 18PF SMD |
1,584 | - |
|
Datasheet | ABLS | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 7.68 MHz | ±30ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
|
ABLS-16.9344MHZ-B4-TCRYSTAL 16.9344MHZ 18PF SMD |
268 | - |
|
Datasheet | ABLS | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 16.9344 MHz | ±50ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
|
AB38T-32.768KHZ-B7CRYSTAL 32.7680KHZ 12.5PF TH |
1,076 | - |
|
Datasheet | AB38T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±15ppm | 12.5pF | 30 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.126" Dia x 0.327" L (3.20mm x 8.30mm) | - |
|
ABLS2-40.000MHZ-D4YF-TCRYSTAL 40.0000MHZ 18PF SMD |
819 | - |
|
Datasheet | ABLS2 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.130" (3.30mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
