Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

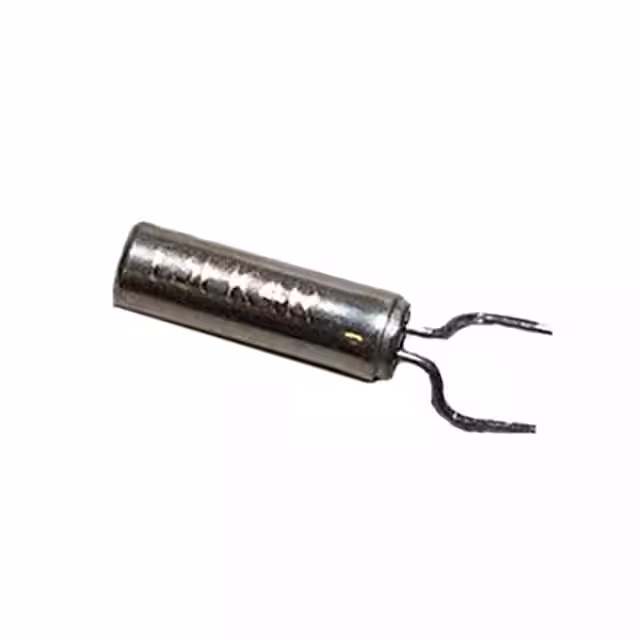

R26-32.768-12.5-SMD-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
2,182 | - |
|
Datasheet | R26 | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.075" Dia (1.90mm) | 0.240" (6.10mm) |
|

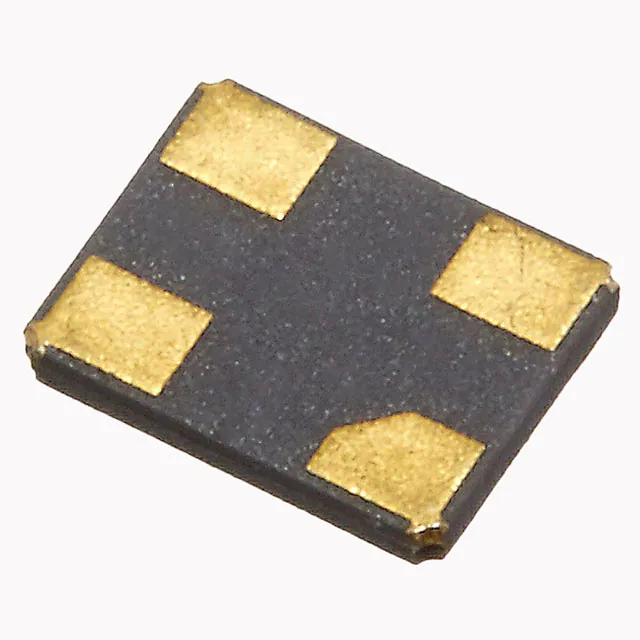

R2520-26.000-18-F-1010-EXT-TRCRYSTAL 26.0000MHZ 18PF SMD |
9,487 | - |
|
Datasheet | R2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 18pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
R2520-12.000-10-3030-TRCRYSTAL 12.0000MHZ 10PF SMD |
7,969 | - |
|
Datasheet | R2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 10pF | 180 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
R2520-16.000-9-1010-EXT-TRCRYSTAL 16.0000MHZ 9PF SMD |
5,496 | - |
|
Datasheet | R2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 9pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
R2520-40.000-10-F-1010-EXT-TRCRYSTAL 40.0000MHZ 10PF SMD |
9,577 | - |
|
Datasheet | R2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
R26-32.768-6-SMD-TRCRYSTAL 32.7680KHZ 6PF SMD |
5,397 | - |
|
Datasheet | R26 | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 35 kOhms | Fundamental | -10°C ~ 60°C | - | Through Hole | - | 0.083" Dia (2.10mm) | 0.244" (6.20mm) |
|
H10S-10.000-18-EXT-TRCRYSTAL 10.0000MHZ 18PF SMD |
7,476 | - |
|
Datasheet | H10S | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 10 MHz | ±100ppm | ±100ppm | 18pF | 130 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
|
H10S-14.7456-16-1020-TRCRYSTAL 14.7456MHZ 16PF SMD |
6,240 | - |
|
Datasheet | H10S | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 14.7456 MHz | ±20ppm | ±10ppm | 16pF | 130 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
|
H10S-16.384-18-1030-TRCRYSTAL 16.3840MHZ 18PF SMD |
6,772 | - |
|
Datasheet | H10S | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 16.384 MHz | ±30ppm | ±10ppm | 18pF | 130 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
|
|
H10S-18.432-18-EXT-TRCRYSTAL 18.4320MHZ 18PF SMD |
5,142 | - |
|
Datasheet | H10S | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 18.432 MHz | ±100ppm | ±100ppm | 18pF | 130 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.047" (1.20mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
