Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H130B-25.000-10-F-1010-EXT-TRCRYSTAL 25.0000MHZ 10PF SMD |
3,453 | - |
|
Datasheet | H130B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 10pF | 20 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|

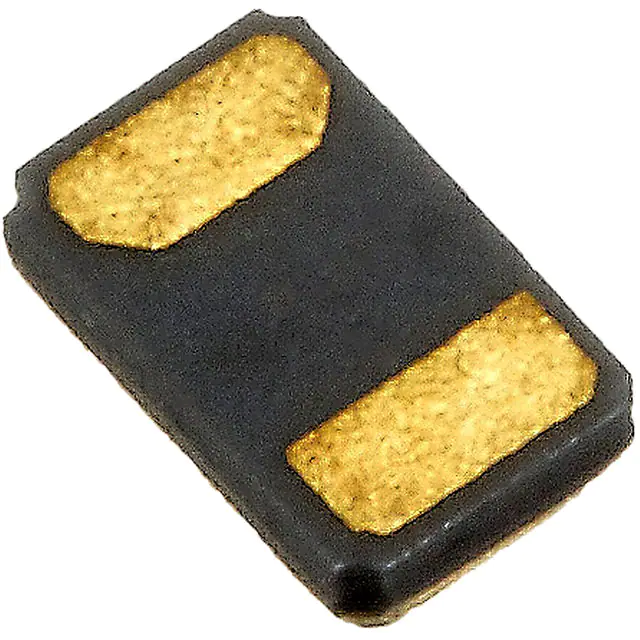

H130A-12.000-18-2030-EXT-TRCRYSTAL 12.0000MHZ 18PF SMD |
3,907 | - |
|
Datasheet | H130A | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±20ppm | 18pF | 35 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.043" (1.10mm) |
|
|
H130A-25.000-18-F-2030-EXT-TRCRYSTAL 25.0000MHZ 18PF SMD |
1,363 | - |
|
Datasheet | H130A | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 30 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.043" (1.10mm) |
|
RSM200S-32.768-12.5-10PPM-NPBCRYSTAL 32.7680KHZ 12.5PF SMD |
1,456 | - |
|
Datasheet | RSM200S | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|

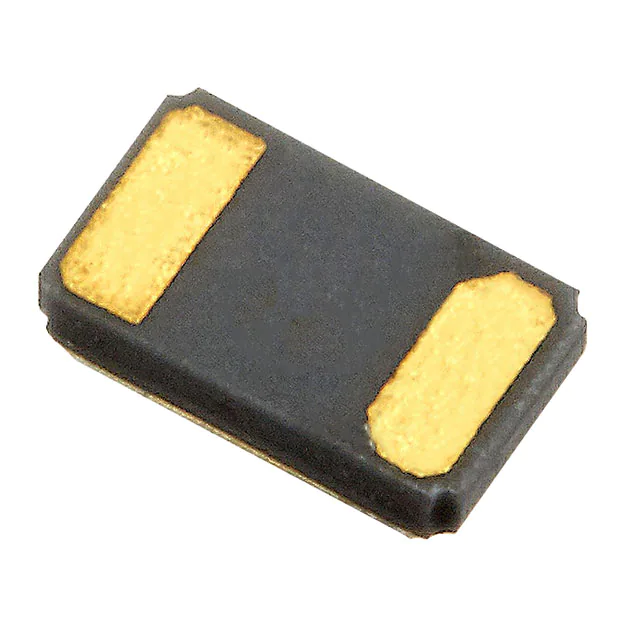

RT2012-32.768-7-TRCRYSTAL 32.7680KHZ 7PF SMD |
11,016 | - |
|
Datasheet | RT2012 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
H130B-50.000-16-F-1010-TRCRYSTAL 50.0000MHZ 16PF SMD |
1,412 | - |
|
Datasheet | H130B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±10ppm | ±10ppm | 16pF | 20 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|
RH100-8.000-16-3030-TR-NS1CRYSTAL 8.0MHZ 18PF SMD |
4,787 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 16pF | 400 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
A-1.8432-18CRYSTAL 1.8432MHZ 18PF TH |
1,281 | - |
|
Datasheet | A | HC-49/U | Bulk | Active | MHz Crystal | 1.8432 MHz | ±50ppm | ±30ppm | 18pF | 700 Ohms | Fundamental | - | - | Through Hole | - | 0.435" L x 0.183" W (11.05mm x 4.65mm) | 0.531" (13.49mm) |
|
TT-SMDC-8.000-18-EXT-TRCRYSTAL 8.0000MHZ 18PF SMD |
673 | - |
|
Datasheet | TT-SMDC | 4-SOJ, 9.40mm pitch | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.492" L x 0.181" W (12.50mm x 4.60mm) | 0.146" (3.70mm) |
|
AS-7.3728-18-SMD-TRCRYSTAL 7.3728MHZ 18PF SMD |
4,300 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 18pF | 70 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
