Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM16000006CRYSTAL 16.0000MHZ 12PF SMD |
8,197 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM24070001CRYSTAL 24.0000MHZ 12PF SMD |
4,834 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM25070002CRYSTAL 25.0000MHZ 16PF SMD |
5,579 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±15ppm | 16pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM25090001CRYSTAL 25.0000MHZ 10PF SMD |
3,394 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±10ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM26000008CRYSTAL 26.0000MHZ 8PF SMD |
6,235 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±16ppm | ±10ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM26060001CRYSTAL 26.0000MHZ 8PF SMD |
2,994 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±10ppm | ±7ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM48070004CRYSTAL 48.0000MHZ 4.7PF SMD |
2,266 | - |
|
Datasheet | AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 48 MHz | ±20ppm | ±10ppm | 4.7pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

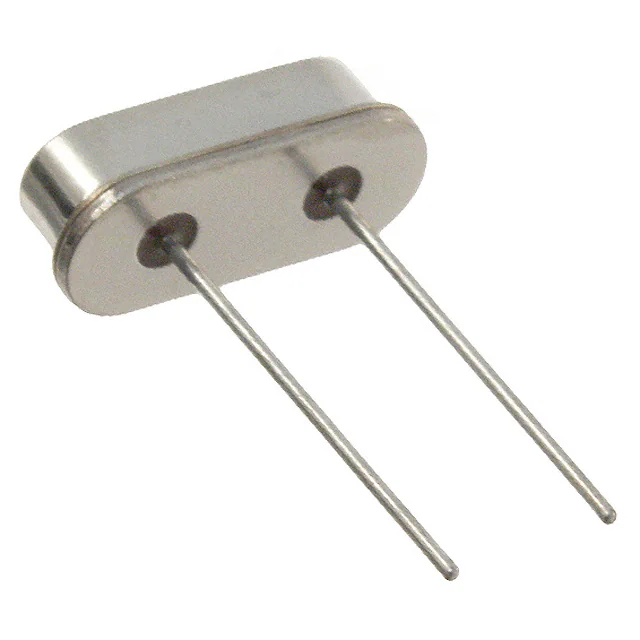

AS16000001CRYSTAL 16.0000MHZ 12PF TH |
8,348 | - |
|
Datasheet | AS | HC-49/US | Bulk | Obsolete | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 12pF | 50 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Through Hole | - | 0.453" L x 0.197" W (11.50mm x 5.00mm) | 0.145" (3.68mm) |
|

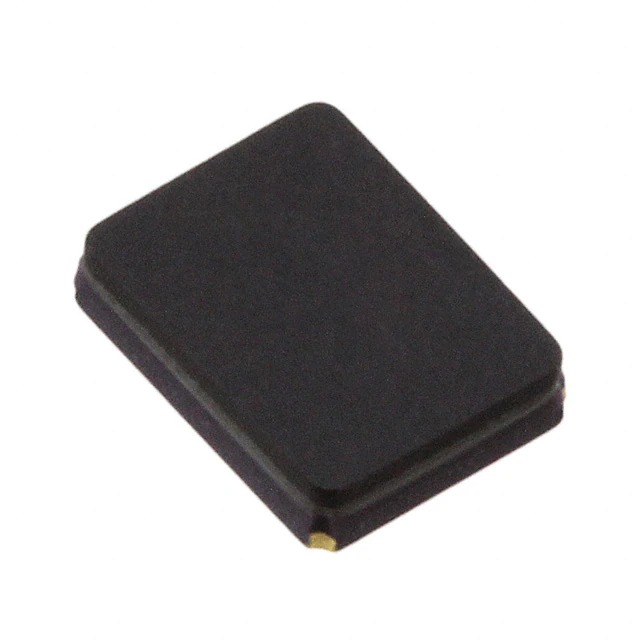

AV10070001CRYSTAL 10.0000MHZ 12PF SMD |
8,944 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 10 MHz | ±50ppm | ±20ppm | 12pF | 200 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV12070002CRYSTAL 12.0000MHZ 8.2PF SMD |
9,673 | - |
|
Datasheet | AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±15ppm | 8.2pF | 120 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
