Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

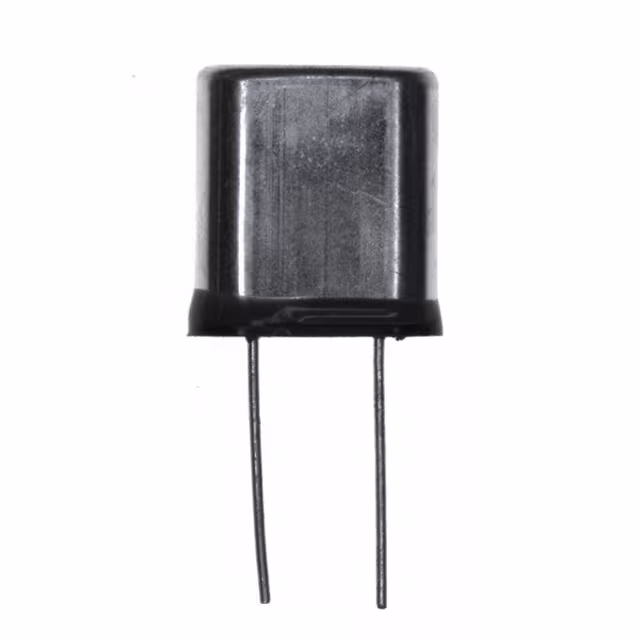

ECS-29.4-32-2PCRYSTAL 2.94912MHZ 32PF TH |
8,758 | - |
|
Datasheet | HC-6/U | HC-6/U | Bulk | Obsolete | MHz Crystal | 2.94912 MHz | ±50ppm | ±50ppm | 32pF | - | Fundamental | -10°C ~ 60°C | - | Through Hole | - | - | - |
|

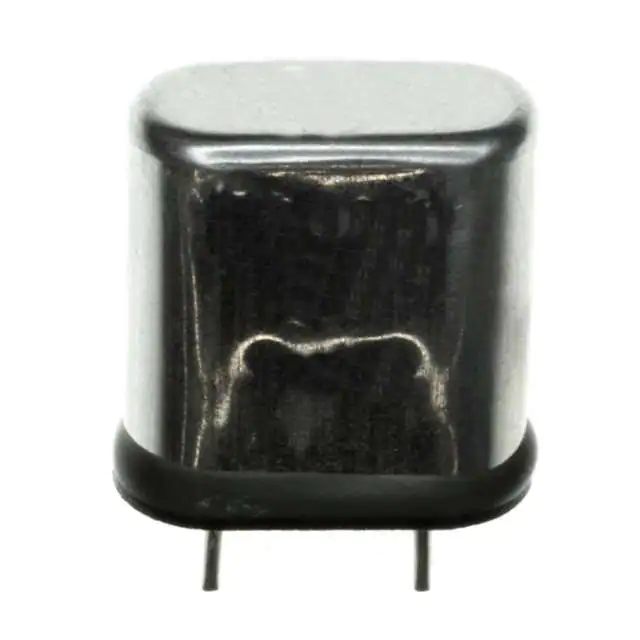

ECS-36.4-32-2PCRYSTAL 3.6400MHZ 32PF TH |
7,359 | - |
|
Datasheet | HC-6/U | HC-6/U | Bulk | Obsolete | MHz Crystal | 3.64 MHz | ±50ppm | ±50ppm | 32pF | - | Fundamental | -10°C ~ 60°C | - | Through Hole | - | - | - |
|
ECS-42-16-5PX-TRCRYSTAL 4.194304MHZ 16PF SMD |
3,537 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4.194304 MHz | ±50ppm | ±30ppm | 16pF | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-115.2-20-5PCRYSTAL 11.5200MHZ 20PF SMD |
9,979 | - |
|
Datasheet | CSM-7 | HC-49/US | Bulk | Active | MHz Crystal | 11.52 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-76-20-4XCRYSTAL 7.6000MHZ 20PF TH |
4,002 | - |
|
Datasheet | HC-49USX | HC-49/US | Bulk | Active | MHz Crystal | 7.6 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
ECS-122.8-18-4XENCRYSTAL 12.2880MHZ 18PF TH |
9,866 | - |
|
Datasheet | HC-49USX | HC-49/US | Bulk | Active | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
ECS-330-20-3X-TRCRYSTAL 33.0000MHZ 20PF SMD |
7,385 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 33 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-130-20-3X-EN-TRCRYSTAL 13.0000MHZ 20PF SMD |
5,328 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 13 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-196.6-20-3X-EN-TRCRYSTAL 19.6608MHZ 20PF SMD |
2,483 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 19.6608 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-330-20-3X-EN-TRCRYSTAL 33.0000MHZ 20PF SMD |
2,433 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 33 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
