Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

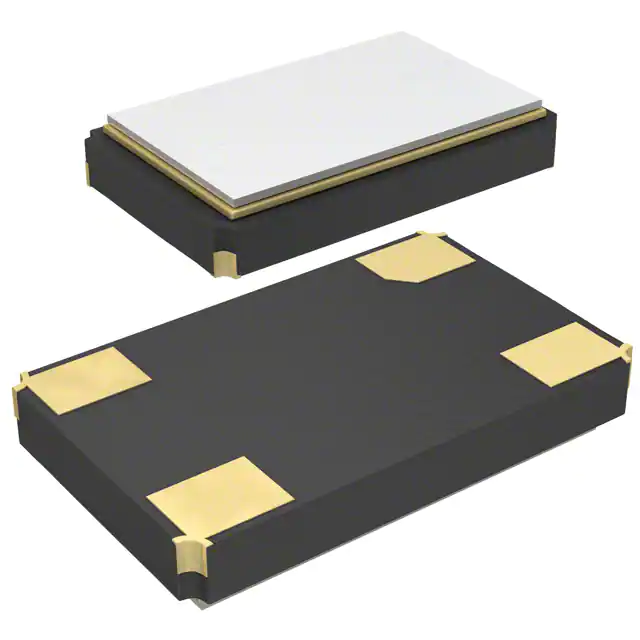

ECS-300-18-30BQ-DSCRYSTAL 30.0000MHZ 18PF SMD |
3,382 | - |
|
Datasheet | ECX-53BQ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 30 MHz | ±100ppm | ±30ppm | 18pF | 30 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
ECS-300-20-30B-TRCRYSTAL 30.0000MHZ 20PF SMD |
8,902 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 30 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
|
ECS-320-S-30B-TRCRYSTAL 32.0000MHZ SERIES SMD |
4,990 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±50ppm | ±30ppm | Series | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
|
ECS-360-S-30B-TRCRYSTAL 36.0000MHZ SERIES SMD |
4,245 | - |
|
Datasheet | ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 36 MHz | ±50ppm | ±30ppm | Series | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|

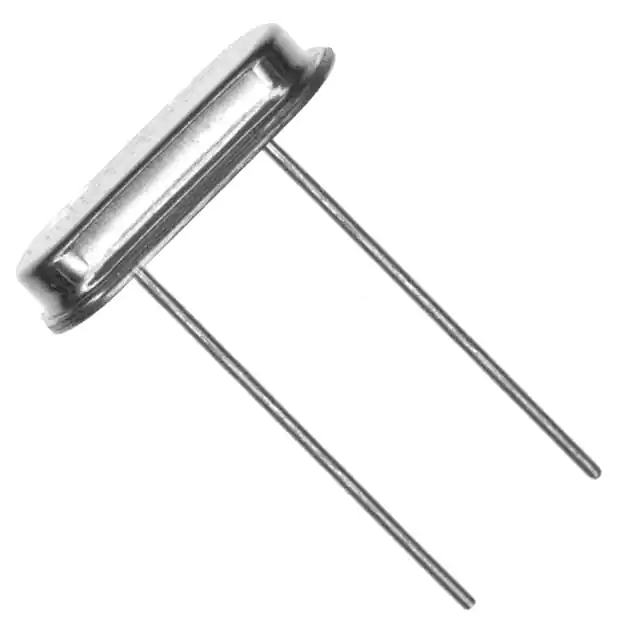

ECS-122.8-20-4VXCRYSTAL 12.2880MHZ 20PF TH |
8,211 | - |
|
Datasheet | HC-49USSX | HC-49/US | Bulk | Active | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.083" (2.10mm) |
|
|
ECS-143-20-4VXCRYSTAL 14.31818MHZ 20PF TH |
3,211 | - |
|
Datasheet | HC-49USSX | HC-49/US | Bulk | Active | MHz Crystal | 14.31818 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.083" (2.10mm) |
|
ECS-20-S-1CRYSTAL 2.0000MHZ SERIES TH |
6,985 | - |
|
Datasheet | HC-49U | HC-49/U | Bulk | Not For New Designs | MHz Crystal | 2 MHz | ±50ppm | ±30ppm | Series | 500 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.530" (13.46mm) |
|
ECS-160-CDX-0847CRYSTAL 16.0000MHZ SURFACE MOUNT |
8,368 | - |
|
Datasheet | ECX-32 | - | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | - | - | - | - | Fundamental | - | - | Surface Mount | - | - | - |
|
ECS-135.6-10-33QZ-TRCRYSTAL 13.5600MHZ 10PF SMD |
9,783 | - |
|
Datasheet | ECX-33QZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±50ppm | ±15ppm | 10pF | 120 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
ECS-180.8-10-33QZ-TRCRYSTAL 18.0800MHZ 10PF SMD |
5,070 | - |
|
Datasheet | ECX-33QZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.08 MHz | ±50ppm | ±15ppm | 10pF | 120 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
