Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-100-S-5PX-TRCRYSTAL 10.0000MHZ SERIES SMD |
15,478 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | Series | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-270-18-5PX-F-TRCRYSTAL 27.0000MHZ 18PF SMD |
4,317 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±50ppm | ±30ppm | 18pF | 30 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ECS-36-S-5PX-TRCRYSTAL 3.6864MHZ SERIES SMD |
2,849 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | Series | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|

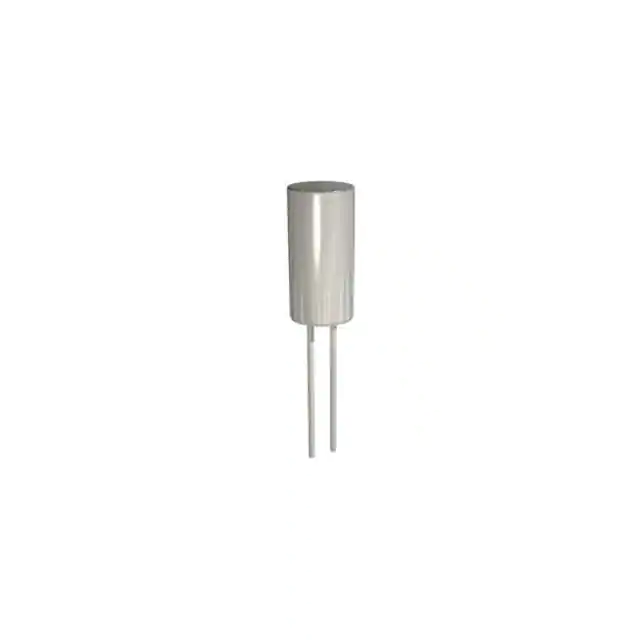

ECS-.327-12.5-13X-CCRYSTAL 32.768KHZ 12.5PF SMD |
1,737 | - |
|
Datasheet | ECS-2X6X | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 35 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.083" Dia x 0.244" L (2.10mm x 6.20mm) | - |
|
ECS-122.8-20-3X-TRCRYSTAL 12.2880MHZ 20PF SMD |
11,790 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-143-20-3X-EN-TRCRYSTAL 14.31818MHZ 20PF SMD |
10,345 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-245.7-20-3X-EN-TRCRYSTAL 24.5760MHZ 20PF SMD |
9,451 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 24.576 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-400-20-3X-EN-TRCRYSTAL 40.0000MHZ 20PF SMD |
5,716 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
|
ECS-147.4-20-3X-TRCRYSTAL 14.7456MHZ 20PF SMD |
1,271 | - |
|
Datasheet | CSM-3X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.091" (2.30mm) |
|
ECS-245.7-10-36B2-CTM-TRCRYSTAL 24.576MHZ 10PF SMD |
19,181 | - |
|
Datasheet | ECX-2236B2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24.576 MHz | ±20ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
