Digital Isolators
Use the filters and product table below to compare Digital Isolators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

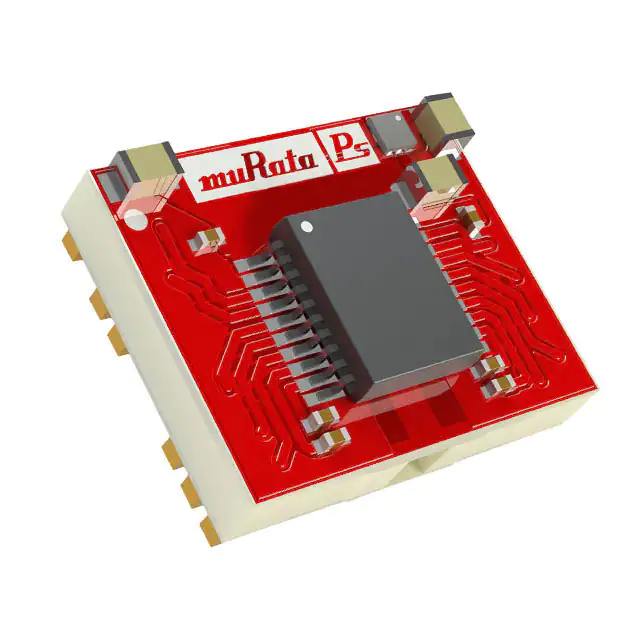

NMTTLD6S5MC-R7DGTL ISOL 1500VAC 2CH GEN PURP |
2,562 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1500VAC | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | - | 4.5V ~ 5.5V | - | - | -40°C ~ 95°C | - | - |
|
NM485D6S5MC-R13DGTL ISOL 3000VAC 2CH RS485 |
1,404 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|
|
NM485D6S5MC-R7DGTL ISOL 3000VAC 2CH RS485 |
1,525 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|

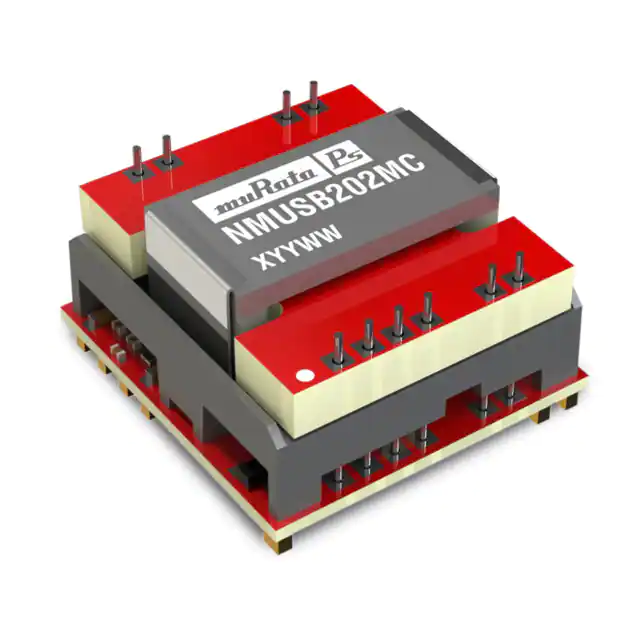

NMUSB202MC-R13DGTL ISOL 3000VAC 2CH USB MODULE |
2,995 | - |
|
Datasheet | - | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

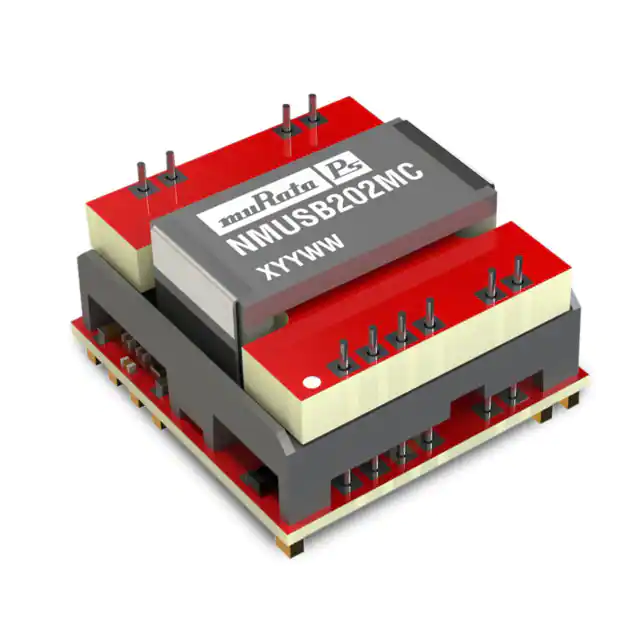

NMUSB202MC-R7DGTL ISOL 3000VAC 2CH USB MODULE |
1,532 | - |
|
Datasheet | - | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

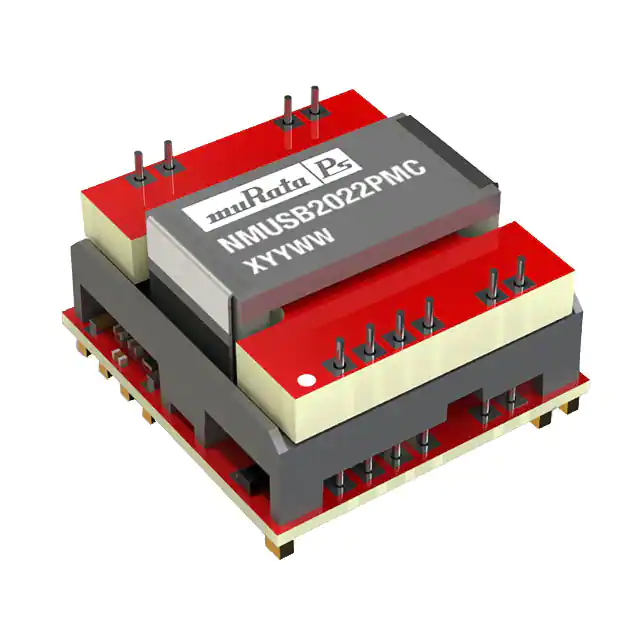

NMUSB2022PMC-R13DGT ISOL 4000VRMS 1CH USB MODULE |
2,787 | - |
|
Datasheet | - | 13-SMD Module | Tape & Reel (TR) | Obsolete | Capacitive Coupling | USB | Yes | 1 | - | Unidirectional | 4000Vrms | 25kV/µs | 12Mbps | - | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | Module |
|
NM485DCDGTL ISO 1000VRMS 4CH GP 24DIL |
2,247 | - |
|
Datasheet | - | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 1000Vrms | - | 1.25Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 60°C | Through Hole | 24-DIL |
|
NM485SLCDGTL ISO 1000VRMS 2CH GP 24DIL |
2,764 | - |
|
Datasheet | - | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1000Vrms | - | 2.5Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 70°C | Through Hole | 24-DIL |
|
|
NMTTLD6S5MC-R13DGTL ISO 1500VAC 2CH GP MODULE |
1,007 | - |
|
Datasheet | - | 16-SMD Module | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1500VAC | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | - | 4.5V ~ 5.5V | - | - | -40°C ~ 95°C | Surface Mount | Module |
|
|
NMUSB2022PMC-R7DGT ISOL 4000VRMS 1CH USB MODULE |
3,909 | - |
|
Datasheet | - | 13-SMD Module | Tape & Reel (TR) | Obsolete | Capacitive Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 4000Vrms | 25kV/µs | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
Digital Isolators FAQ
Common questions about filtering, comparing and sourcing Digital Isolators components.
How can I narrow the Digital Isolators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Digital Isolators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
