Digital Isolators
Browse available Digital Isolators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM2881IY-5#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
3,066 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|

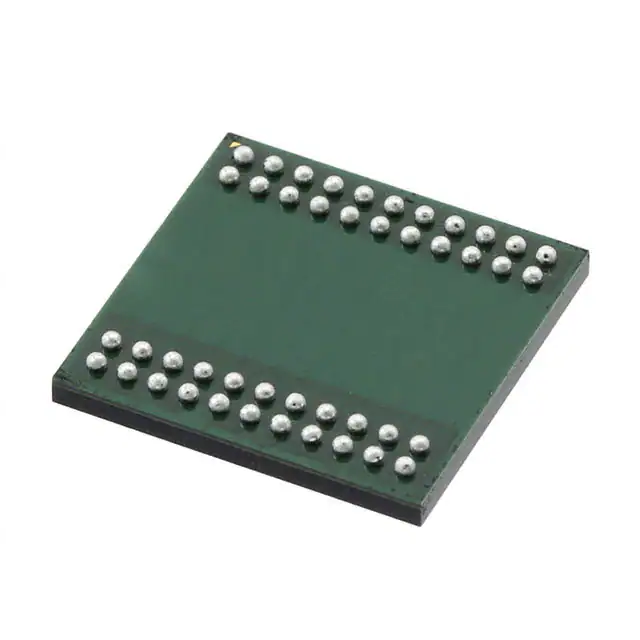

ADM3252EABCZDGTL ISO 2500VRMS RS232 44CSPBGA |
1,280 | - |
|
Datasheet | IsoPower®, iCoupler® | 44-LBGA, CSPBGA | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 460Kbps | - | - | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 44-CSPBGA (12x12) |
|
|
LTM2883CY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
4,242 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881HY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
203 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881HY-5#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
159 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|
LTM2881HV-3#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
1,840 | - |
|
Datasheet | µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 105°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2883IY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
222 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2883IY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
213 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
HCPL-0900DGTL ISO 2500VRMS 1CH GP 8SOIC |
411 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
LTM2885HY#PBFDGTL ISO 6.5KV RS422/RS485 42BGA |
160 | - |
|
Datasheet | µModule® | 42-BBGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 6500Vrms | 50kV/µs | 20Mbps | - | - | 4ns, 4ns | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 42-BGA (22x9) |
|
LTM2884CY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
140 | - |
|
Datasheet | µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | 0°C ~ 70°C | Surface Mount | 44-BGA (15x15) |
|

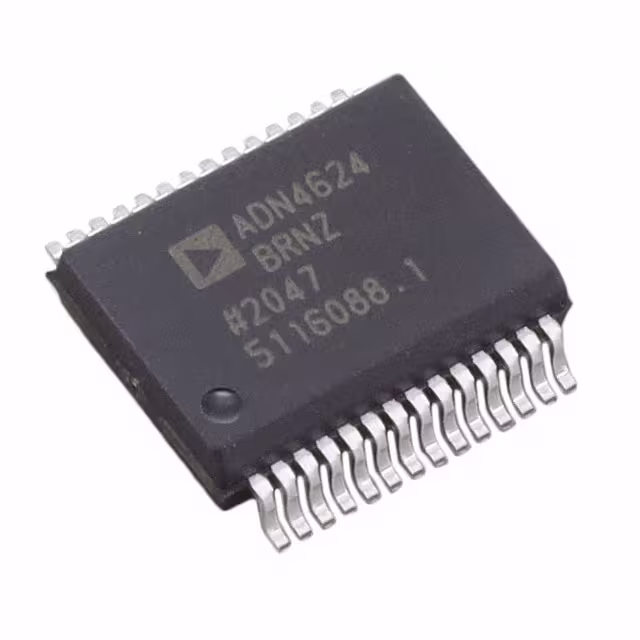

ADN4624BRNZQUAD 2.5GBPS 4+0 LVDS ISOLATOR |
389 | - |
|
Datasheet | - | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | LVDS | No | 4 | 4/0 | Unidirectional | 5700Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ns, 180ns (Max) | 1.7V ~ 1.9V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
ADN4622BRNZQUAD CHAN 2.5GBPS 2+2 LVDS ISOLA |
2,173 | - |
|
Datasheet | iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | LVDS | Yes | 4 | 2/2 | Unidirectional | 8000Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
|
LTM2884IY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
3,426 | - |
|
Datasheet | µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | -40°C ~ 85°C | Surface Mount | 44-BGA (15x15) |
|
|
LTM2881MPY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
3,715 | - |
|
Datasheet | µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -55°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2884HY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
216 | - |
|
Datasheet | µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | -40°C ~ 105°C | Surface Mount | 44-BGA (15x15) |
|
|
ISO7221CHDDGTL ISO 4000VPK 2CH GP 8SOIC |
3,351 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 4000Vpk | 25kV/µs | 25Mbps | 43ns, 43ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 175°C | Surface Mount | 8-SOIC |
|
|
TPT7721-SO1RGENERAL PURPOSE DIGITAL ISOLATOR |
3,410 | - |
|
Datasheet | TPT772x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3750Vrms | 150kV/µs | 150Mbps | 18ns, 18ns | 5ns | 0.7ns, 0.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOP |
|
|
ISO6521REURFUNCTIONAL ISOLATIONDUAL-CHANNEL |
11,635 | - |
|
Datasheet | - | 8-TFDFN | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 1 | 1/0 | Unidirectional | 200Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-VSON (3x2) |
|
|
ISO6521FREURFUNCTIONAL ISOLATIONDUAL-CHANNEL |
2,341 | - |
|
Datasheet | - | 8-TFDFN | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 2 | 2/0 | Unidirectional | 570Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-VSON (3x2) |
Digital Isolators FAQ
Common questions about selecting, comparing and sourcing Digital Isolators components through Winsun (HK) Electronics.
What should I check when selecting Digital Isolators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Digital Isolators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Digital Isolators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Digital Isolators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
