Bridge Rectifiers
Use the filters and product table below to compare Bridge Rectifiers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BR88BRIDGE RECT 1PHASE 800V 8A BR-8 |
189 | - |
|
Datasheet | - | 4-Square, BR-8 | Bulk | Active | Single Phase | Standard | 800 V | 8 A | 1.1 V @ 4 A | 10 µA @ 600 V | -65°C ~ 125°C (TJ) | - | - | Through Hole | BR-8 |
|
KBU8BBRIDGE RECT 1PHASE 100V 8A KBU |
6,067 | - |
|
Datasheet | - | 4-SIP, KBU | Bulk | Active | Single Phase | Standard | 100 V | 8 A | 1 V @ 8 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | KBU |
|

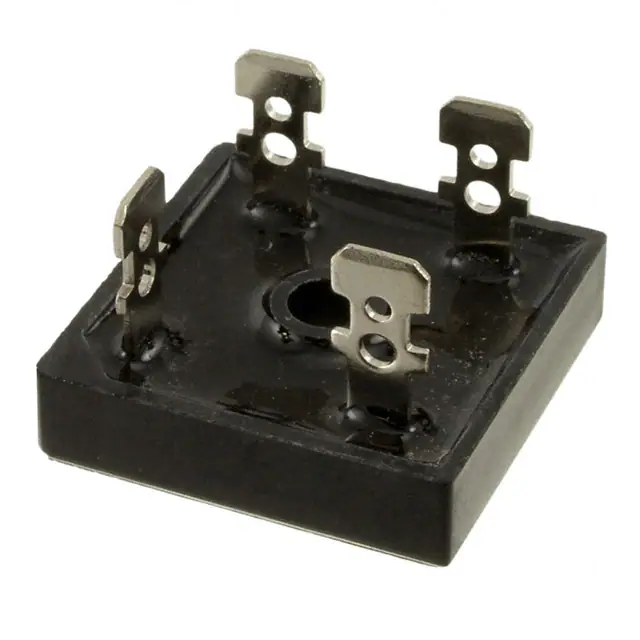

KBPC5010TBRIDGE RECT 1P 1KV 50A KBPC-T |
10 | - |
|
Datasheet | - | 4-Square, KBPC-T | Bulk | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | KBPC-T |
|
GBPC2508WBRIDGE RECT 1P 800V 25A GBPC-W |
3,064 | - |
|
Datasheet | - | 4-Square, GBPC-W | Bulk | Active | Single Phase | Standard | 800 V | 25 A | 1.1 V @ 1.2 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBPC-W |
|
GBPC2508TBRIDGE RECT 1PHASE 800V 25A GBPC |
6 | - |
|
Datasheet | - | 4-Square, GBPC | Bulk | Active | Single Phase | Standard | 800 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | GBPC |
|
|
GBPC2506WBRIDGE RECT 1P 600V 25A GBPC-W |
4,422 | - |
|
Datasheet | - | 4-Square, GBPC-W | Bulk | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBPC-W |
|
KBU1006BRIDGE RECT 1PHASE 600V 10A KBU |
5,089 | - |
|
Datasheet | - | 4-SIP, KBU | Bulk | Active | Single Phase | Standard | 600 V | 10 A | 1.05 V @ 10 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | KBU |
|
GBPC3501WBRIDGE RECT 1P 100V 35A GBPC-W |
4,550 | - |
|
Datasheet | - | 4-Square, GBPC-W | Bulk | Active | Single Phase | Standard | 100 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBPC-W |
|
|
DB102GBRIDGE RECT 1PHASE 100V 1A DB |
8,233 | - |
|
Datasheet | - | 4-EDIP (0.321", 8.15mm) | Bulk | Active | Single Phase | Standard | 100 V | 1 A | 1.1 V @ 1 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | DB |
|
|
DB105GBRIDGE RECT 1PHASE 600V 1A DB |
9,041 | - |
|
Datasheet | - | 4-EDIP (0.321", 8.15mm) | Bulk | Active | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | DB |
Bridge Rectifiers FAQ
Common questions about filtering, comparing and sourcing Bridge Rectifiers components.
How can I narrow the Bridge Rectifiers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Bridge Rectifiers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
