Bridge Rectifiers
Use the filters and product table below to compare Bridge Rectifiers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBJ2506ULV_T0_00601BRIDGE RECT 1P 600V 25A GBJ-2 |
3,575 | - |
|
Datasheet | - | 4-SIP, GBJ | Tube | Active | Single Phase | Standard | 600 V | 25 A | 920 mV @ 12.5 A | 1 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBJ-2 |
|
|
GBJ3506ULV_T0_00601BRIDGE RECT 1P 600V 35A GBJ-2 |
3,571 | - |
|
Datasheet | - | 4-SIP, GBJ | Tube | Active | Single Phase | Standard | 600 V | 35 A | 920 mV @ 17.5 A | 1 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBJ-2 |
|
B108S_R2_00001BRIDGE RECT 1PHASE 800V 1A 4-MDI |
2,990 | - |
|
Datasheet | B1005S | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 800 V | 1 A | 1.1 V @ 1 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MDI |
|
|
B106S_R2_00001BRIDGE RECT 1PHASE 600V 1A 4-MDI |
2,523 | - |
|
Datasheet | B1005S | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MDI |
|
|
B8S_R2_00001BRIDGE RECT 1P 800V 800MA 4-MDI |
2,656 | - |
|
Datasheet | B1S | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 800 V | 800 mA | 1 V @ 500 mA | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MDI |
|
|
B10S_R2_00001BRIDGE RECT 1P 1KV 800MA 4-MDI |
1,998 | - |
|
Datasheet | B1S | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 800 mA | 1 V @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MDI |
|
DXK210_T0_00001BRIDGE RECT 1PHASE 1KV 2A DXK |
4,795 | - |
|
Datasheet | - | 4-SIP | Tube | Active | Single Phase | Standard | 1 kV | 2 A | 1.05 V @ 1 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | DXK |
|
|
DXK310_T0_00001BRIDGE RECT 1PHASE 1KV 3A DXK |
5,502 | - |
|
Datasheet | - | 4-SIP | Tube | Active | Single Phase | Standard | 1 kV | 3 A | 1.05 V @ 1.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | DXK |
|
|
DXK410_T0_00001BRIDGE RECT 1PHASE 1KV 4A DXK |
5,473 | - |
|
Datasheet | - | 4-SIP | Tube | Active | Single Phase | Standard | 1 kV | 4 A | 1.05 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | DXK |
|

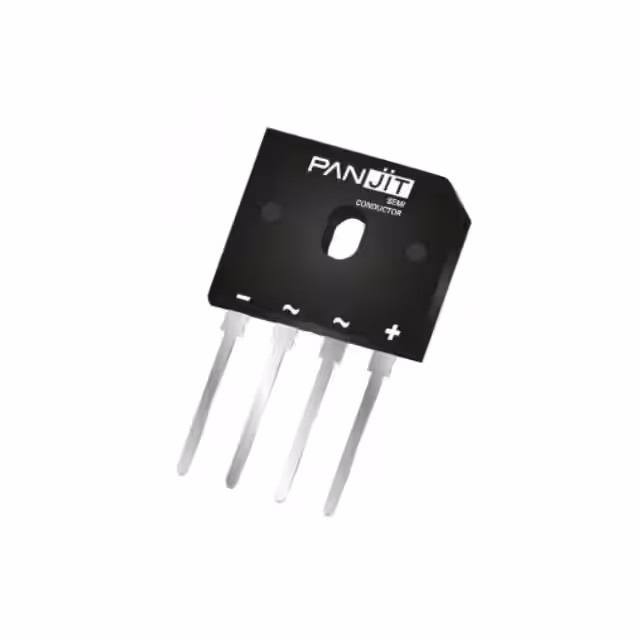

GBU610_T0_00601BRIDGE RECT 1PHASE 1KV 6A GBU-2 |
6,000 | - |
|
Datasheet | - | 4-SIP, GBU | Tube | Active | Single Phase | Standard | 1 kV | 6 A | 1.05 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBU-2 |
Bridge Rectifiers FAQ
Common questions about filtering, comparing and sourcing Bridge Rectifiers components.
How can I narrow the Bridge Rectifiers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Bridge Rectifiers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
