Bridge Rectifiers
Use the filters and product table below to compare Bridge Rectifiers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BR1006SG-GBRIDGE RECT 1PHASE 600V 10A BR-8 |
2,358 | - |
|
Datasheet | - | 4-Square, BR-8 | Bulk | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | BR-8 |
|
|
BR1010SG-GBRIDGE RECT 1PHASE 1KV 10A BR-8 |
1,734 | - |
|
Datasheet | - | 4-Square, BR-8 | Bulk | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | BR-8 |
|

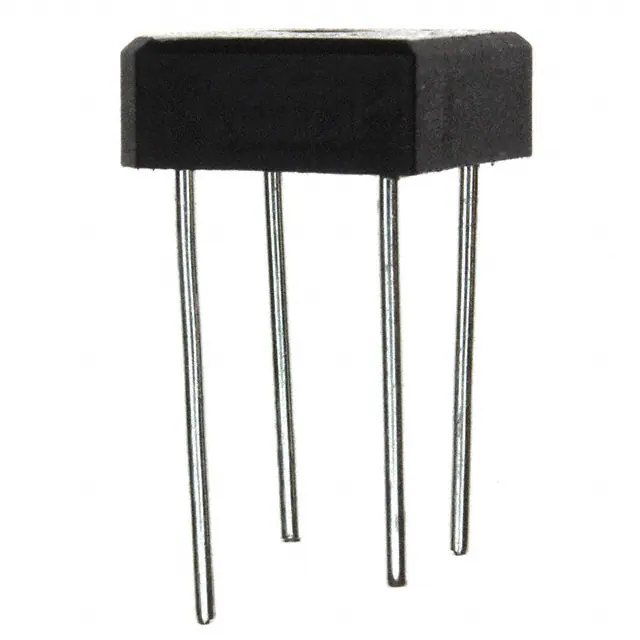

MP1004G-GBRIDGE RECT 1PHASE 400V 10A MP8 |
1,144 | - |
|
Datasheet | - | 4-Square, MP-8 | Tray | Active | Single Phase | Standard | 400 V | 10 A | 1.1 V @ 5 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | MP8 |
|

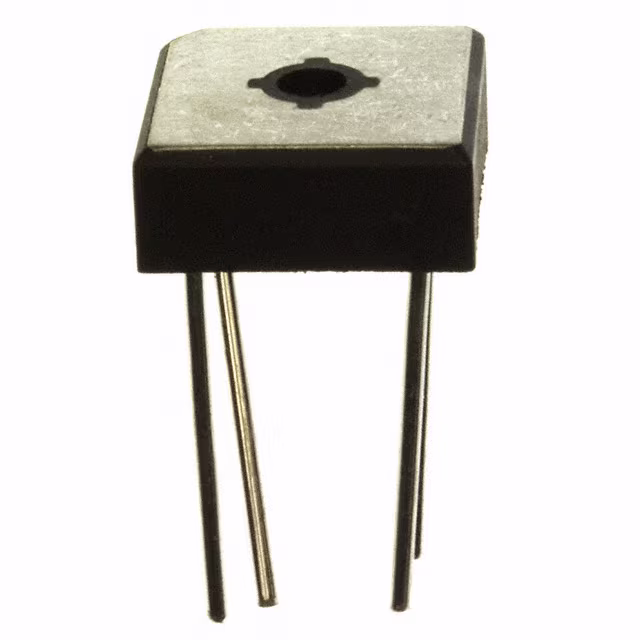

MP1010G-GBRIDGE RECT 1PHASE 1KV 10A MP8 |
1,005 | - |
|
Datasheet | - | 4-Square, MP-8 | Tray | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | MP8 |
|
GBPC3510-GBRIDGE RECT 1PHASE 1KV 35A GBPC |
2,548 | - |
|
Datasheet | - | 4-Square, GBPC | Tray | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | GBPC |
|
|
GBPC3506-GBRIDGE RECT 1PHASE 600V 35A GBPC |
842 | - |
|
Datasheet | - | 4-Square, GBPC | Tray | Active | Single Phase | Standard | 600 V | 35 A | - | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | GBPC |
|
|
GBPC5010-GBRIDGE RECT 1PHASE 1KV 50A GBPC |
2,465 | - |
|
Datasheet | - | 4-Square, GBPC | Tray | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | GBPC |
|
GBPC5006W-GBRIDGE RECT 1P 600V 50A GBPC-W |
300 | - |
|
Datasheet | - | 4-Square, GBPC-W | Tray | Active | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | GBPC-W |
|

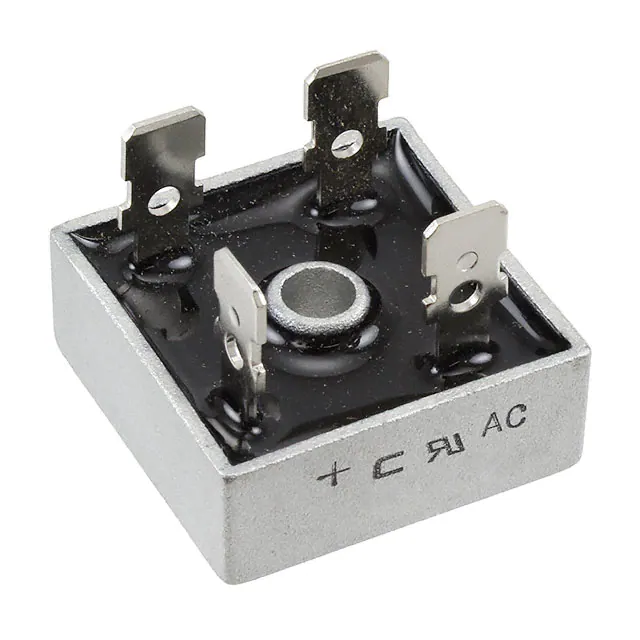

KBPC1010-GBRIDGE RECT 1PHASE 1KV 10A KBPC |
9,566 | - |
|
Datasheet | - | 4-Square, KBPC | Bulk | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | KBPC |
|

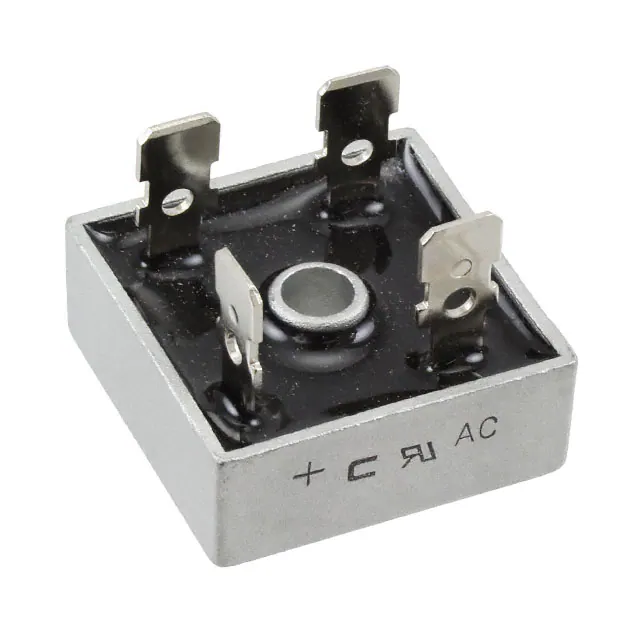

KBPC2510-GBRIDGE RECT 1PHASE 1KV 25A KBPC |
5,280 | - |
|
Datasheet | - | 4-Square, KBPC | Bulk | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | QC Terminal | KBPC |
Bridge Rectifiers FAQ
Common questions about filtering, comparing and sourcing Bridge Rectifiers components.
How can I narrow the Bridge Rectifiers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Bridge Rectifiers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
