RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MADP-000402-12530PDIODE,PIN,SURMOUNT |
9,978 | - |
|
Datasheet | MADP000402 Surmount™ | Die | Tape & Reel (TR) | Active | PIN - Single | 100V | 250 mA | 0.06pF @ 40V, 1MHz | - | 1 W | 175°C (TJ) | - | - | Die |
|
MA4P7002F-1072TRF DIODE PIN 200V 10W |
14,414 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 200V | - | - | 900mOhm @ 100mA, 100MHz | 10 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P7001F-1072TRF DIODE PIN 100V 10W |
3,086 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | - | 900mOhm @ 100mA, 100MHz | 10 W | -55°C ~ 175°C (TJ) | - | - | - |
|
MSWSE-020-05SWITCH,RF,DFN 0503 PKG |
11,675 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | PIN - Single | 250V | 500 mA | 0.65pF @ 50V, 1MHz | 500mOhm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | 0503 |
|
|
MSWSE-050-17COM PIN-SWITCH-ELEMENT, 0805P |
15,656 | - |
|
Datasheet | - | 2-SMD, 0805 | Tape & Reel (TR) | Active | PIN - Single | 500V | 500 mA | 0.25pF @ 50V, 1MHz | 750mOhm @ 100mA, 100MHz | - | 175°C (TJ) | - | - | 0805P |
|
|
MA4P1250-1072TRF DIODE PIN 100V 6W |
4,472 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 1.2pF @ 50V, 1MHz | 750mOhm @ 50mA, 100MHz | 6 W | -55°C ~ 175°C (TJ) | - | - | MELF |
|
|
MA4P7104F-1072TRF DIODE PIN 400V 11.5W |
1,661 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 400V | - | - | 500mOhm @ 100mA, 100MHz | 11.5 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P7102F-1072TRF DIODE PIN 200V 11.5W |
6,909 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 200V | - | - | 500mOhm @ 100mA, 100MHz | 11.5 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P506-1072TRF DIODE PIN 500V 15W |
1,693 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 500V | - | 1pF @ 100V, 1MHz | 300mOhm @ 100mA, 100MHz | 15 W | -65°C ~ 175°C (TJ) | - | - | - |
|
MA4P606-131RF DIODE PIN 1000V DIE |
700 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 1000V | - | 0.6pF @ 100V, 1MHz | 700mOhm @ 100mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
|
MA4P7006F-1072TRF DIODE PIN 600V 10W |
1,794 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 600V | - | - | 900mOhm @ 100mA, 100MHz | 10 W | -55°C ~ 175°C (TJ) | - | - | - |
|
MSWSE-050-10SWITCH,RF,0805P_X000D_ PKG |
1,105 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 500V | 500 mA | 0.65pF @ 50V, 1MHz | 600mOhm @ 100mA, 500MHz | 50 W | 175°C (TJ) | - | - | 0805P |
|
MA4P7464F-1072TDIODE, PIN, MRI APPLICATION |
2,420 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | PIN - Single | 400V | 250 mA | 0.8pF @ 100V, 100MHz | 500mOhm @ 100mA, 100MHz | 7.5 W | 175°C (TJ) | - | - | ODS-1072 |
|
|
MA4P1250NM-1072TRF DIODE PIN 100V 6W MELF |
7,737 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 1.2pF @ 50V, 1MHz | 750mOhm @ 50mA, 100MHz | 6 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P7470F-1072TRF DIODE PIN 800V 4W |
6,731 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 800V | 150 mA | 0.7pF @ 100V, 100MHz | 800mOhm @ 100mA, 100MHz | 4 W | 175°C (TJ) | - | - | - |
|

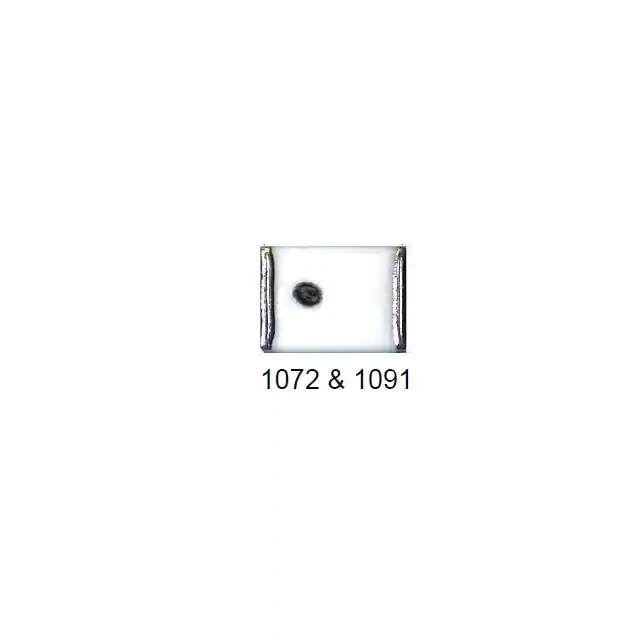

MADP-007417-10720TDIODE,PIN,MELF |
956 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | PIN - Single | 1000V | 150 mA | 0.7pF @ 100V, 100MHz | 800mOhm @ 100mA, 100MHz | 12 W | 175°C (TJ) | - | - | ODS-1072 |
|
MA4P7418-1072TSQML, PIN |
6,379 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 1100V | 150 mA | 0.8pF @ 100V, 100MHz | 1.2Ohm @ 100mA, 100MHz | 11.5 W | 175°C (TJ) | - | - | 1072 MELF |
|
MA4P4301F-1091TRF DIODE PIN 100V 5W |
21,126 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | - | 1Ohm @ 100mA, 100MHz | 5 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P4001F-1091TRF DIODE PIN 100V 7.5W |
785 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | - | 500mOhm @ 100mA, 100MHz | 7.5 W | -55°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P4006F-1091TRF DIODE PIN 600V 7.5W |
2,540 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 600V | - | - | 500mOhm @ 100mA, 100MHz | 7.5 W | -55°C ~ 175°C (TJ) | - | - | - |
