RF Diodes
Use the filters and product table below to compare RF Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSMS-282E-TR1GRF DIODE SCHOTTKY 15V SOT323 |
7,429 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Common Anode | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
5082-3039RF DIODE PIN 150V 250MW AXIAL |
9,992 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 150V | 100 mA | 0.25pF @ 50V, 1MHz | 1.25Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
5082-3077RF DIODE PIN 200V 250MW AXIAL |
9,672 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 200V | 100 mA | 0.3pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
1N5719RF DIODE PIN 150V 250MW |
8,387 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 150V | 100 mA | 0.3pF @ 100V, 1MHz | 1.25Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|

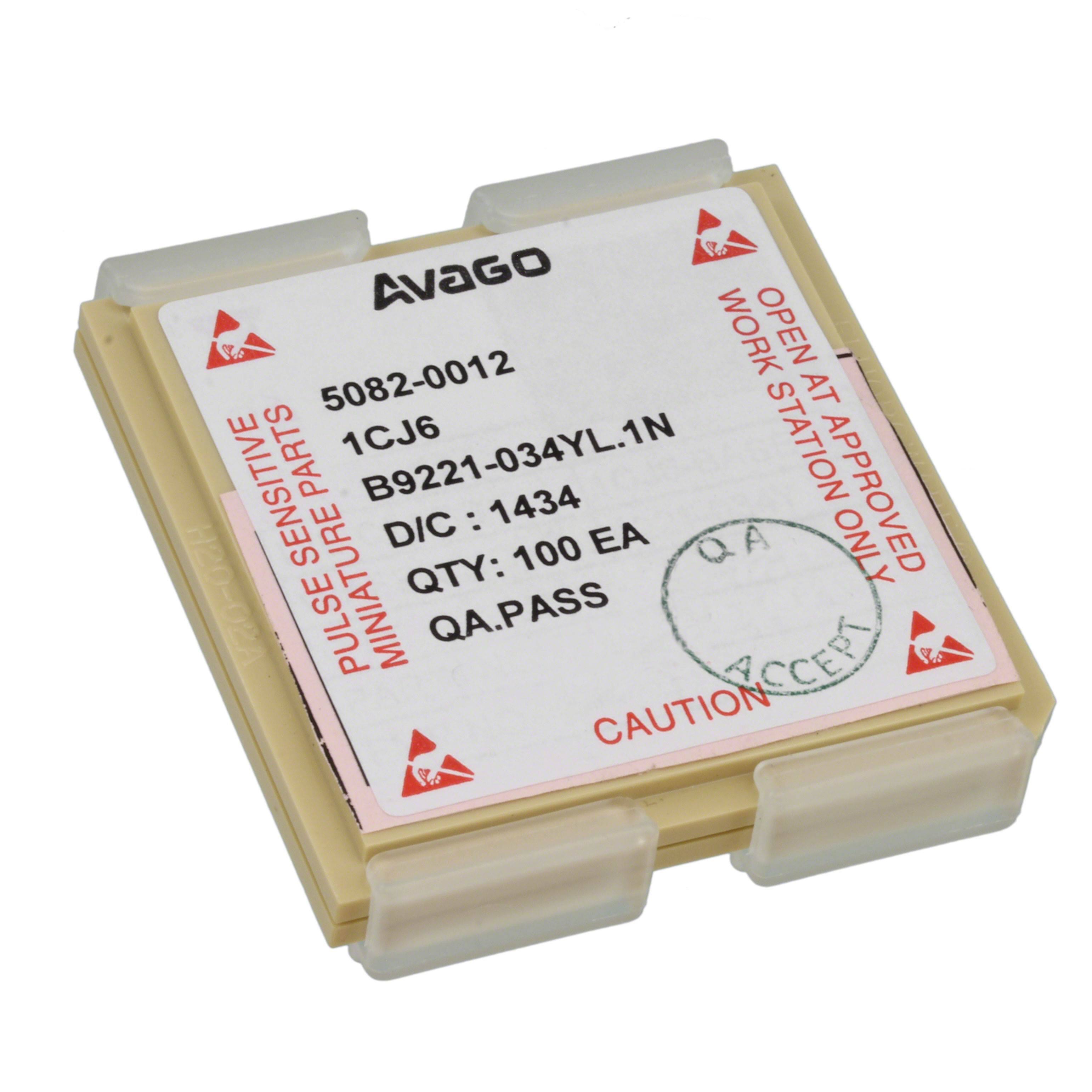

5082-0012RF DIODE PIN 150V |
2,920 | - |
|
Datasheet | - | Die | Bulk | Obsolete | PIN - Single | 150V | - | 0.12pF @ 50V, 1MHz | 1Ohm @ 100mA, 100MHz | - | -65°C ~ 150°C (TJ) | - | - | - |
|
|
1N5767RF DIODE PIN 100V 250MW |
3,439 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 100V | 100 mA | 0.4pF @ 50V, 1MHz | 2.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
5082-3379RF DIODE PIN 50V 250MW AXIAL |
6,437 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 50V | 50 mA | 0.4pF @ 50V, 1MHz | - | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
HSMS-285P-BLKGRF DIODE SCHOTTKY 2V SOT363 |
3,865 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | Schottky - 2 Pair Series Connection | 2V | - | 0.3pF @ 1V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-363 |
|
HSMS-8209-BLKGDIODE SCHOTTKY 4V 75MW SOT143-4 |
6,016 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Bulk | Obsolete | Schottky - Cross Over | 4V | - | 0.26pF @ 0V, 1MHz | 14Ohm @ 5mA, 1MHz | 75 mW | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMS-8207-BLKGDIODE SCHOTTKY 4V 75MW SOT143-4 |
8,487 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Bulk | Obsolete | Schottky - 2 Pair Series Connection | 4V | - | 0.26pF @ 0V, 1MHz | 14Ohm @ 5mA, 1MHz | 75 mW | 150°C (TJ) | - | - | SOT-143-4 |
RF Diodes FAQ
Common questions about filtering, comparing and sourcing RF Diodes components.
How can I narrow the RF Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
