RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA4PK3000DIODE,PIN,BONDED,STRIPLINE,SI |
1 | - |
|
Datasheet | KILOVOLT™ | Stud | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | - | -65°C ~ 175°C (TA) | - | - | - |
|
|
LM501202-M-C-300-RMODULE,LIMITER,SURFACE MOUNT,CS3 |
2,909 | - |
|
Datasheet | - | 2-SMD, No Lead | Bulk | Active | Schottky - 1 Pair Series Connection | - | - | - | - | 200 W | 175°C (TJ) | - | - | CS300 |
|
|
MA4PK3002DIODE,PIN,BONDED,STRIPLINE,SI,OD |
5,680 | - |
|
Datasheet | KILOVOLT™ | Die | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 75 W | -65°C ~ 175°C (TA) | - | - | Die |
|
|
LM102202-Q-A-301-RLIMITER,SURFACE MOUNT MODULE,CS3 |
9,673 | - |
|
Datasheet | - | 2-SMD Module | Bulk | Active | Schottky - 1 Pair Common Cathode | 45V | - | - | - | 125 W | 175°C (TJ) | - | - | CS301 |
|
|
MA4PK3001DIODE,PIN,BONDED,SI,ODS1084 |
5,324 | - |
|
Datasheet | KILOVOLT™ | Stud | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 75 W | -65°C ~ 175°C (TA) | - | - | - |
|
|
LM102202-H-C-301-TLIMITER,SURFACE MOUNT MODULE, SC |
3,605 | - |
|
Datasheet | - | 2-SMD Module | Bulk | Active | Schottky - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS301 |
|
|
LM102202-Q-B-301-TLIMITER,SURFACE MOUNT MODULE,CS3 |
8,050 | - |
|
Datasheet | - | 2-SMD Module | Bulk | Active | Schottky - 1 Pair Common Cathode | 45V | - | - | - | 100 W | 175°C (TJ) | - | - | CS301 |
|
|
MA4PK3004DIODE,PIN,BONDED,STRIPLINE,SI,OD |
3,438 | - |
|
Datasheet | KILOVOLT™ | 2-SMD, No Lead | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 50 W | -65°C ~ 175°C (TA) | - | - | SMD |
|
GA01PNS80-220RF DIODE PIN 8000V |
7,040 | - |
|
Datasheet | - | Axial | Tube | Active | PIN - Single | 8000V | 2 A | 4pF @ 1000V, 1MHz | - | - | -55°C ~ 175°C (TJ) | - | - | - |
|
|
LM200802-M-A-300LIMITER,SURFACE MOUNT MODULE,CS3 |
6,887 | - |
|
Datasheet | - | 2-SMD, No Lead | Bulk | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS300 |
|

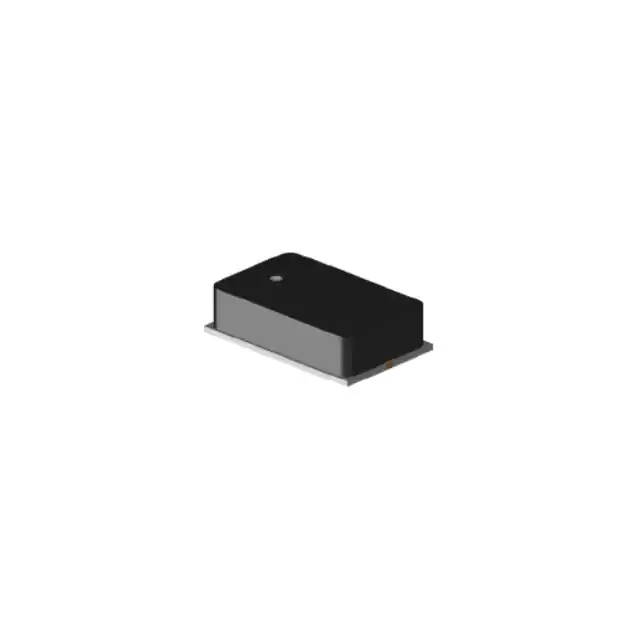

LM401102-Q-C-301-TMODULE, LIMITER, SURFACE MOUNT, |
3,314 | - |
|
Datasheet | - | 2-SMD Module | Tube | Active | PIN - Single | - | - | - | - | 100 W | 175°C (TJ) | - | - | CS301 |
|
|
MADL-011015-001LIMITER HIGH POWER 2.0 TO 4.0 GH |
9,912 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | SOT-23-3 |
|
|
MPN7302-H20DIODE,PIN-CHIP-PACKAGE, H20-2 |
5,618 | - |
|
Datasheet | - | H20 | Bulk | Active | PIN - Single | 20V | - | - | 1.5Ohm @ 10mA, 1GHz | 500 mW | -65°C ~ 175°C (TA) | - | - | H20 |
|
|
LM102202-Q-A-301-WLIMITER,SURFACE MOUNT MODULE,CS3 |
4,353 | - |
|
Datasheet | - | 2-SMD Module | Bulk | Active | Schottky - 1 Pair Common Cathode | 45V | - | - | - | 125 W | 175°C (TJ) | - | - | CS301 |
|
GA01PNS150-201SIC DIODE 15000V 1A DO-201 |
2,910 | - |
|
Datasheet | - | DO-201AD, Axial | Bulk | Active | PIN - Single | 15000V | 1 A | 22pF @ 1V, 1MHz | - | - | -55°C ~ 175°C (TJ) | - | - | DO-201 |
|
ZMS2800TADIODE SCHOTTKY 70V 250MW SOD323 |
7,493 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky - Single | 70V | 15 mA | 2pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 150°C (TJ) | - | - | SOD-323 |
|
UM9604RF DIODE PIN 400V 1.5W AXIAL |
2,737 | - |
|
Datasheet | - | Axial | Bulk | Active | PIN - Single | 400V | 100 mA | 1.2pF @ 100V, 1MHz | 600mOhm @ 100mA, 100MHz | 1.5 W | -65°C ~ 175°C (TJ) | - | - | Axial |
|
MMBV3700LT1DIODE TUNING SS 200V SOT23 |
5,203 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
HSMS-285C-BLKRF DIODE SCHOTTKY 2V SOT323 |
7,808 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | Schottky - 1 Pair Series Connection | 2V | - | 0.3pF @ 1V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-323 |
|
HMPP-3860-TR1RF DIODE PIN 50V MINIPAK |
5,429 | - |
|
Datasheet | - | 0505 (1412 Metric) | Tape & Reel (TR) | Obsolete | PIN - Single | 50V | 1 A | 0.2pF @ 50V, 1MHz | 22Ohm @ 1mA, 100MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
