RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSMP-381E-BLKGRF DIODE PIN 100V SOT323 |
3,020 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - 1 Pair Common Anode | 100V | 1 A | 0.35pF @ 50V, 1MHz | 3Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMP-381C-BLKGRF DIODE PIN 100V SOT323 |
4,553 | - |
|
Datasheet | - | SC-70, SOT-323 | Strip | Obsolete | PIN - 1 Pair Series Connection | 100V | 1 A | 0.35pF @ 50V, 1MHz | 3Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
HSMP-3895-BLKGRF DIODE PIN 100V SOT143-4 |
3,708 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Bulk | Obsolete | PIN - 2 Independent | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMP-381F-BLKGRF DIODE PIN 100V SOT323 |
2,879 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - 1 Pair Common Cathode | 100V | 1 A | 0.35pF @ 50V, 1MHz | 3Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
HMPP-3862-BLKRF DIODE PIN 50V MINIPAK |
9,273 | - |
|
Datasheet | - | 0505 (1412 Metric) | Bulk | Obsolete | PIN - 2 Independent | 50V | 1 A | 0.2pF @ 50V, 1MHz | 22Ohm @ 1mA, 100MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
|

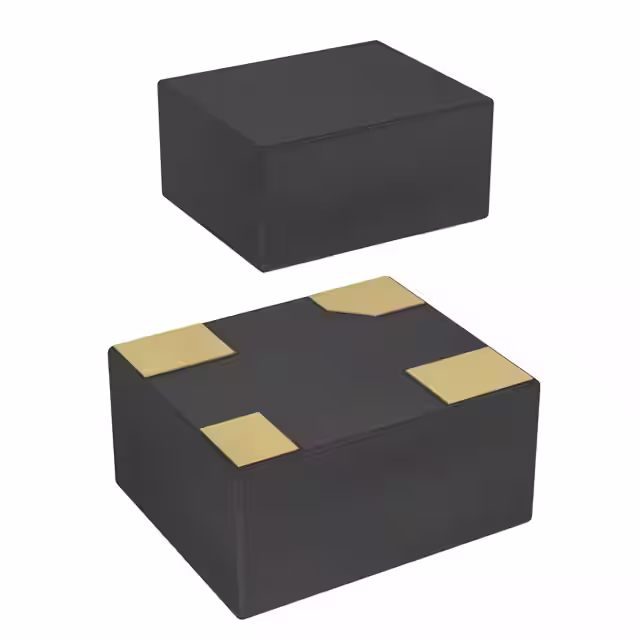

HMPS-2822-BLKRF DIODE SCHOTTKY 15V MINIPAK |
3,728 | - |
|
Datasheet | - | 4-UQFN | Bulk | Obsolete | Schottky - 2 Independent | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
|
HMPS-2825-BLKRF DIODE SCHOTTKY 15V MINIPAK |
4,822 | - |
|
Datasheet | - | 4-UQFN | Bulk | Obsolete | Schottky - 2 Independent | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
|
|
HSMP-386F-BLKGRF DIODE PIN 50V SOT323 |
2,927 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - 1 Pair Common Cathode | 50V | 1 A | 0.2pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMP-386E-BLKGRF DIODE PIN 50V SOT323 |
6,168 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - 1 Pair Common Anode | 50V | 1 A | 0.2pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMP-482B-BLKGRF DIODE PIN 50V SOT323 |
4,060 | - |
|
Datasheet | - | SC-70, SOT-323 | Strip | Obsolete | PIN - Single | 50V | 1 A | 0.75pF @ 20V, 1MHz | 600mOhm @ 10mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
HSMS-280K-BLKGRF DIODE SCHOTTKY 70V SOT363 |
7,798 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | Schottky - 1 Pair Isolated | 70V | 1 A | 2pF @ 0V, 1MHz | 35Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMP-489B-BLKGRF DIODE PIN 100V SOT323 |
8,809 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - Single | 100V | 1 A | 0.375pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HMPP-3865-BLKRF DIODE PIN 50V MINIPAK |
2,651 | - |
|
Datasheet | - | 0505 (1412 Metric) | Bulk | Obsolete | PIN - 2 Independent | 50V | 1 A | 0.2pF @ 50V, 1MHz | 22Ohm @ 1mA, 100MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
|
HSMP-4810-BLKGRF DIODE PIN 100V SOT23-3 |
8,828 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Strip | Obsolete | PIN - Single | 100V | 1 A | 0.4pF @ 50V, 1MHz | 3Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMP-481B-BLKGRF DIODE PIN 100V SOT323 |
2,187 | - |
|
Datasheet | - | SC-70, SOT-323 | Strip | Obsolete | PIN - Single | 100V | 1 A | 0.4pF @ 50V, 1MHz | 3Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMS-282C-BLKGRF DIODE SCHOTTKY 15V SOT323 |
6,453 | - |
|
Datasheet | - | SC-70, SOT-323 | Strip | Obsolete | Schottky - 1 Pair Series Connection | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMP-389T-BLKGRF DIODE PIN 100V SOT363 |
7,705 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | PIN - Single | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-286B-BLKGRF DIODE SCHOTTKY 4V SOT323 |
9,167 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | Schottky - Single | 4V | - | 0.25pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMS-2860-BLKGRF DIODE SCHOTTKY 4V SOT23-3 |
4,721 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Strip | Obsolete | Schottky - Single | 4V | - | 0.3pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMP-386C-BLKGRF DIODE PIN 50V SOT323 |
2,102 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Obsolete | PIN - 1 Pair Series Connection | 50V | 1 A | 0.2pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
