Electrical, Specialty Fuses
Browse available Electrical, Specialty Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F03A250V5AFUSE GOVT 250V |
131 | - |
|
Datasheet | - | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Discontinued at Digi-Key | Requires Holder | - | - | - | - | - | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | - | - |
|
0090.0020FUSE CARTRIDGE 20A 1KVDC 5AG |
762 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.0003FUSE CARTRIDGE 3A 1KVDC 5AG |
652 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.0005FUSE CARTRIDGE 5A 1KVDC 5AG |
126 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
LVSP0020TX2FUSE CARTRIDGE 20A 600VAC 5AG |
154 | - |
|
Datasheet | POWR-GARD® LVSP | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | - | Slow Blow | TVSS Protection | - | - | UR | - | 200kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

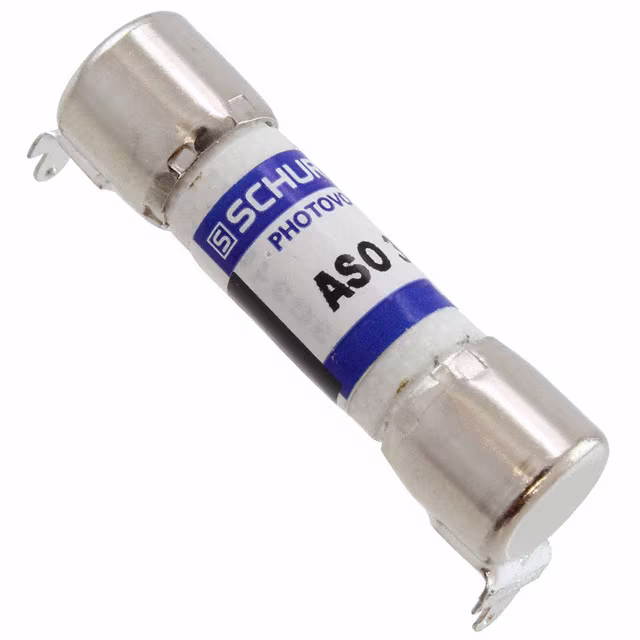

0090.1030FUSE CARTRIDGE 30A 1KVDC 5AG |
664 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|

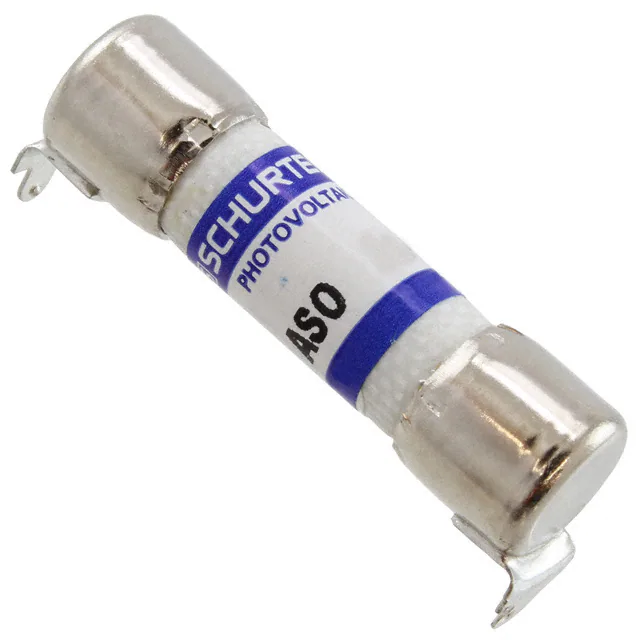

0090.1003FUSE CARTRIDGE 3A 1KVDC 5AG |
409 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
0HEV030.ZXPCBLFUSE CARTRIDGE 30A 450VDC 5AG |
345 | - |
|
Datasheet | LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
0304.080HRFUSE BRD MNT 80MA 277VAC/DC 2SMD |
136 | - |
|
Datasheet | PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 80mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
0HEV030.ZXISOFUSE CARTRIDGE 30A 450VDC BOLT |
1,435 | - |
|
Datasheet | LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 30A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.492" L (10.30mm x 37.90mm) | - | - |
|
0HEV020.ZXBDFUSE CARTRIDGE 20A 450VDC BOLT |
318 | - |
|
Datasheet | LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 20A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | - | - |
|
0SPF020.HFUSE CARTRIDGE 20A 1KVDC 5AG |
160 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
CCMR6.25TXPFUSE CRTRDGE 6.25A 600VAC/250VDC |
211 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6.25A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FWA-30A10FFUSE CRTRDGE 30A 150VAC/VDC 5AG |
294 | - |
|
Datasheet | FWA | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 150 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0KLK008.TFUSE CARTRIDGE 8A 600VAC/500VDC |
187 | - |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK025.TFUSE CARTRIDGE 25A 600VAC/500VDC |
171 | - |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKD025.TFUSE CARTRIDGE 25A 600VAC/VDC |
101 | - |
|
Datasheet | POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 25A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKR.500TFUSE CRTRDGE 500MA 600VAC/300VDC |
210 | - |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 500mA | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLM-3FUSE CARTRIDGE 3A 600VAC/VDC 5AG |
163 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR07.5TXPFUSE CRTRDGE 7.5A 600VAC/250VDC |
3,307 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 7.5A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
Electrical, Specialty Fuses FAQ
Common questions about selecting, comparing and sourcing Electrical, Specialty Fuses components through Winsun (HK) Electronics.
What should I check when selecting Electrical, Specialty Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Electrical, Specialty Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Electrical, Specialty Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Electrical, Specialty Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
