Electrical, Specialty Fuses
Browse available Electrical, Specialty Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0242.040URFUSE CRTRDGE 40MA 250VAC/VDC |
22,856 | - |
|
Datasheet | 242 | Cartridge, Non-Standard | Tape & Reel (TR) | Active | Surface Mount | Cartridge | 40mA | 250 VAC | 250 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | - | - |
|

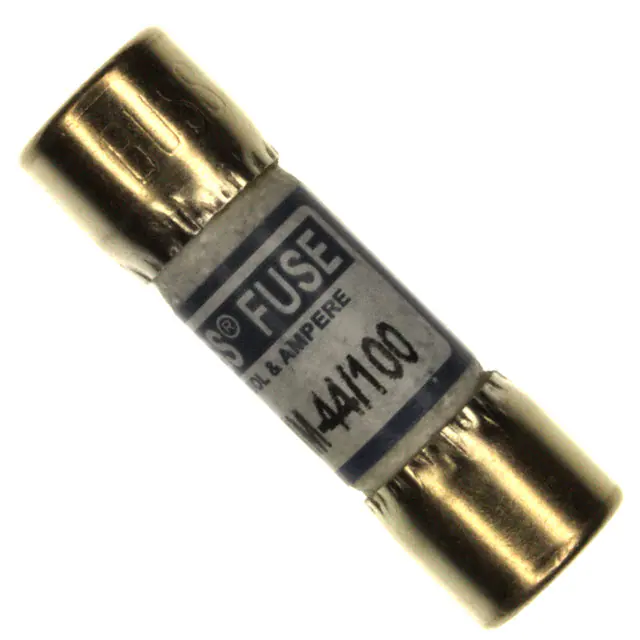

943121FUSE CARTRIDGE 440MA 1KVAC |
480 | - |
|
Datasheet | - | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|

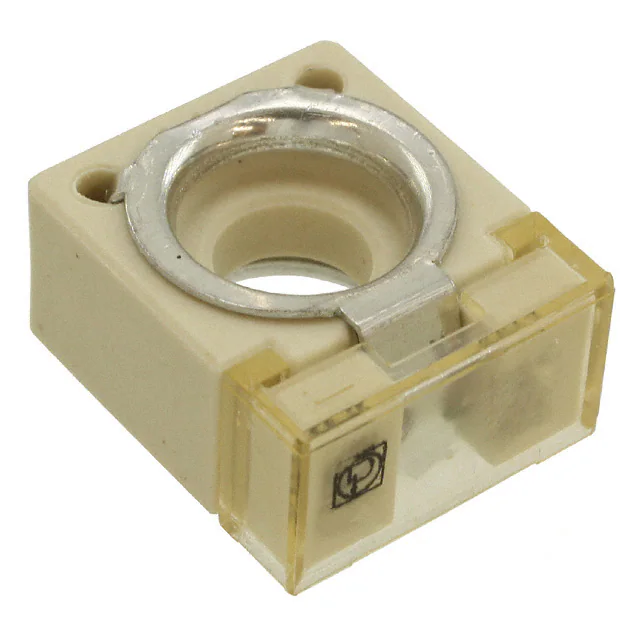

155.0892.6101FUSE SQUARE 100A 58VDC RECT |
2,544 | - |
|
Datasheet | CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 100A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|

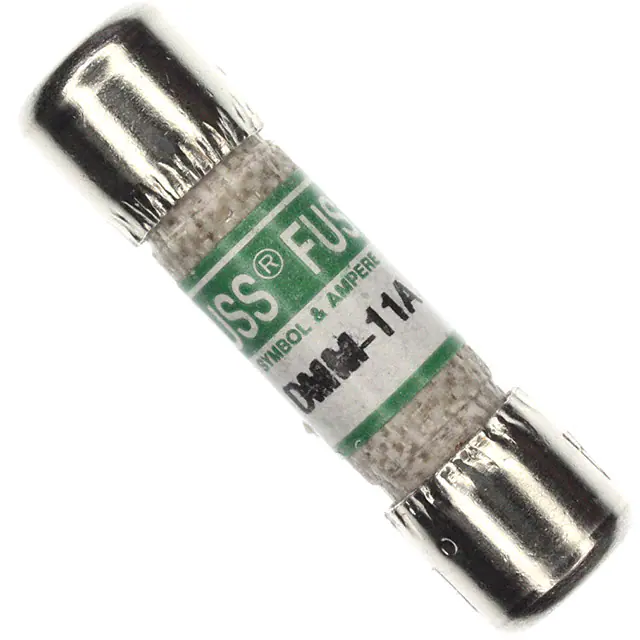

803293FUSE CARTRIDGE 11A 1KVAC 5AG |
4,315 | - |
|
Datasheet | - | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|

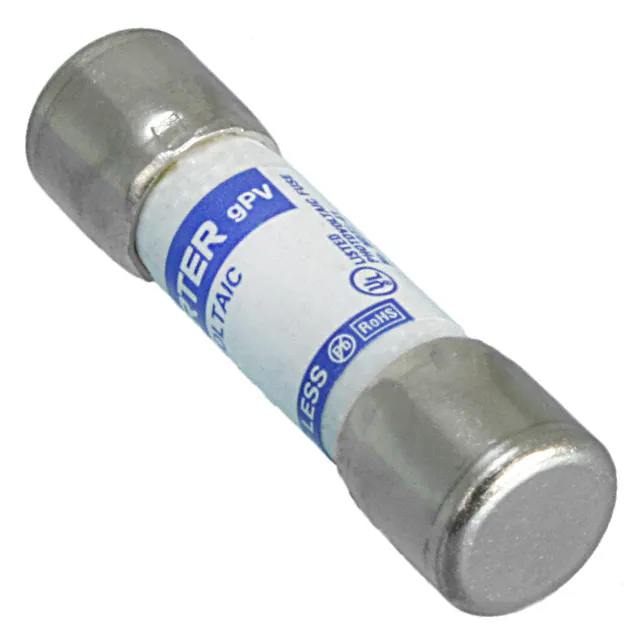

0090.0015FUSE CARTRIDGE 15A 1KVDC 5AG |
338 | - |
|
Datasheet | ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|

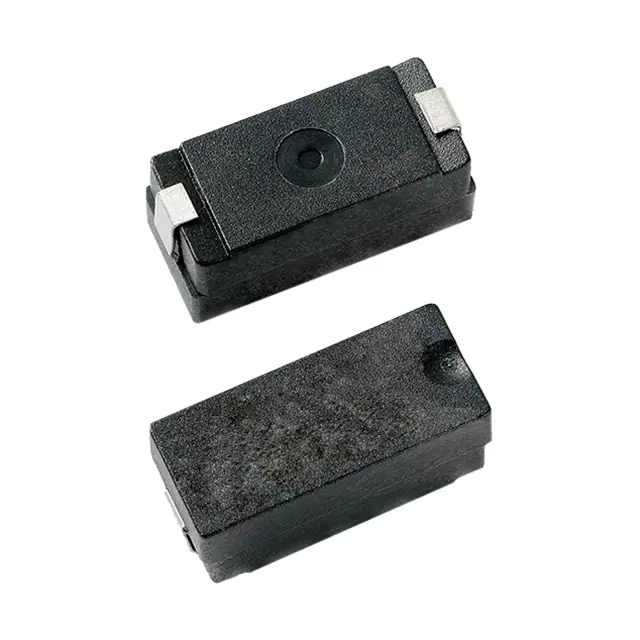

0304.100HRFUSE BRD MNT 100MA 277VAC/DC SMD |
236 | - |
|
Datasheet | PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 100mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|

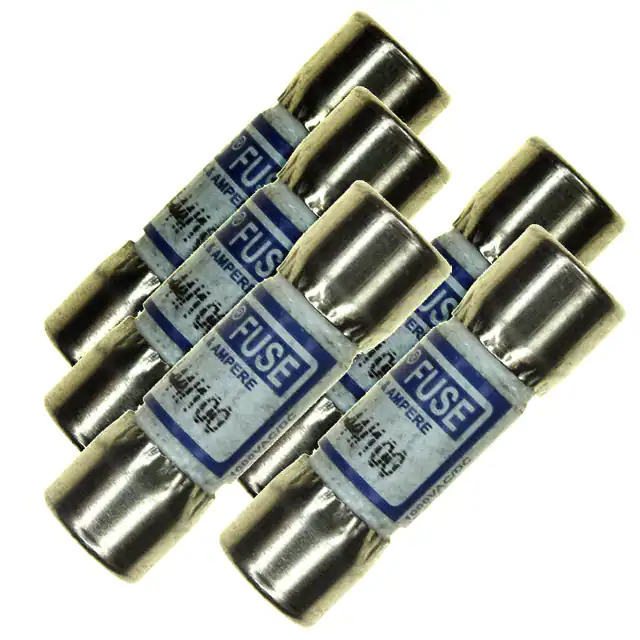

203414FUSE CARTRIDGE 440MA 1KVAC 5PK |
119 | - |
|
Datasheet | - | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | - | - | - |
|
SPXV015.LFUSE CARTRIDGE 15A 1.5KVDC |
537 | - |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
KLKR030.TFUSE CARTRIDGE 30A 600VAC/300VDC |
184 | - |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SPF030.TFUSE CARTRIDGE 30A 1KVDC 5AG |
136 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF001.TFUSE CARTRIDGE 1A 1KVDC 5AG |
116 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0KLK020.TFUSE CARTRIDGE 20A 600VAC/500VDC |
150 | - |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV006.TFUSE CARTRIDGE 6A 1.5KVDC |
153 | - |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 6A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
KLKD002.TFUSE CARTRIDGE 2A 600VAC/VDC |
115 | - |
|
Datasheet | POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 2A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
CCMR030.TXPFUSE CARTRIDGE 30A 600VAC/500VDC |
1,059 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR010.TXPFUSE CARTRIDGE 10A 600VAC/250VDC |
1,032 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR015.TXPFUSE CARTRIDGE 15A 600VAC/500VDC |
291 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR025.TXPFUSE CARTRIDGE 25A 600VAC/500VDC |
120 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR020.TXPFUSE CARTRIDGE 20A 600VAC/500VDC |
4,628 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SPF012.HXRFUSE CARTRIDGE 12A 1KVDC 5AG |
139 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 12A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
