Electrical, Specialty Fuses
Use the filters and product table below to compare Electrical, Specialty Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA130URD71TTI0280FUSE SQUARE 280A 1.3KVAC RECT |
8,889 | - |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 280A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.913" L x 2.008" W x 2.206" H (74.00mm x 51.00mm x 56.03mm) | - | - |
|
|
LA070URD31TTI0700FUSE SQUARE 700A 700VAC RECT |
6,329 | - |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 700A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 2.000" W x 2.264" H (50.60mm x 50.80mm x 57.50mm) | - | - |
|
|
LA070URD31TTI0800FUSE SQUARE 800A 700VAC RECT |
9,729 | - |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 800A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 2.000" W x 2.264" H (50.60mm x 50.80mm x 57.50mm) | - | - |
|
PSR031UL0630ZFUSE SQUARE 630A 700VAC/600VDC |
2,225 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
PSR031DL0700ZFUSE SQUARE 700A 700VAC/600VDC |
5,130 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|

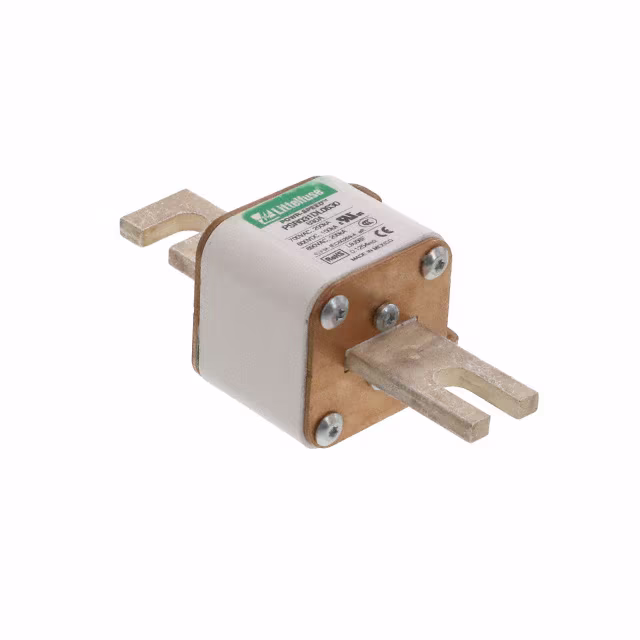

PSR031DL0630ZFUSE SQUARE 630A 700VAC/600VDC |
8,976 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
|
0JTD110.XXIDFUSE CRTRDGE 110A 600VAC/500VDC |
4,728 | - |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 110A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
|
LA070URD32KI0700FUSE SQUARE 700A 700VAC RECT |
8,624 | - |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 700A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|
PSR071UL0350ZFUSE SQUARE 350A 1.3KVAC/1KVDC |
3,290 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
PSR071DL0160ZFUSE SQUARE 160A 1.3KVAC/1KVDC |
5,988 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 160A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
Electrical, Specialty Fuses FAQ
Common questions about filtering, comparing and sourcing Electrical, Specialty Fuses components.
How can I narrow the Electrical, Specialty Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Electrical, Specialty Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
