Electrical, Specialty Fuses
Browse available Electrical, Specialty Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0SPF005.HXRFUSE CARTRIDGE 5A 1KVDC 5AG |
4,041 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 5A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

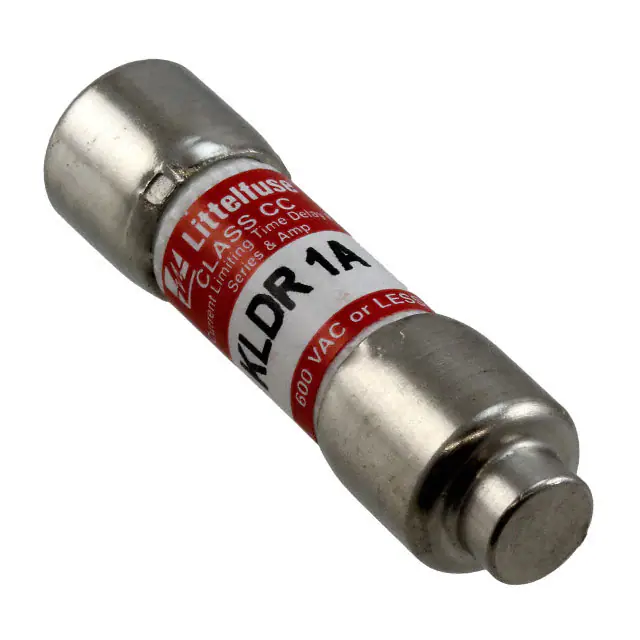

KLDR001.TXPFUSE CARTRIDGE 1A 600VAC/300VDC |
129 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR025.TXPFUSE CARTRIDGE 25A 600VAC/300VDC |
2,651 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

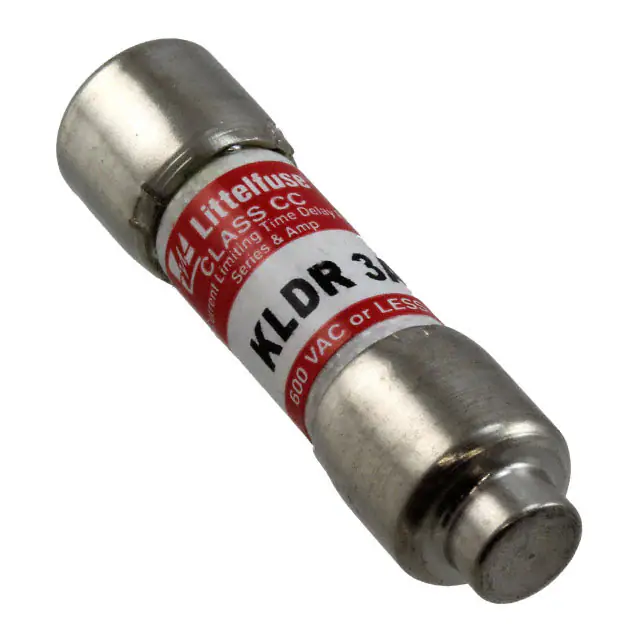

KLDR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
1,617 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 3A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
PV-15A10FFUSE CARTRIDGE 15A 1KVDC 5AG |
4,835 | - |
|
Datasheet | PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
KTK-R-2FUSE CARTRIDGE 2A 600VAC 5AG |
1,126 | - |
|
Datasheet | Limitron™ KTK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

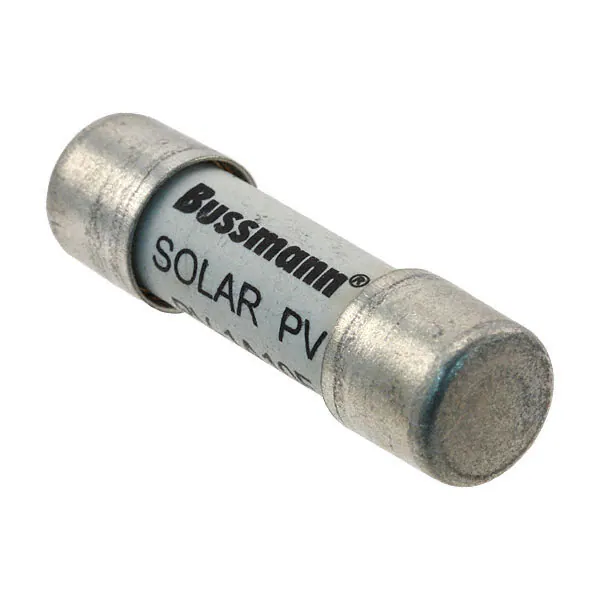

PV-1A10FFUSE CARTRIDGE 1A 1KVDC 5AG |
2,643 | - |
|
Datasheet | PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
KTK-R-30FUSE CRTRDGE 30A 600VAC CYLINDER |
2,099 | - |
|
Datasheet | Limitron™ KTK-R | Cylinder | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

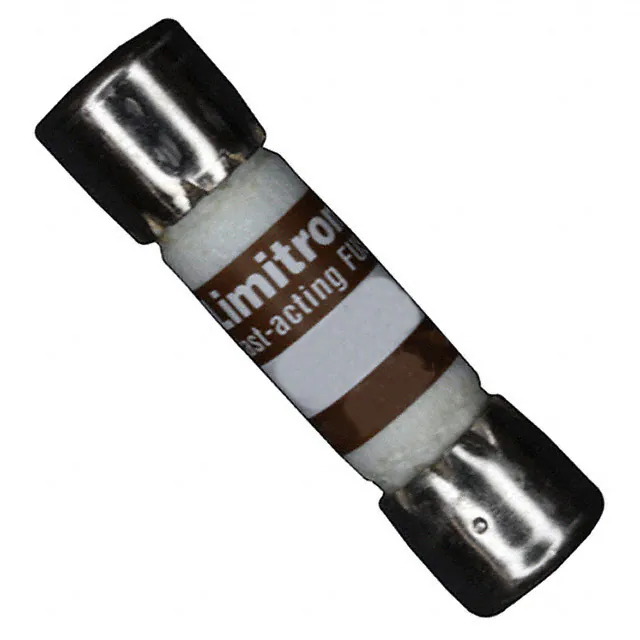

KTK-15FUSE CARTRIDGE 15A 600VAC 5AG |
1,168 | - |
|
Datasheet | KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
HSJ40FUSE,CLASS J,HIGH SPEED,200KA AC |
1,567 | - |
|
Datasheet | HSJ | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 40A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.063" Dia x 2.362" L (27.00mm x 60.00mm) | - | - |
|
KLM-10FUSE CRTRDGE 10A 600VAC/VDC 5AG |
148 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLM-5FUSE CARTRIDGE 5A 600VAC/VDC 5AG |
4,537 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FNQ-R-10FUSE CARTRIDGE 10A 600VAC 5AG |
1,288 | - |
|
Datasheet | Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
PF-FB1-75FUSE BOLT MNT 800VAC 800VDC 75A |
4,920 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 75A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
|
PF-FB1-50FUSE BOLT MNT 800VAC 800VDC 50A |
4,894 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
JJS-60FUSE CARTRIDGE 60A 600VAC |
4,985 | - |
|
Datasheet | Limitron™ JJS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 0.810" Dia x 1.560" W (20.57mm x 39.62mm) | - | - |
|

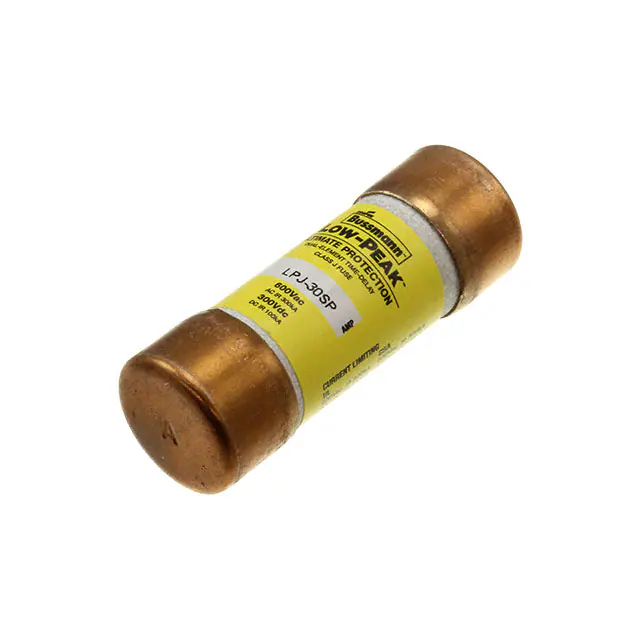

LPJ-30SPFUSE CARTRIDGE 30A 600VAC/300VDC |
3,405 | - |
|
Datasheet | LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
|
PF-FB1-100FUSE BOLT MNT 800VAC 800VDC 100A |
2,896 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
JJS-40FUSE CARTRIDGE 40A 600VAC |
4,362 | - |
|
Datasheet | Limitron™ JJS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 0.810" Dia x 1.560" W (20.57mm x 39.62mm) | - | - |
|

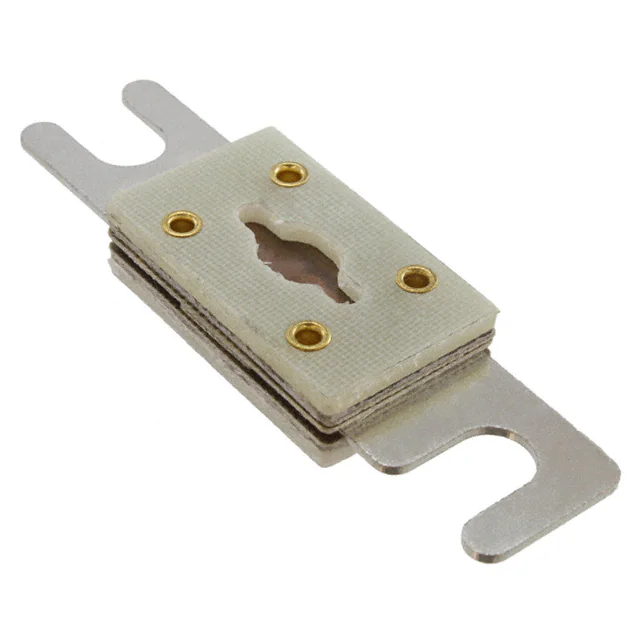

0CNN800E.VFUSE STRP 800A 125VAC/80VDC BOLT |
3,075 | - |
|
Datasheet | POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
Electrical, Specialty Fuses FAQ
Common questions about selecting, comparing and sourcing Electrical, Specialty Fuses components through Winsun (HK) Electronics.
What should I check when selecting Electrical, Specialty Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Electrical, Specialty Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Electrical, Specialty Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Electrical, Specialty Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
