CPLDs (Complex Programmable Logic Devices)
Use the filters and product table below to compare CPLDs (Complex Programmable Logic Devices) components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CY37512VP208-66NXIIC CPLD 512MC 20NS 208QFP |
3,734 | - |
|
Datasheet | Ultra37000™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 512 | - | 165 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
CY37512VP208-83NXCIC CPLD 512MC 15NS 208QFP |
4,735 | - |
|
Datasheet | Ultra37000™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 15 ns | 3V ~ 3.6V | - | 512 | - | 165 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
CY39100V208B-200NTXCIC CPLD 1536MC 7.5NS 208QFP |
3,473 | - |
|
Datasheet | Delta 39K™ ISR™ | 208-BFQFP | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 7.5 ns | 2.5V, 3.3V | - | 1536 | 144000 | 136 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
.jpg "CY37032VP44-100JXI")
|
CY37032VP44-100JXIIC CPLD 32MC 12NS 44PLCC |
3,189 | - |
|
Datasheet | Ultra37000™ | 44-LCC (J-Lead) | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 32 | - | 37 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.61x16.61) |
|
CY37256P256-154BGCIC CPLD 256MC 7.5NS 292BGA |
1,069 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 7.5 ns | 4.75V ~ 5.25V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37256VP256-100BGCIC CPLD 256MC 12NS 292BGA |
4,975 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|

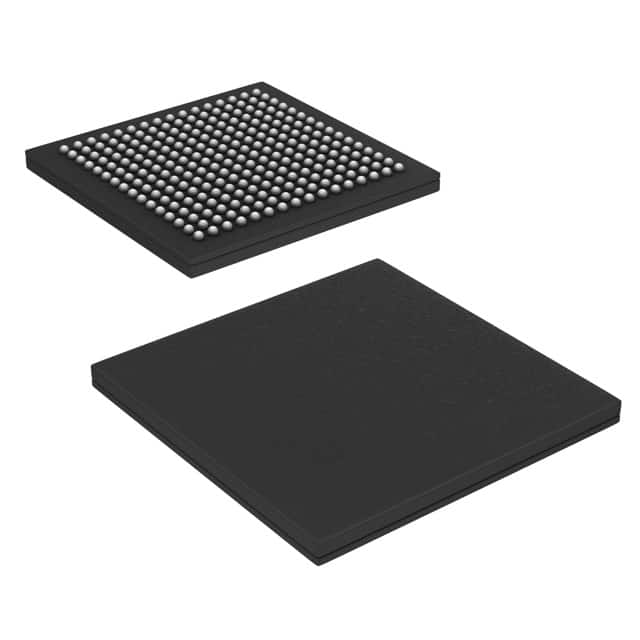

CY37256VP256-66BBCIC CPLD 256MC 20NS 256FBGA |
4,670 | - |
|
Datasheet | Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37256VP256-66BBIIC CPLD 256MC 20NS 256FBGA |
3,427 | - |
|
Datasheet | Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37512P256-100BGIIC CPLD 512MC 12NS 292BGA |
2,122 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 4.5V ~ 5.5V | - | 512 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37512VP256-66BGCIC CPLD 512MC 20NS 292BGA |
3,332 | - |
|
Datasheet | Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 512 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
CPLDs (Complex Programmable Logic Devices) FAQ
Common questions about filtering, comparing and sourcing CPLDs (Complex Programmable Logic Devices) components.
How can I narrow the CPLDs (Complex Programmable Logic Devices) selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific CPLDs (Complex Programmable Logic Devices) part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
