CPLDs (Complex Programmable Logic Devices)
Use the filters and product table below to compare CPLDs (Complex Programmable Logic Devices) components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATF1504ASL-25AU100IC CPLD 64MC 25NS 100TQFP |
109 | - |
|
Datasheet | ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1504AS-7JX44IC CPLD 64MC 7.5NS 44PLCC |
232 | - |
|
Datasheet | ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 64 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF2500C-15JUIC CPLD 24MC 15NS 44PLCC |
1,312 | - |
|
Datasheet | ATF2500C(L) | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable | 15 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|

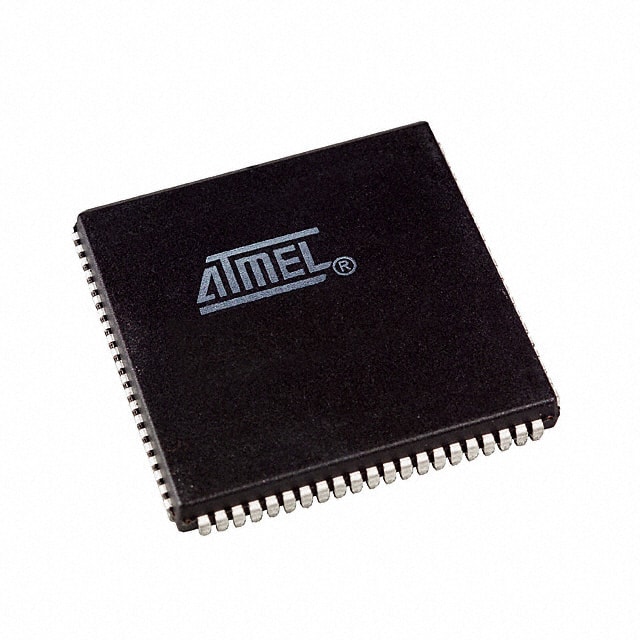

ATF1508ASL-25JU84IC CPLD 128MC 25NS 84PLCC |
147 | - |
|
Datasheet | ATF15xx | 84-LCC (J-Lead) | Tube | Last Time Buy | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 128 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1508AS-10JU84IC CPLD 128MC 10NS 84PLCC |
152 | - |
|
Datasheet | ATF15xx | 84-LCC (J-Lead) | Tube | Last Time Buy | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1508ASL-25AU100IC CPLD 128MC 25NS 100TQFP |
125 | - |
|
Datasheet | ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1502AS-7JX44IC CPLD 32MC 7.5NS 44PLCC |
584 | - |
|
Datasheet | ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF1500A-10JUIC CPLD 32MC 10NS 44PLCC |
435 | - |
|
Datasheet | ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 100 program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF1500AL-20JUIC CPLD 32MC 20NS 44PLCC |
255 | - |
|
Datasheet | ATF15xx | 44-LCC (J-Lead) | Tube | Active | Verified | In System Programmable (min 100 program/erase cycles) | 20 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
.jpg "ATF750CL-15JU")
|
ATF750CL-15JUIC CPLD 10MC 15NS 28PLCC |
536 | - |
|
Datasheet | ATF750C(L) | 28-LCC (J-Lead) | Tube | Active | Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | - | 10 | - | 10 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
