CPLDs (Complex Programmable Logic Devices)
Browse available CPLDs (Complex Programmable Logic Devices) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4128ZE-7TN100CIC CPLD 128MC 7.5NS 100TQFP |
718 | - |
|
Datasheet | ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4128ZE-7TN100IIC CPLD 128MC 7.5NS 100TQFP |
701 | - |
|
Datasheet | ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM240GF100C5NIC CPLD 192MC 4.7NS 100FBGA |
111 | - |
|
Datasheet | MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.71V ~ 1.89V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
LC4128V-10TN144IIC CPLD 128MC 10NS 144TQFP |
1,071 | - |
|
Datasheet | ispMACH® 4000V | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 8 | 128 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
LC4256ZE-7TN100CIC CPLD 256MC 7.5NS 100TQFP |
242 | - |
|
Datasheet | ispMACH® 4000ZE | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4256ZC-75TN100CIC CPLD 256MC 7.5NS 100TQFP |
372 | - |
|
Datasheet | ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM570GT100C5NIC CPLD 440MC 5.4NS 100TQFP |
170 | - |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 1.71V ~ 1.89V | 570 | 440 | - | 76 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
5M2210ZF256C4NIC CPLD 1700MC 7NS 256FBGA |
619 | - |
|
Datasheet | MAX® V | 256-LBGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 203 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
LC4256V-10TN176IIC CPLD 256MC 10NS 176TQFP |
946 | - |
|
Datasheet | ispMACH® 4000V | 176-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 16 | 256 | - | 128 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 176-TQFP (24x24) |
|
|
EPM570F100I5IC CPLD 440MC 5.4NS 100FBGA |
237 | - |
|
Datasheet | MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 100°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|

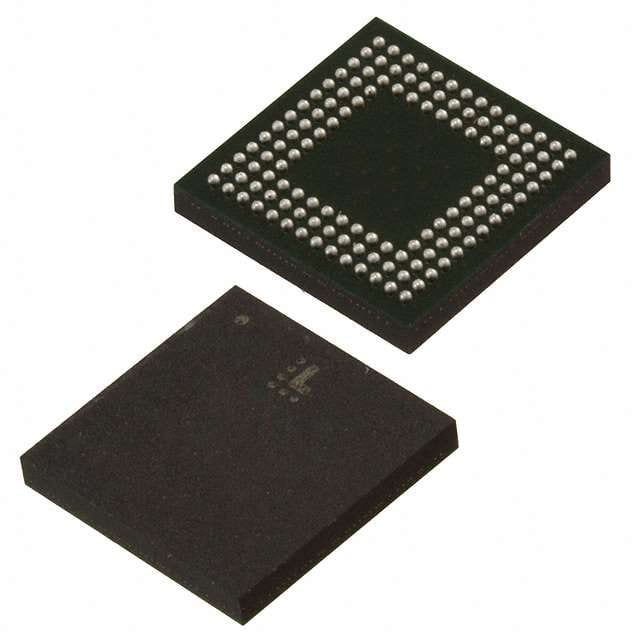

LC4256ZC-75MN132IIC CPLD 256MC 7.5NS 132CSBGA |
1,615 | - |
|
Datasheet | ispMACH® 4000Z | 132-LFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 16 | 256 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 132-CSBGA (8x8) |
|
|
EPM570T100A5NIC CPLD 440MC 5.4NS 100TQFP |
260 | - |
|
Datasheet | MAX® II | 100-TQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 76 | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM1270GT144C5NIC CPLD 980MC 6.2NS 144TQFP |
161 | - |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 1.71V ~ 1.89V | 1270 | 980 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM570T144C4NIC CPLD 440MC 5.4NS 144TQFP |
166 | - |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM2210GF256C5NIC CPLD 1700MC 7NS 256FBGA |
1,256 | - |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 7 ns | 1.71V ~ 1.89V | 2210 | 1700 | - | 204 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|
ATF2500C-20KMIC CPLD 24MC 20NS 44JLCC |
2,866 | - |
|
Datasheet | ATF2500C(L) | 44-CLCC (J-Lead) | Tube | Active | Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -55°C ~ 125°C (TC) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
EPM570T144C3NIC CPLD 440MC 5.4NS 144TQFP |
177 | - |
|
Datasheet | MAX® II | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 5.4 ns | 2.5V, 3.3V | 570 | 440 | - | 116 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM1270F256C4NIC CPLD 980MC 6.2NS 256FBGA |
185 | - |
|
Datasheet | MAX® II | 256-BGA | Tray | Active | Not Verified | In System Programmable | 6.2 ns | 2.5V, 3.3V | 1270 | 980 | - | 212 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 256-FBGA (17x17) |
|

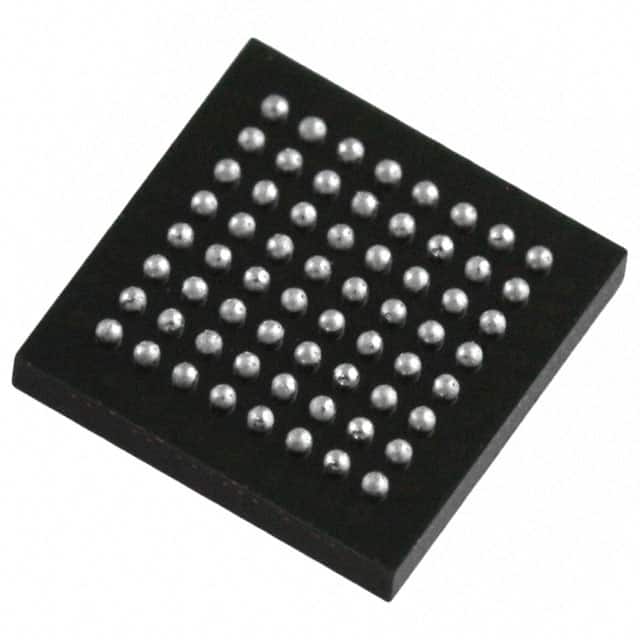

LC4032ZE-7MN64CIC CPLD 32MC 7.5NS 64CSBGA |
2,450 | - |
|
Datasheet | ispMACH® 4000ZE | 64-TFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 64-CSBGA (5x5) |
|
LC4032ZC-75TN48CIC CPLD 32MC 7.5NS 48TQFP |
226 | - |
|
Datasheet | ispMACH® 4000Z | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
CPLDs (Complex Programmable Logic Devices) FAQ
Common questions about selecting, comparing and sourcing CPLDs (Complex Programmable Logic Devices) components through Winsun (HK) Electronics.
What should I check when selecting CPLDs (Complex Programmable Logic Devices) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific CPLDs (Complex Programmable Logic Devices) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for CPLDs (Complex Programmable Logic Devices) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
