PLDs (Programmable Logic Device)
Use the filters and product table below to compare PLDs (Programmable Logic Device) components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Number of Macrocells | Voltage - Input | Speed | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/50501BLAHIGH-PERFORMANCE IMPACT PAL CIRC |
1,578 | - |
|
Datasheet | IMPACT-X™ PAL® | 24-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Through Hole | 24-CDIP |
|

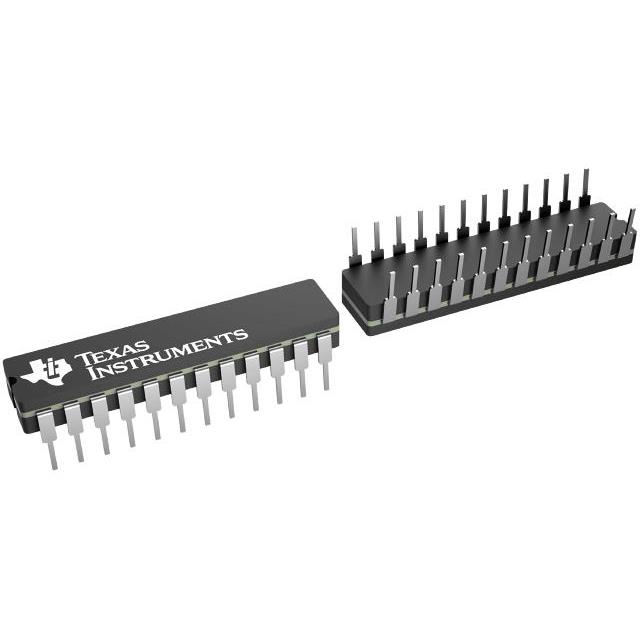

8412901XAHIGH-PERFORMANCE IMPACT PAL CIRC |
1,300 | - |
|
Datasheet | IMPACT-X™ PAL® | 28-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Surface Mount | 28-LCCC (11.43x11.43) |
|

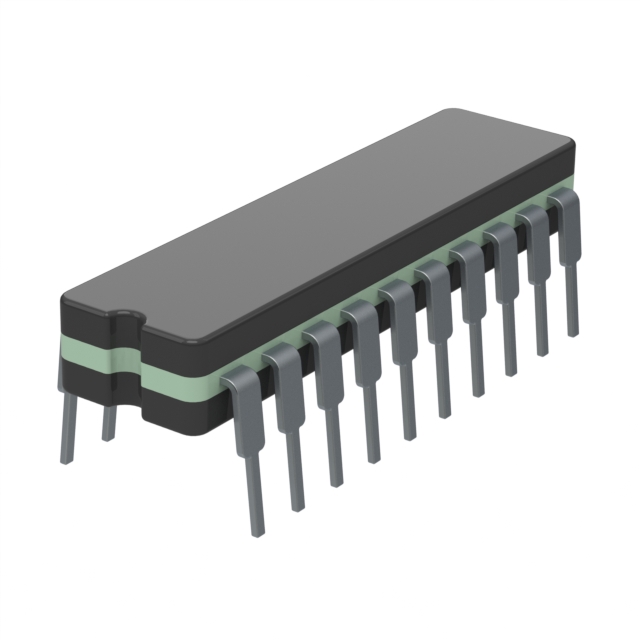

TIBPAL16L8-30MJLOW-POWER HIGH-PERFORMANCE IMPAC |
4,765 | - |
|
Datasheet | - | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
JM38510/50504BLAHIGH-PERFORMANCE IMPACT PAL CIRC |
2,929 | - |
|
Datasheet | IMPACT-X™ PAL® | 24-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 20 ns | Through Hole | 24-CDIP |
|

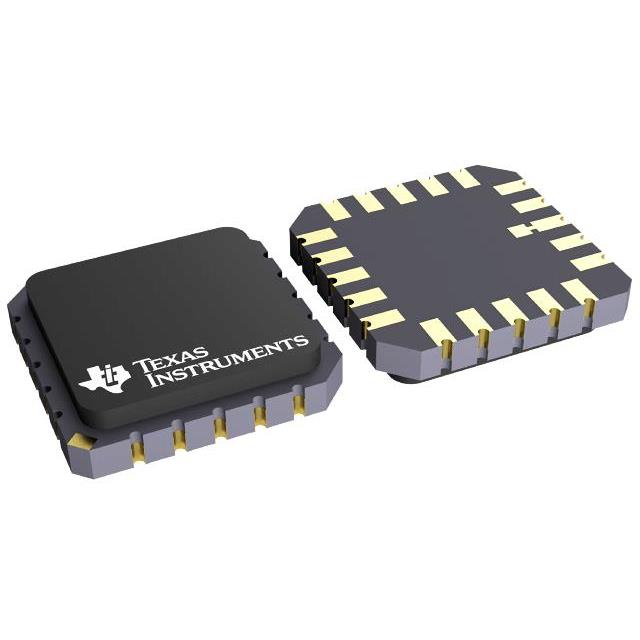

PAL16L8AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
3,349 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
PAL16L8AMJBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,959 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16R6AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
3,750 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | 6 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
TIBPAL16L8-30MJBLOW-POWER HIGH-PERFORMANCE IMPAC |
4,874 | - |
|
Datasheet | - | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16L8A-2MJSTANDARD HIGH-SPEED PAL CIRCUITS |
4,119 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | - | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
PLDs (Programmable Logic Device) FAQ
Common questions about filtering, comparing and sourcing PLDs (Programmable Logic Device) components.
How can I narrow the PLDs (Programmable Logic Device) selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific PLDs (Programmable Logic Device) part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
