PLDs (Programmable Logic Device)
Browse available PLDs (Programmable Logic Device) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Number of Macrocells | Voltage - Input | Speed | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GAL22V10D-20LPIIC PLD 10MC 20NS 24DIP |
2,486 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | 20 ns | Through Hole | 24-PDIP |
|
|
GAL22V10D-25LJIIC PLD 10MC 25NS 28PLCC |
1,987 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 25 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-25LPIC CPLD 10MC 25NS 24DIP |
1,475 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-25LPIIC CPLD 10MC 25NS 24DIP |
4,414 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-25QPIC CPLD 10MC 25NS 24DIP |
4,648 | - |
|
Datasheet | GAL®22V10 | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 10 | - | - | Through Hole | 24-PDIP |
|
|
GAL22V10D-5LJIC PLD 10MC 5NS 28PLCC |
4,999 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-7LJIC PLD 10MC 5NS 28PLCC |
2,051 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL22V10D-7LJIIC PLD 10MC 5NS 28PLCC |
2,258 | - |
|
Datasheet | GAL®22V10 | 28-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 | - | 5 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
ISPGAL22V10AV-23LNIC PLD 10MC 2.3NS 32QFN |
4,136 | - |
|
Datasheet | ispGAL™22V10 | 32-VFQFN Exposed Pad | Box | Obsolete | Not Verified | EE PLD | 10 | - | 2.3 ns | Surface Mount | 32-QFN (5x5) |
|
|
ISPGAL22V10AV-75LNIIC PLD 10MC 7.5NS 32QFN |
4,906 | - |
|
Datasheet | ispGAL™22V10 | 32-VFQFN Exposed Pad | Box | Obsolete | Not Verified | EE PLD | 10 | - | 7.5 ns | Surface Mount | 32-QFN (5x5) |
|
GAL16V8Z-12QPEE PLD, 15NS, PAL-TYPE, CMOS |
3,123 | - |
|
Datasheet | GAL®16V8 | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | EE PLD | 8 | 4.75V ~ 5.25V | 12 ns | Through Hole | 20-DIP |
|
|
GAL16V8ZD-15QPEE PLD, 15NS, PAL-TYPE, CMOS |
3,896 | - |
|
Datasheet | GAL®16V8 | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | EE PLD | 8 | 4.75V ~ 5.25V | 15 ns | Through Hole | 20-DIP |
|
PAL16R6ACNLOT PLD, 25NS, PAL-TYPE, TTL, PQC |
1,114 | - |
|
Datasheet | - | 20-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 6 | 4.75V ~ 5.25V | - | Surface Mount | 20-PLCC (9x9) |
|
|
PAL16R6BCNOT PLD, 15NS, PAL-TYPE, TTL, PDI |
4,881 | - |
|
Datasheet | - | - | Bulk | Active | Not Verified | - | - | - | - | - | - |
|
|
PAL16L8-7PCOT PLD, 10NS, TTL, PDIP20 |
4,066 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - |
|
8103610RASTANDARD HIGH-SPEED PAL CIRCUITS |
4,684 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 4 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|
|
PAL16R8AMJBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,225 | - |
|
Datasheet | PAL® | 20-CDIP (0.300", 7.62mm) | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Through Hole | 20-CDIP |
|

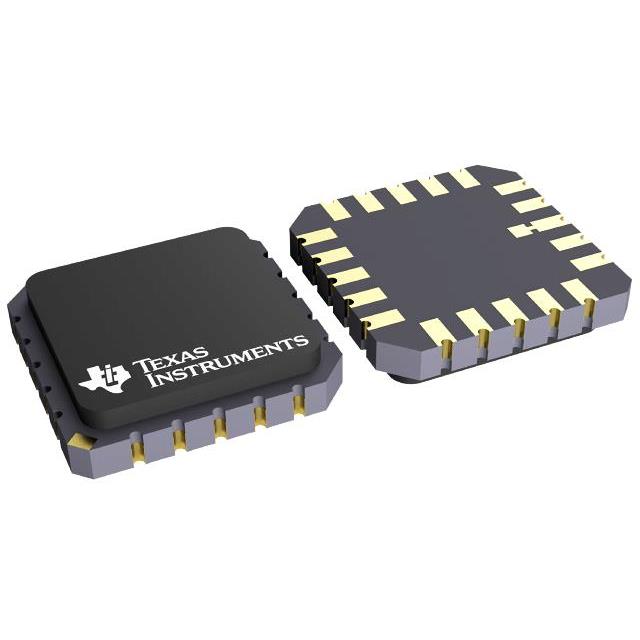

TIBPAL16L8-30MFKBLOW-POWER HIGH-PERFORMANCE IMPAC |
4,073 | - |
|
Datasheet | - | 20-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
|
TIBPAL16L8-20MWBHIGH-PERFORMANCE IMPACT PAL CIRC |
4,689 | - |
|
Datasheet | IMPACT-X™ PAL® | 20-CFlatPack | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 20 ns | Surface Mount | 20-CFP |
|
PAL16R8AMFKBSTANDARD HIGH-SPEED PAL CIRCUITS |
2,227 | - |
|
Datasheet | PAL® | 20-CLCC | Tube | Active | - | PAL | 8 | 4.5V ~ 5.5V | 30 ns | Surface Mount | 20-LCCC (8.89x8.89) |
PLDs (Programmable Logic Device) FAQ
Common questions about selecting, comparing and sourcing PLDs (Programmable Logic Device) components through Winsun (HK) Electronics.
What should I check when selecting PLDs (Programmable Logic Device) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PLDs (Programmable Logic Device) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PLDs (Programmable Logic Device) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PLDs (Programmable Logic Device) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
