Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS5040-ASST SSOP16 LF T&RDPROTARY ENCODER MAGNETIC 512PPR |
16,545 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | 512 | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
.jpg "AS5311-ATST-500")
|
AS5311-ATST-500ROTARY ENCODER MAGNETIC |
1,593 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 3.3V, 5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AEAT-8800-Q24ROTARY ENCODER MAGNETIC 4096PPR |
2,565 | - |
|
Datasheet | - | Tube | Active | Not Verified | Magnetic | SSI | 4096 | 5.6V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
291V1022F624ABROTARY ENCODER OPTICAL 6PPR |
1,891 | - |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AS5045-ASSTROTARY ENCODER MAGNETIC |
6,818 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5145B-HSST SSOP16 LF T&RDPROTARY ENCODER MAGNETIC 1024PPR |
1,946 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | 4096 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
ENCOS16D2S65CROTARY ENCODER OPTICAL 16PPR |
429 | - |
|
Datasheet | ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 16 | 5V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|

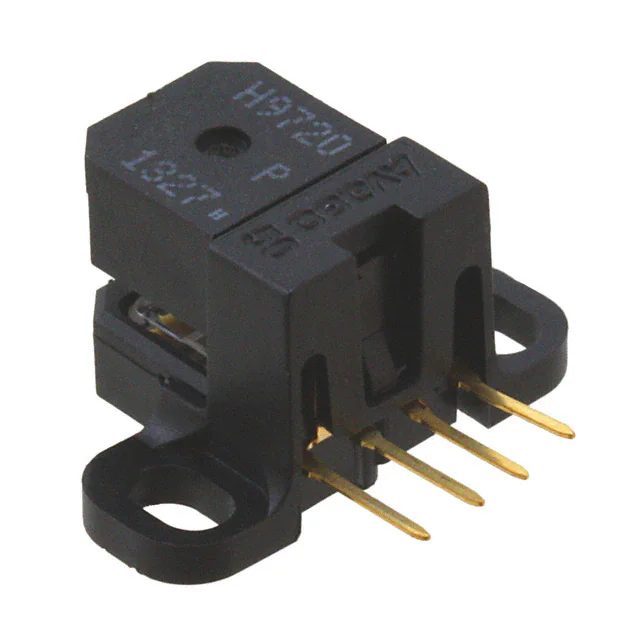

HEDS-9720#P50ROTARY ENCODR OPTICAL 150 LPI |
1,136 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 150 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

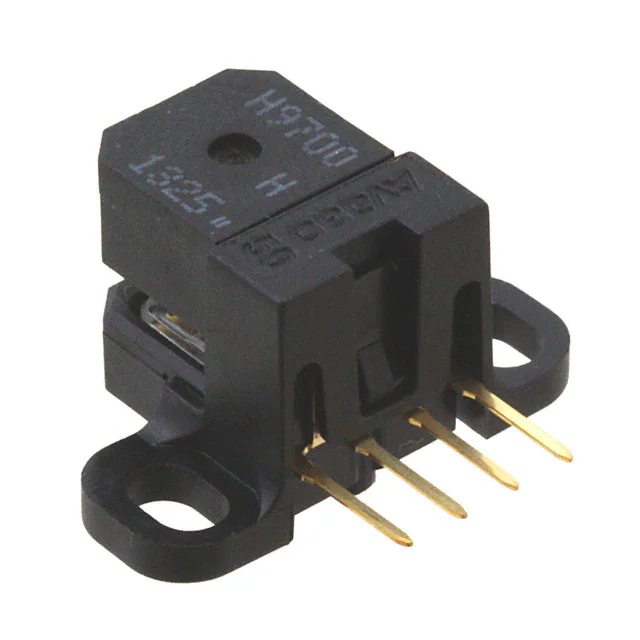

HEDS-9700#H50ROTARY ENCODER OPTICAL 400PPR |
493 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-6600-T16ROTARY ENCODER MAGNETIC |
4,113 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
EM14C0D-E24-L064SROTARY ENCODER OPTICAL 64PPR |
209 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
25LB22-GROTARY ENCODER MECHANICAL 16PPR |
111 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
C14D32P-A3ROTARY ENCODER OPTICAL 32PPR |
630 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EM14A0D-C24-L064SROTARY ENCODER OPTICAL 64PPR |
295 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16P-C3ROTARY ENCODER OPTICAL 16PPR |
278 | - |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
26ASD22-01-1-AJSROTARY ENCODER MECHANICAL 16PPR |
2,375 | - |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 16 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
26ASD45-01-1-AJSROTARY ENCODER MECHANICAL 8PPR |
110 | - |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | BCD (Adjusted) | 8 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EM14A1D-C24-L032SROTARY ENCODER OPTICAL 32PPR |
317 | - |
|
Datasheet | EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT10E2-VKIT, AMT10E2, INCREMENTAL ENCODE |
183 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AMT10E3-VKIT, AMT10E3, INCREMENTAL ENCODE |
154 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
