Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

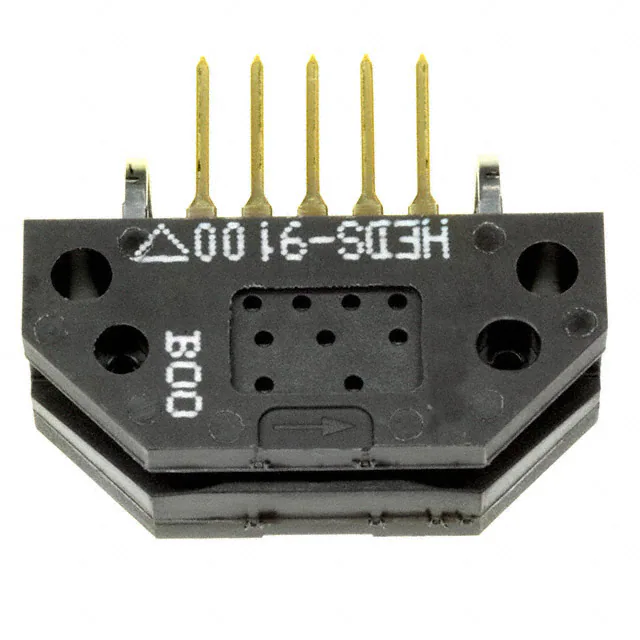

HEDS-9100#B00ROTARY ENCODER OPTICAL 1000PPR |
984 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDR-5421-EP111ROTARY ENCODER OPTICAL 200PPR |
1,178 | - |
|
Datasheet | HEDR | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
AMT133S-VKIT, AMT133S, INCREMENTAL ENCODE |
113 | - |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
AMT13A2S-VKIT, AMT13A2S-V INCREMENTAL ENCO |
221 | - |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
|
AMT13A3Q-VKIT, AMT13A3Q-V INCREMENTAL ENCO |
232 | - |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Quadrature Line Driver (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
61C11-01-08-01ROTARY ENCODER OPTICAL 32PPR |
108 | - |
|
Datasheet | 61C | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
ES14A0D-E28-L064NROTARY ENCODER OPTICAL 64PPR |
287 | - |
|
Datasheet | ES14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | Shaft | No | No | Panel Mount | User Selectable | PC Pin | 100M | - | - |
|

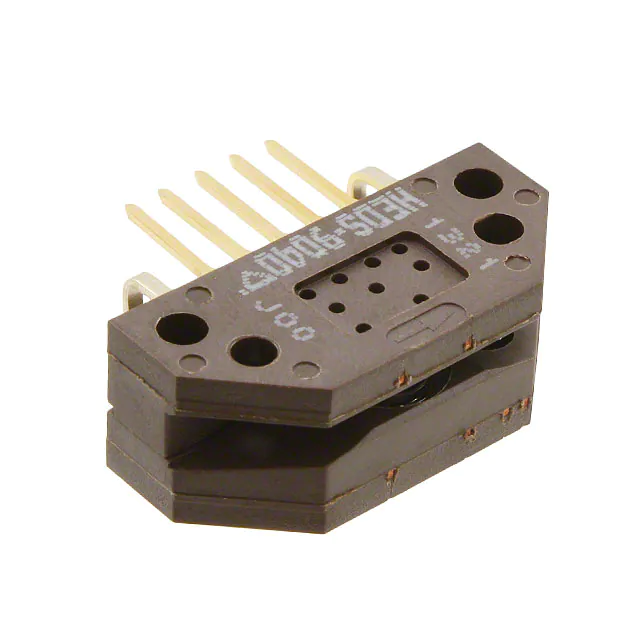

HEDS-9040#J00ROTARY ENCODER OPTICAL 1024PPR |
352 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

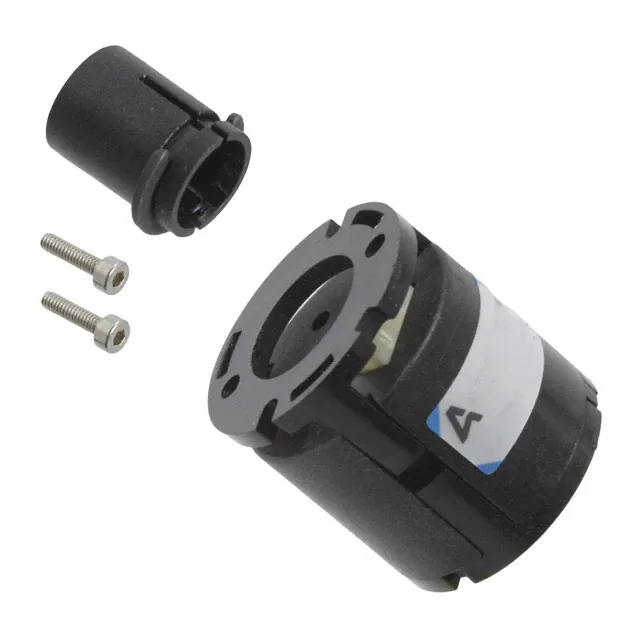

AEAT-6010-A06ROTARY ENCODER MAGNETIC 1024PPR |
554 | - |
|
Datasheet | AEAT-60xx | Bulk | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 6mm Dia Round End | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
EMS22Q51-B28-LS4ROTARY ENCODER MAGNETIC 256PPR |
4,003 | - |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|

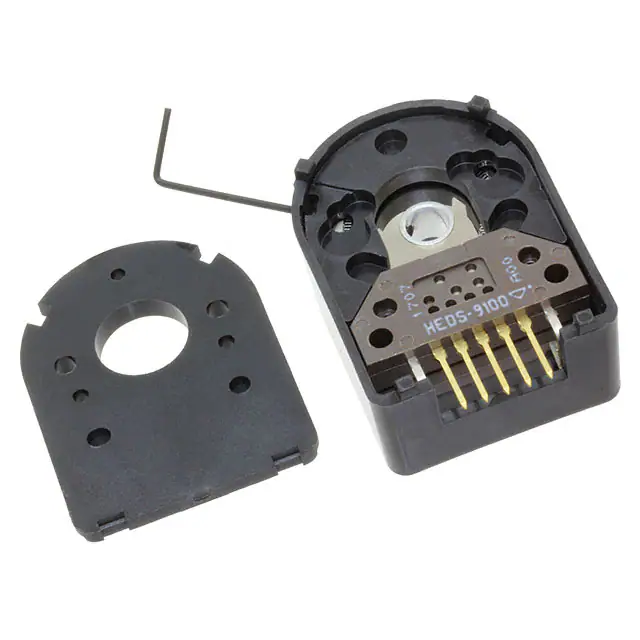

HEDS-5505#A14ROTARY ENCODER OPTICAL 500PPR |
319 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#I06ROTARY ENCODER OPTICAL 512PPR |
219 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A13ROTARY ENCODER OPTICAL 500PPR |
193 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

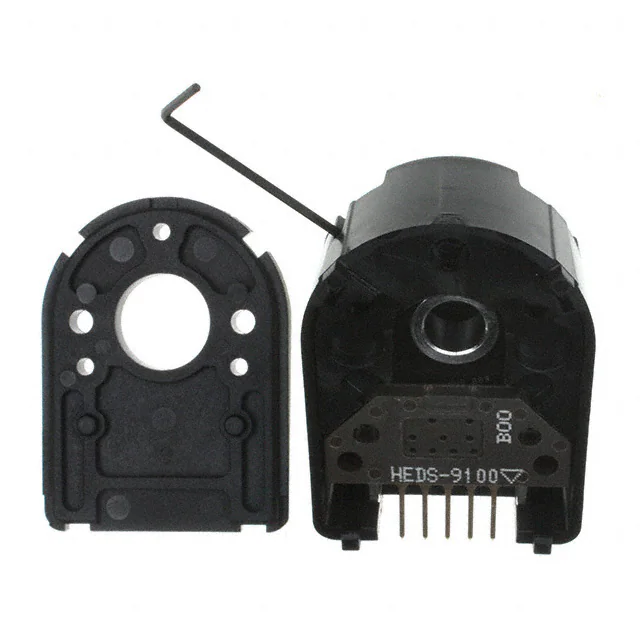

HEDM-5500#B06ROTARY ENCODER OPTICAL 1000PPR |
4,255 | - |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDL-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
2,959 | - |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
62S15-M0-PHROTARY ENCODER OPTICAL 24PPR |
3,045 | - |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

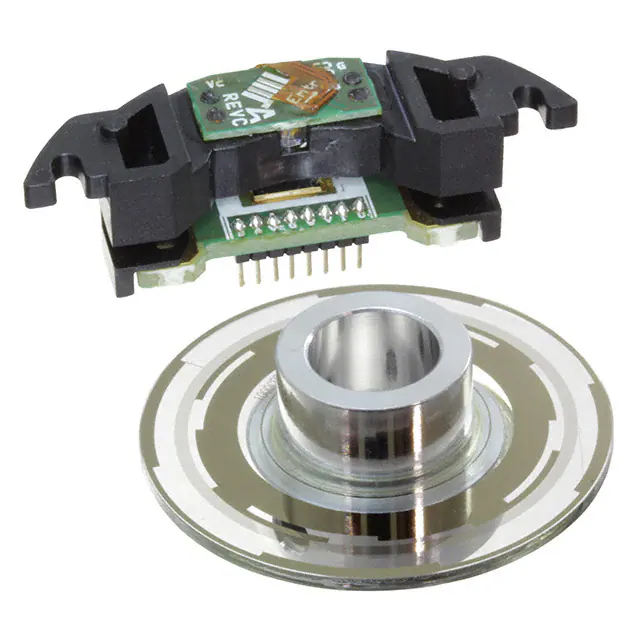

AEDB-9340-B13CROTARY ENCODER OPTICAL 1000PPR |
3,547 | - |
|
Datasheet | AEDB-9340 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
ENT1D-D28-L00100LROTARY ENCODER OPTICAL 100PPR |
4,189 | - |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
ENT1J-D28-L00100LROTARY ENCODER OPTICAL 100PPR |
3,202 | - |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|

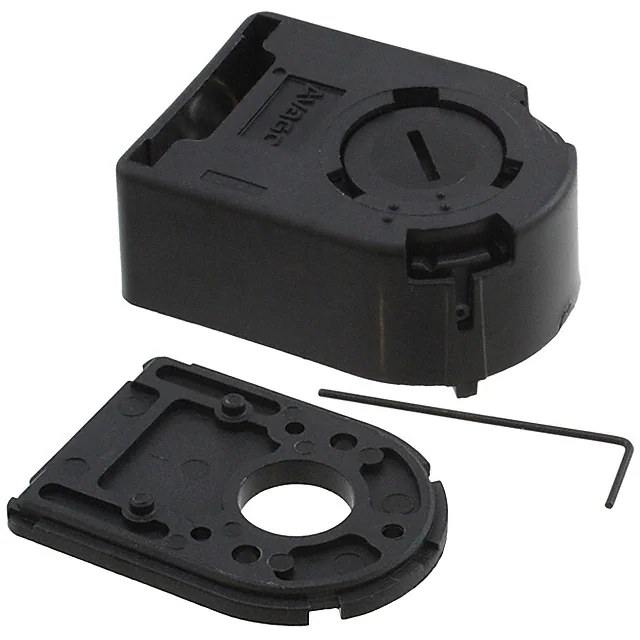

HEDS-5540#H14ROTARY ENCODER OPTICAL 400PPR |
582 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
