Encoders
Use the filters and product table below to compare Encoders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ11BR3E-25FA1-12CENCODER ROTARY 11MM HORIZ 12PPR |
2,409 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACZ11BR3E-25KQA1-12CENCODER ROTARY 11MM HORIZ 12PPR |
4,071 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACZ11BR4E-15FD1-20ENCODER ROTARY 11MM VERT 20PPR |
4,131 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACZ11BR4E-30FD1-20CENCODER ROTARY 11MM VERT 20PPR |
3,439 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACZ11BR5E-20FD1-30C15PENCODER ROTARY 11MM VERT 15PPR |
3,806 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AEC11BR2E-25SD1-20CROTARY ENCODER MECHANICAL 20PPR |
1,297 | - |
|
Datasheet | - | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | 5V | 6mm Dia Slotted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
ACZ16BR2E-25FD1-24CROTARY ENCODER INCREMENT 24PPR |
4,518 | - |
|
Datasheet | ACZ16 | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

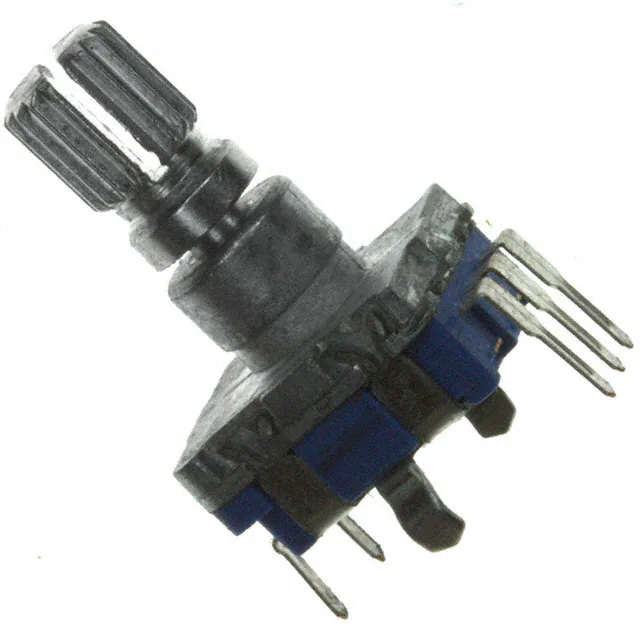

ACZ11BR4E-15KQD1-20CROTARY ENCODER INCREMENT 20PPR |
2,393 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
ACZ09BR1E-15FD1-20C10PROTARY ENCODER INCREMENT 10PPR |
4,597 | - |
|
Datasheet | ACZ09 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 10 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

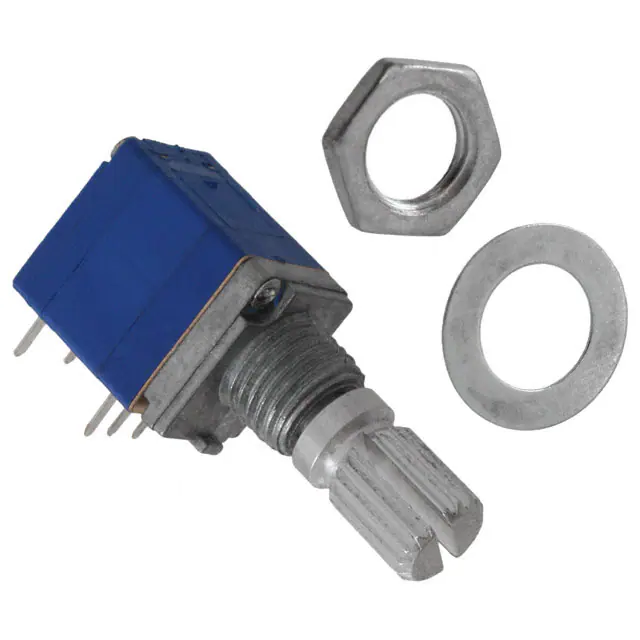

ACZ09BR1E-15KQA1-20CROTARY ENCODER INCREMENT 20PPR |
4,074 | - |
|
Datasheet | ACZ09 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
Encoders FAQ
Common questions about filtering, comparing and sourcing Encoders components.
How can I narrow the Encoders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Encoders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
