Encoders
Use the filters and product table below to compare Encoders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

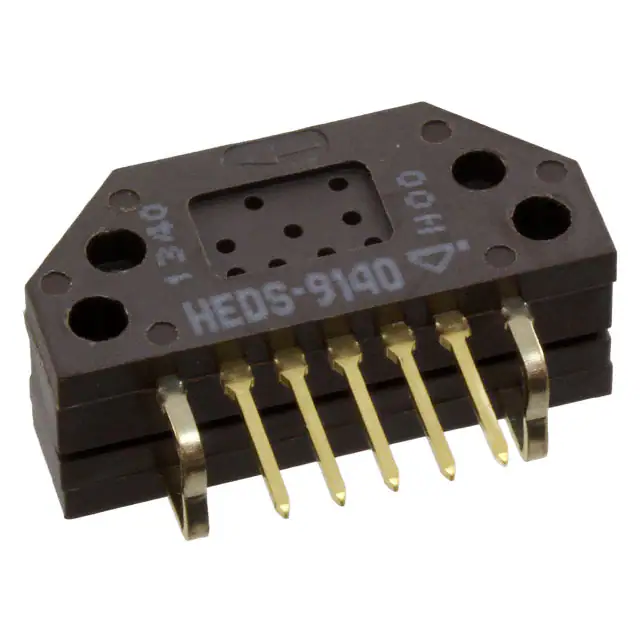

HEDS-9140#H00ROTARY ENCODER OPTICAL 400PPR |
1,934 | - |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

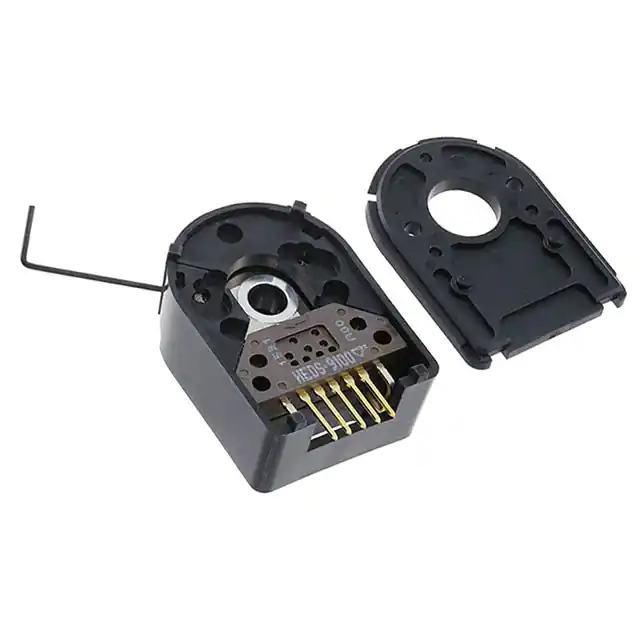

HEDS-5500#A12ROTARY ENCODER OPTICAL 500PPR |
4,966 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AR18-S11ROTARY ENCODER OPTICAL PROG |
4,116 | - |
|
Datasheet | AR18 | Bulk | Active | Not Verified | Optical | Digital | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

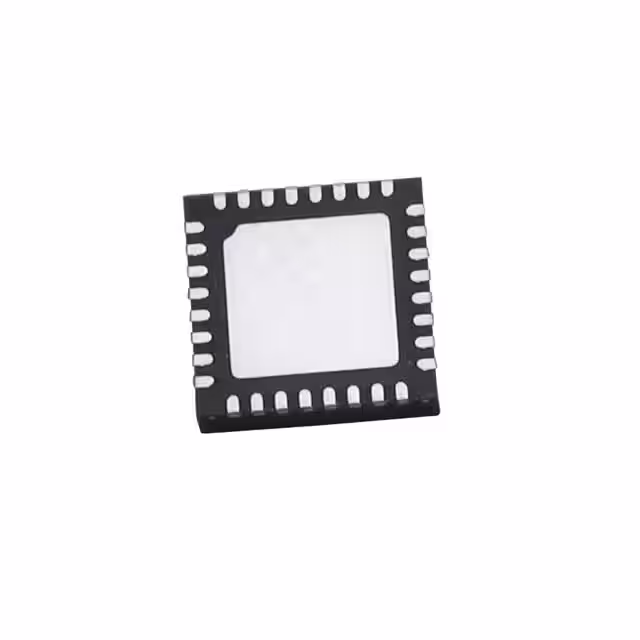

AEAT-9966-Q3218B DUAL MAG ENC MULTIPLE AXIS T |
2,663 | - |
|
Datasheet | * | Tube | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AEDS-9340-L00ROTARY ENCODER OPTICAL 1250PPR |
2,641 | - |
|
Datasheet | AEDS-9340 | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1250 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
|
|
HEDB-9100-C12ROTARY ENCODER OPTICAL 100PPR |
4,154 | - |
|
Datasheet | HEDB-9100 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
HEDS-9140-B00ROTARY ENCODER OPTICAL 1000PPR |
3,126 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5540-B11ROTARY ENCODER OPTICAL 1000PPR |
4,456 | - |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDL-5810-Z06ROTARY ENCODER OPTICAL 5000PPR |
3,537 | - |
|
Datasheet | AEDL-5 | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEAT-9988M-D30MAG ABS 23BITS SSI SPI RS485 TUB |
1,551 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Encoders FAQ
Common questions about filtering, comparing and sourcing Encoders components.
How can I narrow the Encoders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Encoders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
