Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E30S4-500-3-N-5ENCODER 30MM 500PPR 5VDC |
4,990 | - |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 500 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40S6-100-3-V-24ENCODER 40MM 100PPR 12-24VDC |
1,697 | - |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S8-100-3-T-24ENCODER 40MM 100PPR 12-24VDC |
4,516 | - |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-100-3-V-24ENCODER 50MM 100PPR 12-24VDC |
4,489 | - |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

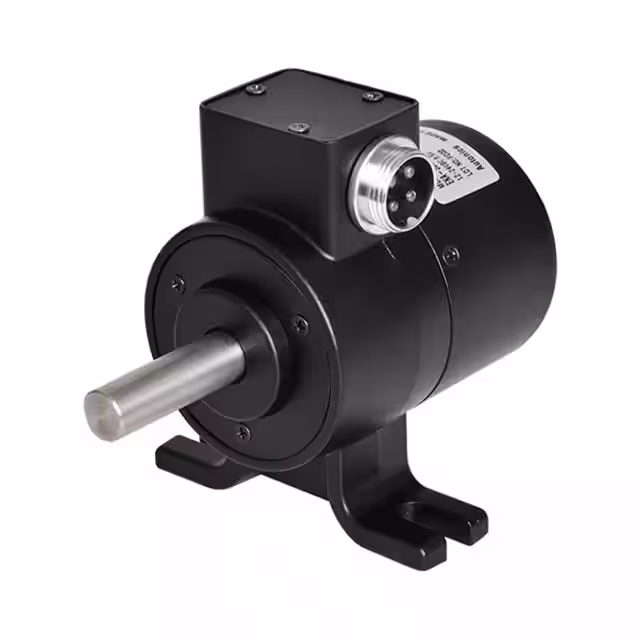

ENA-500-2-N-24ENCODER 10 SHAFT 500PPR 12-24VDC |
3,898 | - |
|
Datasheet | ENA | Box | Active | Not Verified | Incremental | NPN - Open Collector | 500 | 12V ~ 24V | 10mm Dia Round End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
ENA-360-3-N-24ENCODER 10 SHAFT 360PPR 12-24VDC |
1,025 | - |
|
Datasheet | ENA | Box | Active | Not Verified | Incremental | NPN - Open Collector | 360 | 12V ~ 24V | 10mm Dia Round End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
E40H8-100-3-T-5ENCODER 40MM 100PPR 5VDC |
4,432 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-1024-3-V-24ENCODER 40MM 1024PPR 12-24VDC |
2,084 | - |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 1024 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H8-60-3-N-24ENCODER 40MM 60PPR 12-24VDC |
4,123 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 60 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-360-3-V-5ENCODER 40MM 360PPR 5VDC |
1,365 | - |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 360 | 5V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENC-1-3-N-24ENCODER WHEEL 1PPR 12-24VDC |
1,455 | - |
|
Datasheet | ENC | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1 | 12V ~ 24V | - | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-40-3-V-24ENCODER 40MM 40PPR 12-24VDC |
2,179 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Voltage | 40 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-100-3-V-24ENCODER 40MM 100PPR 12-24VDC |
1,534 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-100-6-L-5ENCODER 50MM 100PPR 5VDC |
4,131 | - |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 100 | 5V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40HB8-800-3-T-24ENCODER 40MM 800PPR 12-24VDC |
3,053 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 800 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40HB8-1024-3-N-24ENCODER 40MM 1024PPR 12-24VDC |
1,872 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1024 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E58SC10-100-3-V-24ENCODER 58MM 100PPR 12-24VDC |
3,202 | - |
|
Datasheet | E58 | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E58SC10-500-3-T-5ENCODER 58MM 500PPR 5VDC |
1,395 | - |
|
Datasheet | E58 | Box | Active | Not Verified | Incremental | Totem Pole | 500 | 5V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-1000-3-T-5ENCODER 50MM 1000PPR 5VDC |
4,371 | - |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 1000 | 5V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H8-3600-3-N-24ENCODER 40MM 3600PPR 12-24VDC |
4,669 | - |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 3600 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
