FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP8K1FRATBMOSFET 2N-CH 30V 5A 8SOP |
2,467 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 5A (Ta) | 51mOhm @ 5A, 10V | 2.5V @ 1mA | 5.5nC @ 5V | 230pF @ 10V | 1.4W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
|
SP8J2TBMOSFET 2P-CH 30V 4.5A 8-SOIC |
1,337 | - |
|
Datasheet | * | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SH8K10SGZETBMOSFET 2N-CH 30V 7A 8SOP |
2,475 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 7A (Ta), 8.5A (Ta) | 24mOhm @ 7A, 10V, 19.6mOhm @ 8.5A, 10V | 2.5V @ 1mA | 16.8nC @ 5V, 17.8nC @ 5V | 660pF @ 10V, 830pF @ 10V | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
SP8M10FRATBMOSFET N/P-CH 30V 7A 8SOP |
1,116 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate, 4V Drive | 30V | 7A (Ta), 4.5A (Ta) | 25mOhm @ 7A, 10V, 56mOhm @ 4.5A, 10V | 2.5V @ 1mA | 8.4nC @ 5V, 8.5nC @ 5V | 600pF @ 10V, 850pF @ 10V | 2W (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
|
SP8K3FRATBMOSFET 2N-CH 30V 7A 8SOP |
1,051 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 7A (Ta) | 24mOhm @ 7A, 10V | 2.5V @ 1mA | 11.8nC @ 5V | 600pF @ 10V | 1.4W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
SH8M5TB1MOSFET N/P-CH 30V 6A/7A 8SOP |
153 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 6A, 7A | 30mOhm @ 6A, 10V | 2.5V @ 1mA | 7.2nC @ 5V | 520pF @ 10V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

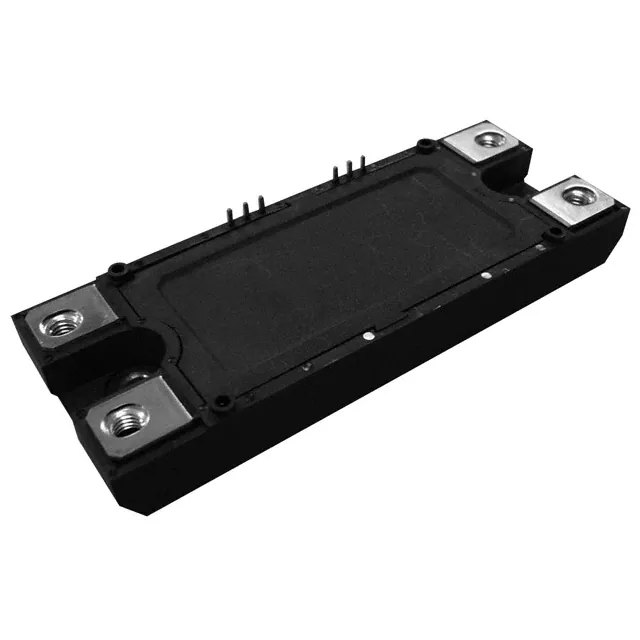

BSM080D12P2C008MOSFET 2N-CH 1200V 80A MODULE |
25 | - |
|
Datasheet | - | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 80A (Tc) | - | 4V @ 13.2mA | - | 800pF @ 10V | 600W | 175°C (TJ) | - | - | Chassis Mount | Module |
|
BSM250D17P2E004MOSFET 2N-CH 1700V 250A MODULE |
14 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 250A (Tc) | - | 4V @ 66mA | - | 30000pF @ 10V | 1800W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
BSM300D12P2E001MOSFET 2N-CH 1200V 300A MODULE |
11 | - |
|
Datasheet | - | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 300A (Tc) | - | 4V @ 68mA | - | 35000pF @ 10V | 1875W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
QH8JA1TCRMOSFET 2P-CH 20V 5A TSMT8 |
59 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | - | 2 P-Channel (Dual) | - | 20V | 5A | 38mOhm @ 5A, 4.5V | 1.2V @ 1mA | 10.2nC @ 4.5V | 720pF @ 10V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSMT8 |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
